- 69 - BIOS Setup

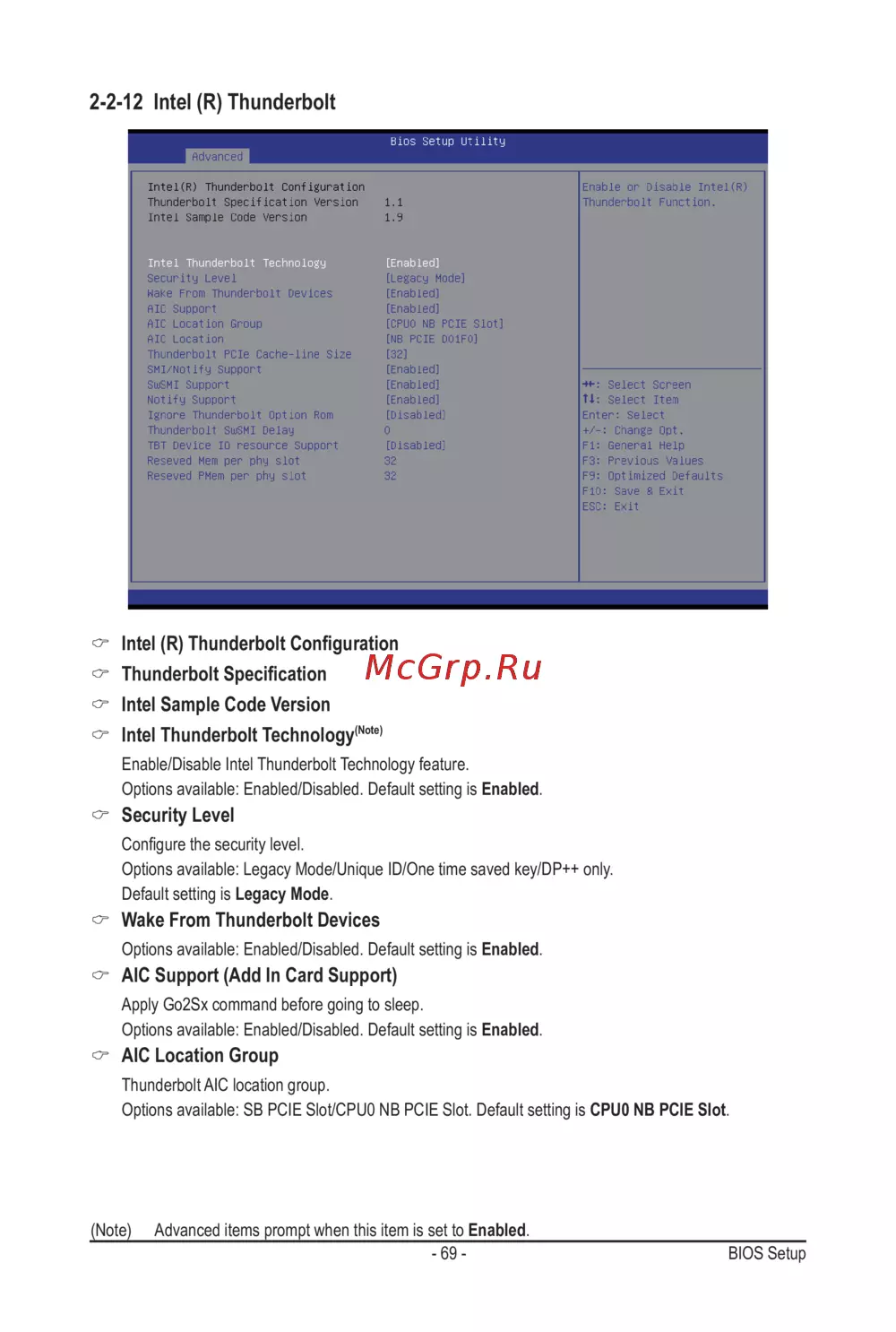

2-2-12 Intel (R) Thunderbolt

(Note) Advanced items prompt when this item is set to Enabled.

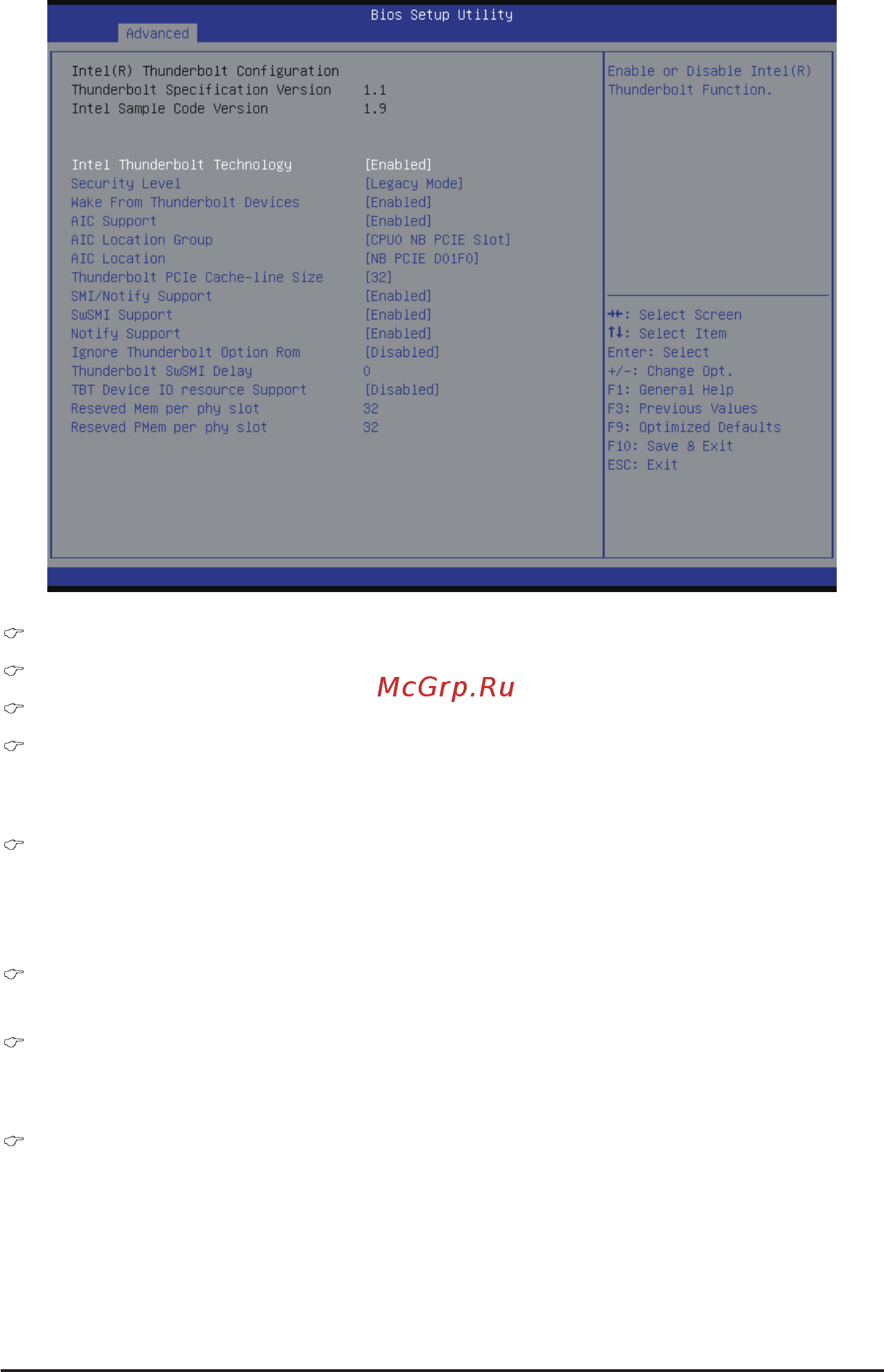

Intel (R) Thunderbolt Conguration

Thunderbolt Specication

Intel Sample Code Version

Intel Thunderbolt Technology

(Note)

Enable/Disable Intel Thunderbolt Technology feature.

Options available: Enabled/Disabled. Default setting is Enabled.

Security Level

 Congurethesecuritylevel.

Options available: Legacy Mode/Unique ID/One time saved key/DP++ only.

Default setting is Legacy Mode.

Wake From Thunderbolt Devices

Options available: Enabled/Disabled. Default setting is Enabled.

AIC Support (Add In Card Support)

Apply Go2Sx command before going to sleep.

Options available: Enabled/Disabled. Default setting is Enabled.

AIC Location Group

Thunderbolt AIC location group.

Options available: SB PCIE Slot/CPU0 NB PCIE Slot. Default setting is CPU0 NB PCIE Slot.
