Gigabyte MW70-3S0 (rev. 1.0) [32/135] F_usb2 front usb header

Hardware Installation - 32 -

1 2

13 14

PinNo. Denition

1 CLK_33M_TPM

2 P_3V3_AUX

3 LPC_RST

4 P3V3

5 LPC_LAD0

6 IRQ_SERIAL

7 LPC_LAD1

8 TPM_DET_N

9 LPC_LAD2

10 NC

11 LPC_LAD3

12 GND

13 LPC_FRAME_N

14 GND

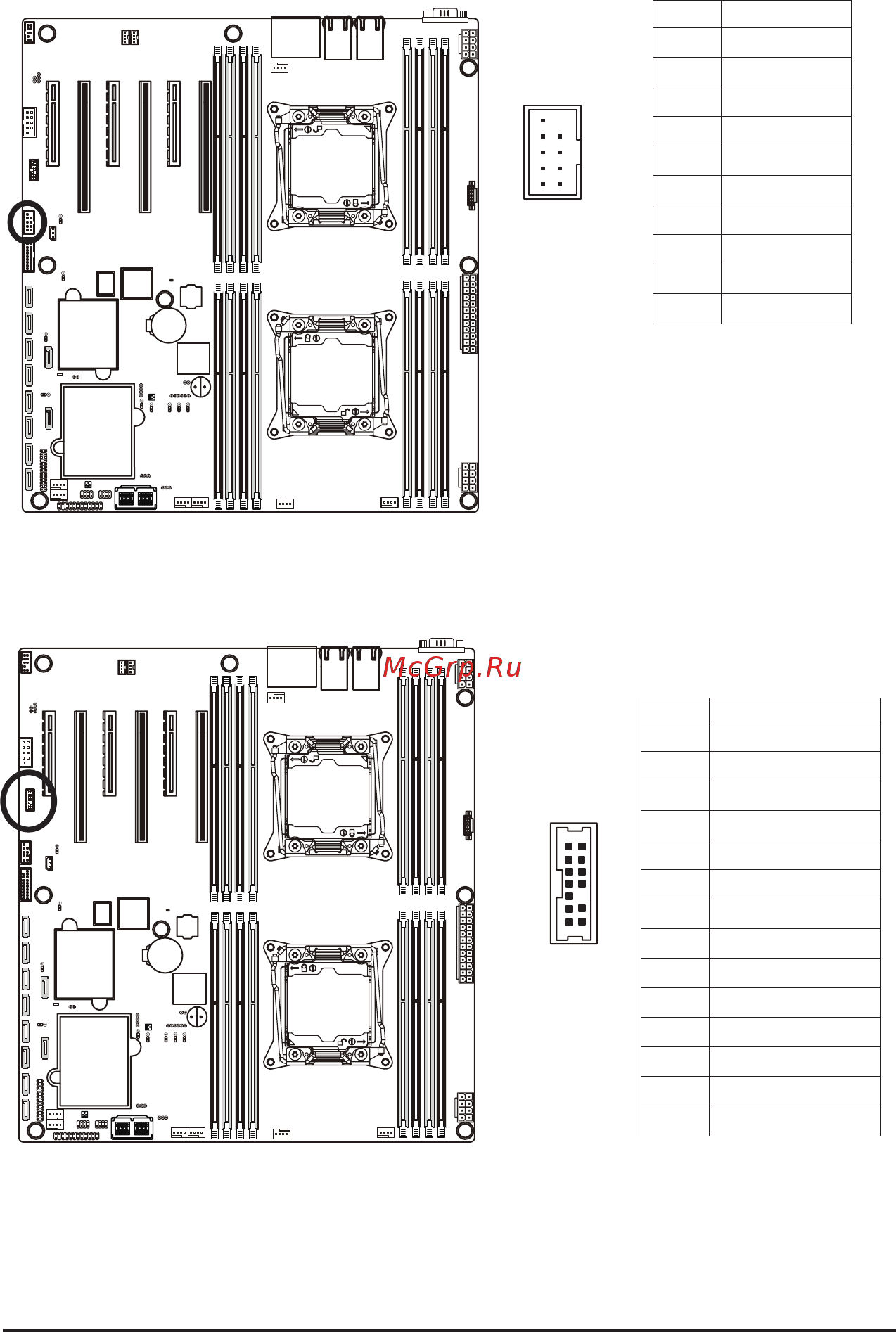

24) TPM (TPM Module Connector)

PinNo. Denition

1 Power (5V)

2 Power (5V)

3 USB DX-

4 USB DY-

5 USB DX+

6 USB DY+

7 GND

8 GND

9 No Pin

10 NC

23) F_USB2 (Front USB Header)

 TheheaderconformtoUSB2.0specication.EachUSBheadercanprovidetwoUSBportsviaan

optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer.

DEBUG

PORT

G.QBOFM

10 9

2 1
