Gigabyte MW70-3S0 (rev. 1.0) [33/135] The com header provides one serial port via an optional com port cable for purchasing the optional com port cable please contact the local dealer

- 33 - Hardware Installation

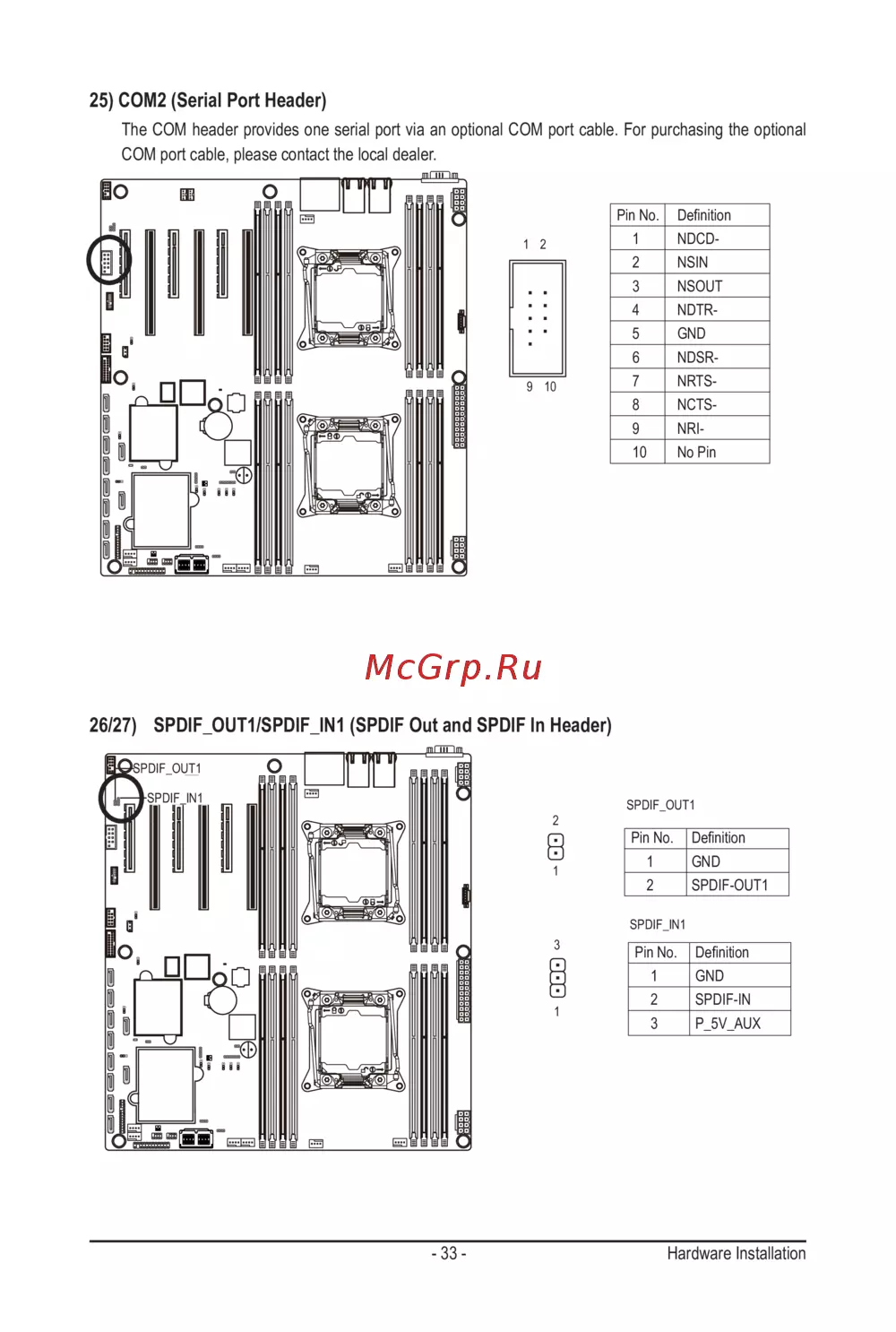

25) COM2 (Serial Port Header)

The COM header provides one serial port via an optional COM port cable. For purchasing the optional

COM port cable, please contact the local dealer.

1 2

9 10

PinNo. Denition

1 NDCD-

2 NSIN

3 NSOUT

4 NDTR-

5 GND

6 NDSR-

7 NRTS-

8 NCTS-

9 NRI-

10 No Pin

26/27) SPDIF_OUT1/SPDIF_IN1 (SPDIF Out and SPDIF In Header)

PinNo. Denition

1 GND

2 SPDIF-OUT1

PinNo. Denition

1 GND

2 SPDIF-IN

3 P_5V_AUX

SPDIF_OUT1

SPDIF_IN1

SPDIF_OUT1
