Gigabyte MW70-3S0 (rev. 1.0) [43/135] Bios_pwd clearing supervisor password jumper

- 43 - Hardware Installation

2-3 Close: BIOS recovery mode.

1-2 Close: Normal operation. (Default setting)

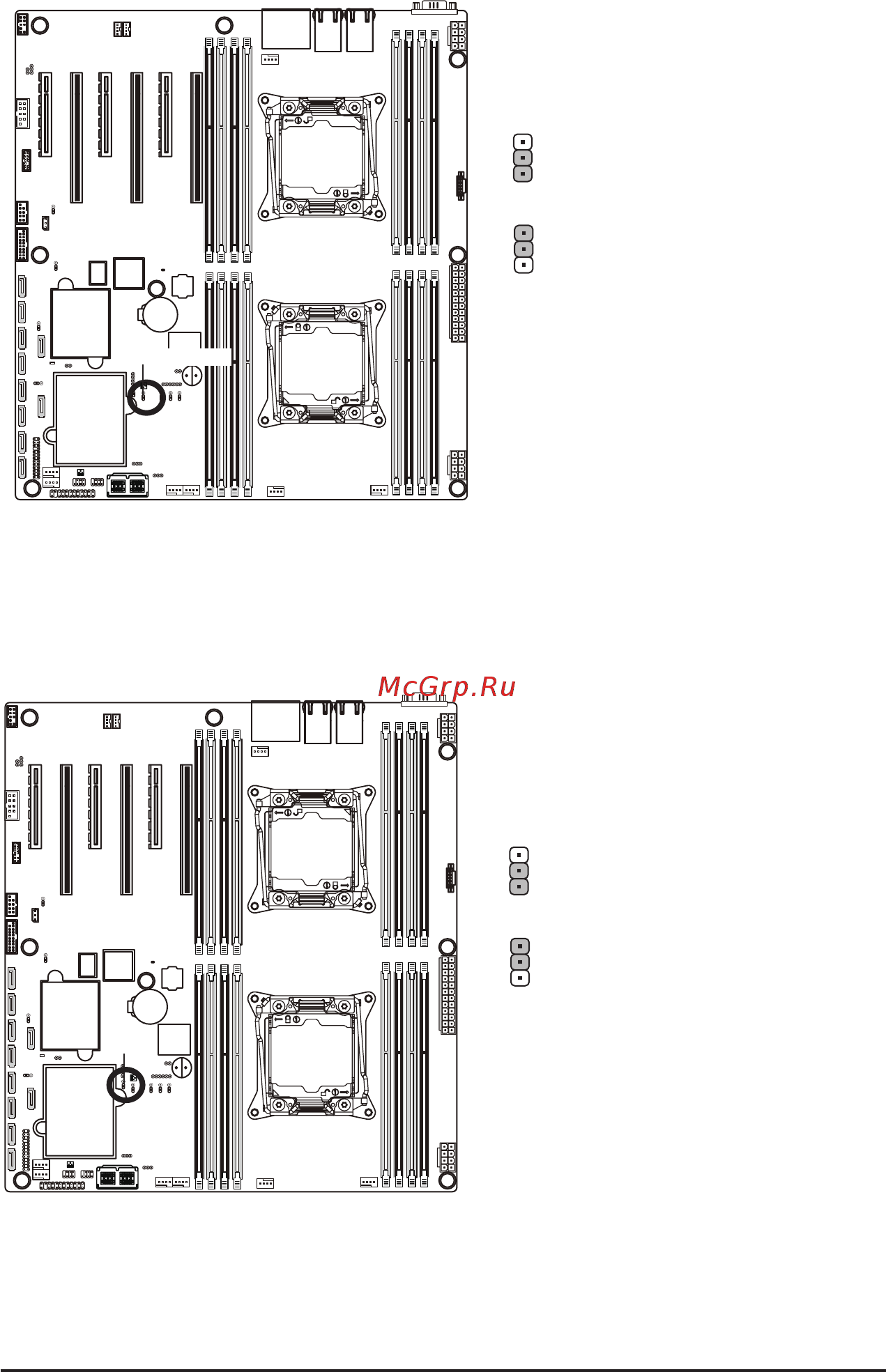

9) BIOS_RVCR (BIOS Recovery Jumper)

8) BIOS_PWD (Clearing Supervisor Password Jumper)

2-3 Close: Skip supervisor password.

1-2 Close: Normal operation. (Default setting)

BIOS_RCVR

BIOS_PWD
