- 113 - BIOS Setup

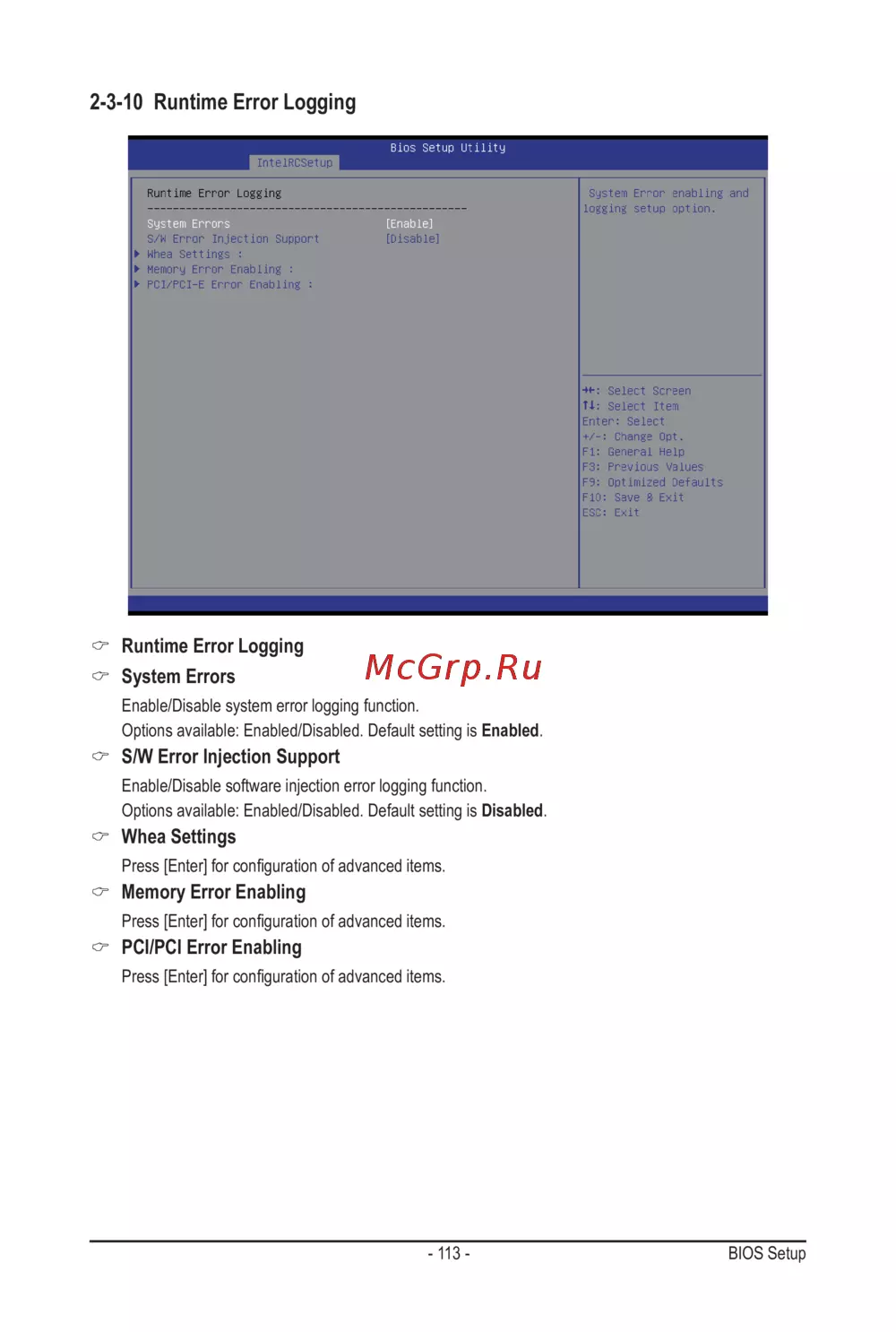

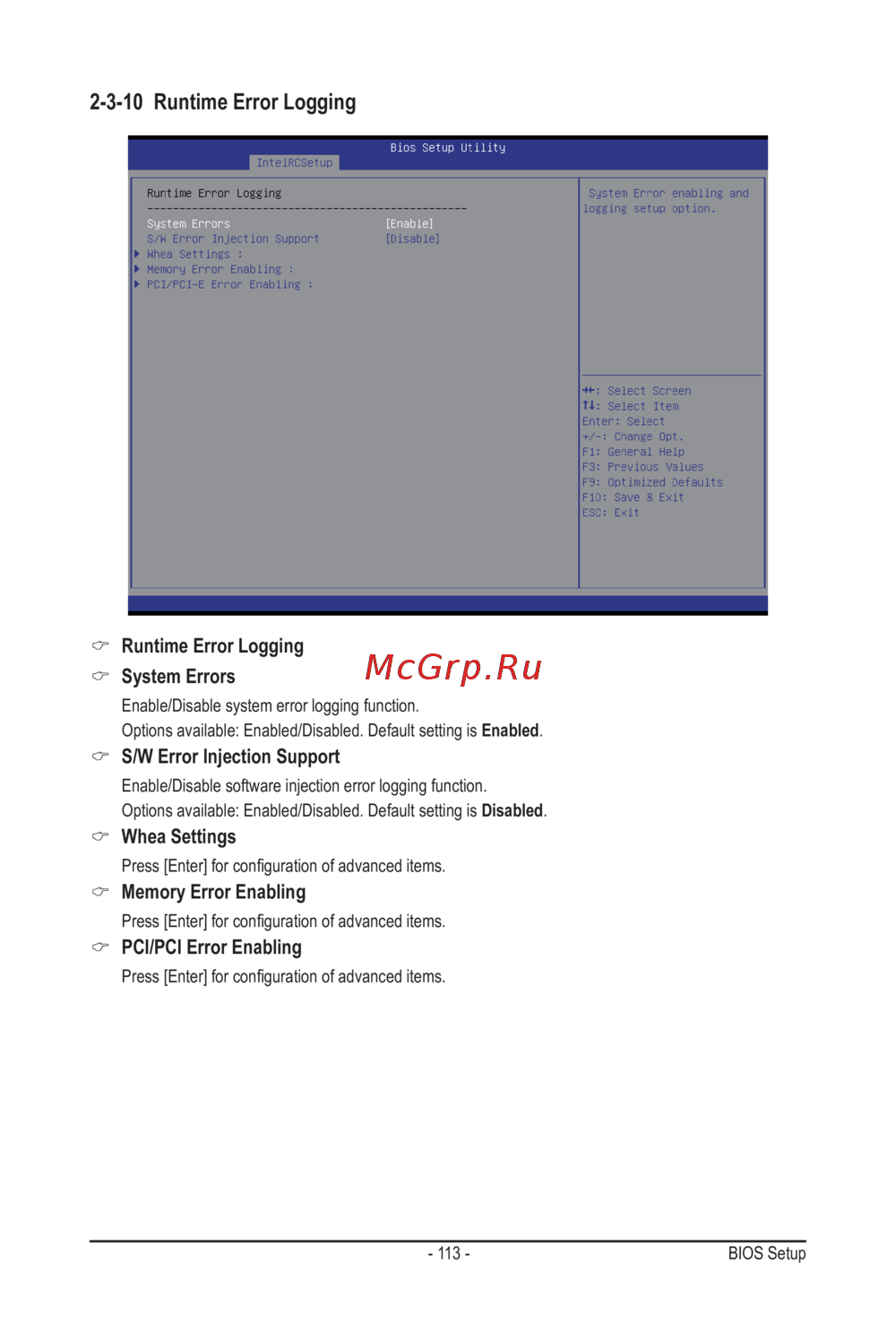

2-3-10 Runtime Error Logging

Runtime Error Logging

System Errors

Enable/Disable system error logging function.

Options available: Enabled/Disabled. Default setting is Enabled.

S/W Error Injection Support

Enable/Disable software injection error logging function.

Options available: Enabled/Disabled. Default setting is Disabled.

Whea Settings

Press[Enter]forcongurationofadvanceditems.

Memory Error Enabling

Press[Enter]forcongurationofadvanceditems.

PCI/PCI Error Enabling

Press[Enter]forcongurationofadvanceditems.
