Gigabyte MW70-3S0 (rev. 1.0) [119/135] 4 2 view smbios event log

- 119 - BIOS Setup

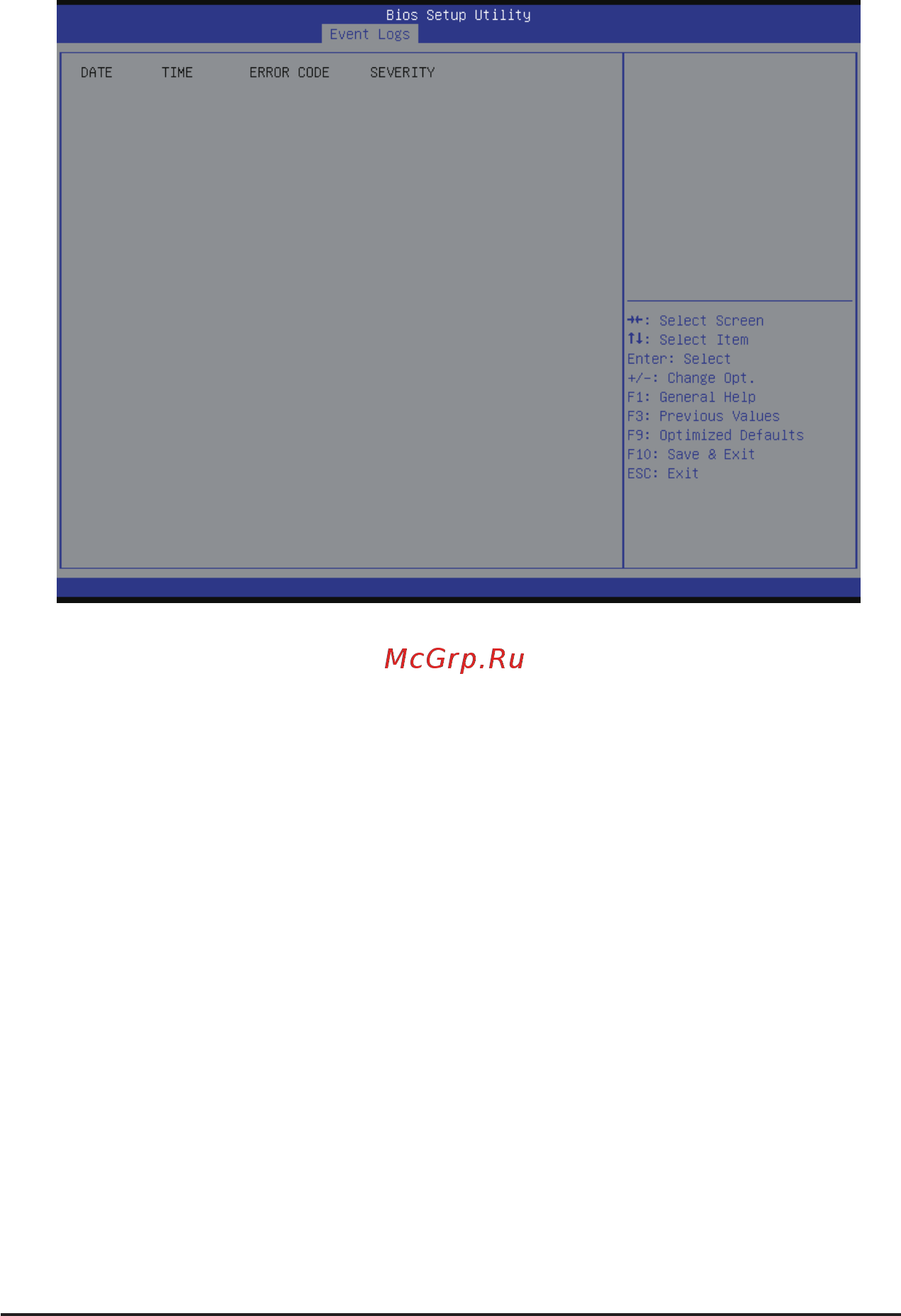

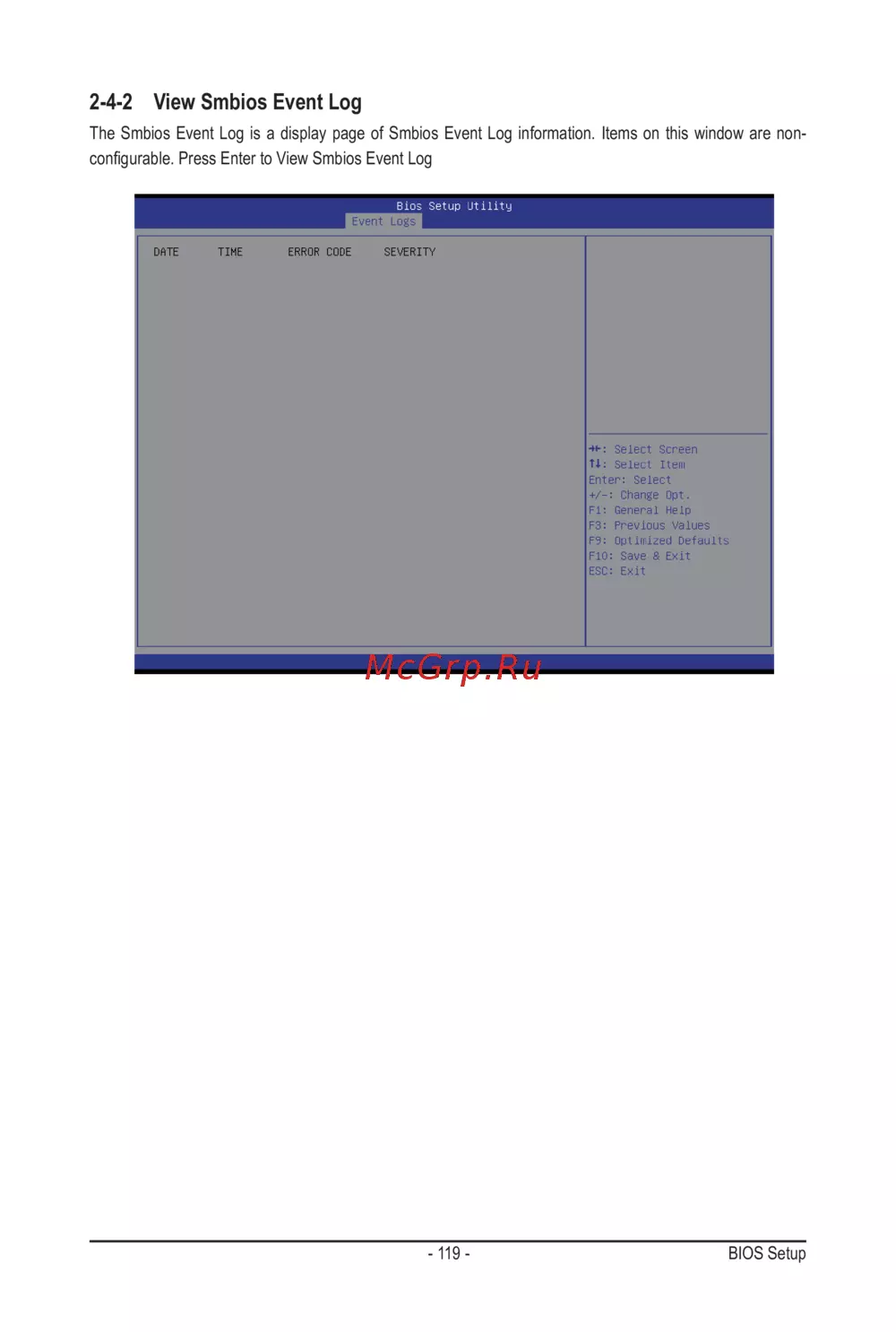

2-4-2 View Smbios Event Log

The Smbios Event Log is a display page of Smbios Event Log information. Items on this window are non-

congurable.PressEntertoViewSmbiosEventLog
