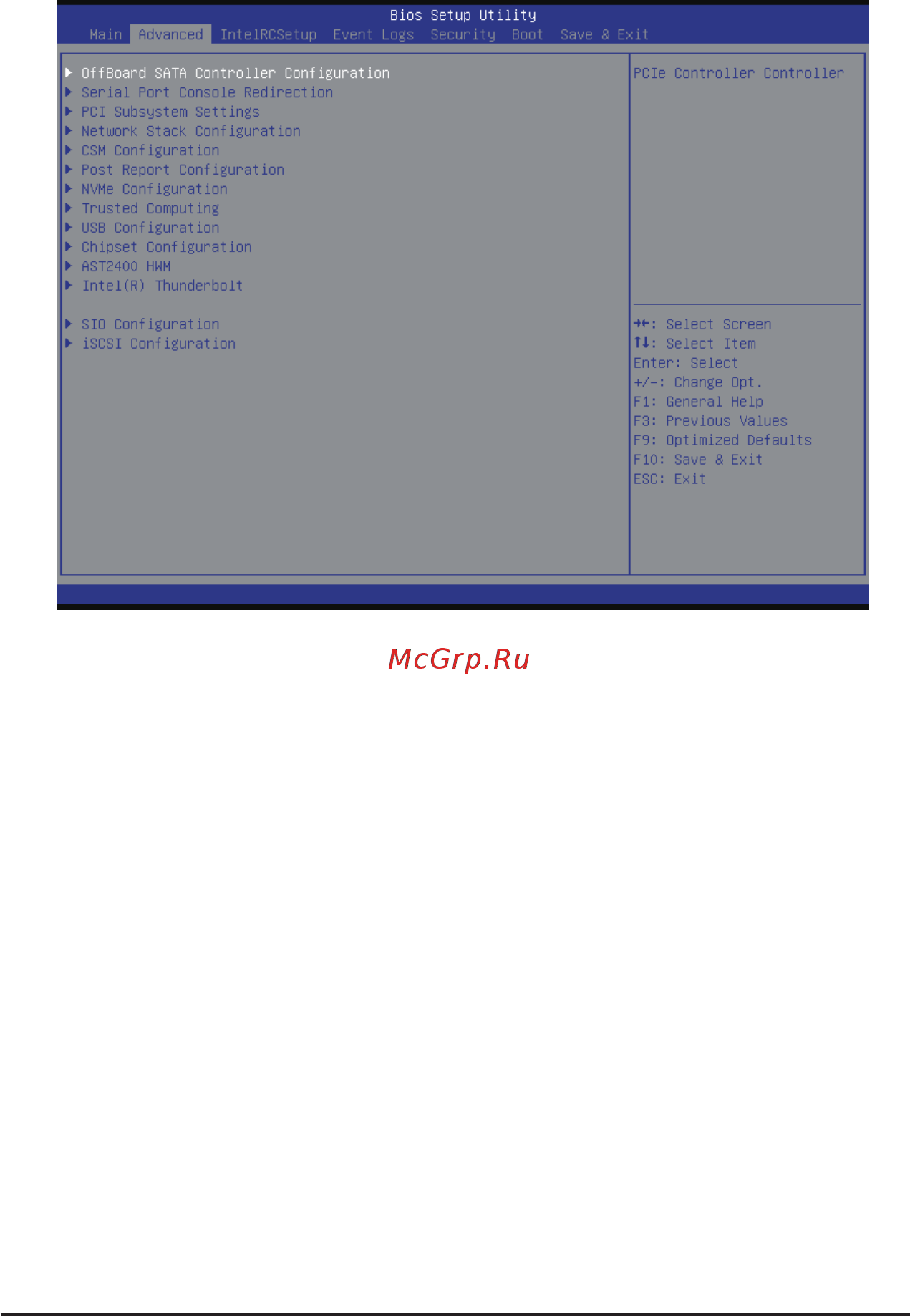

Gigabyte MW70-3S0 (rev. 1.0) [49/135] 2 advanced menu

- 49 - BIOS Setup

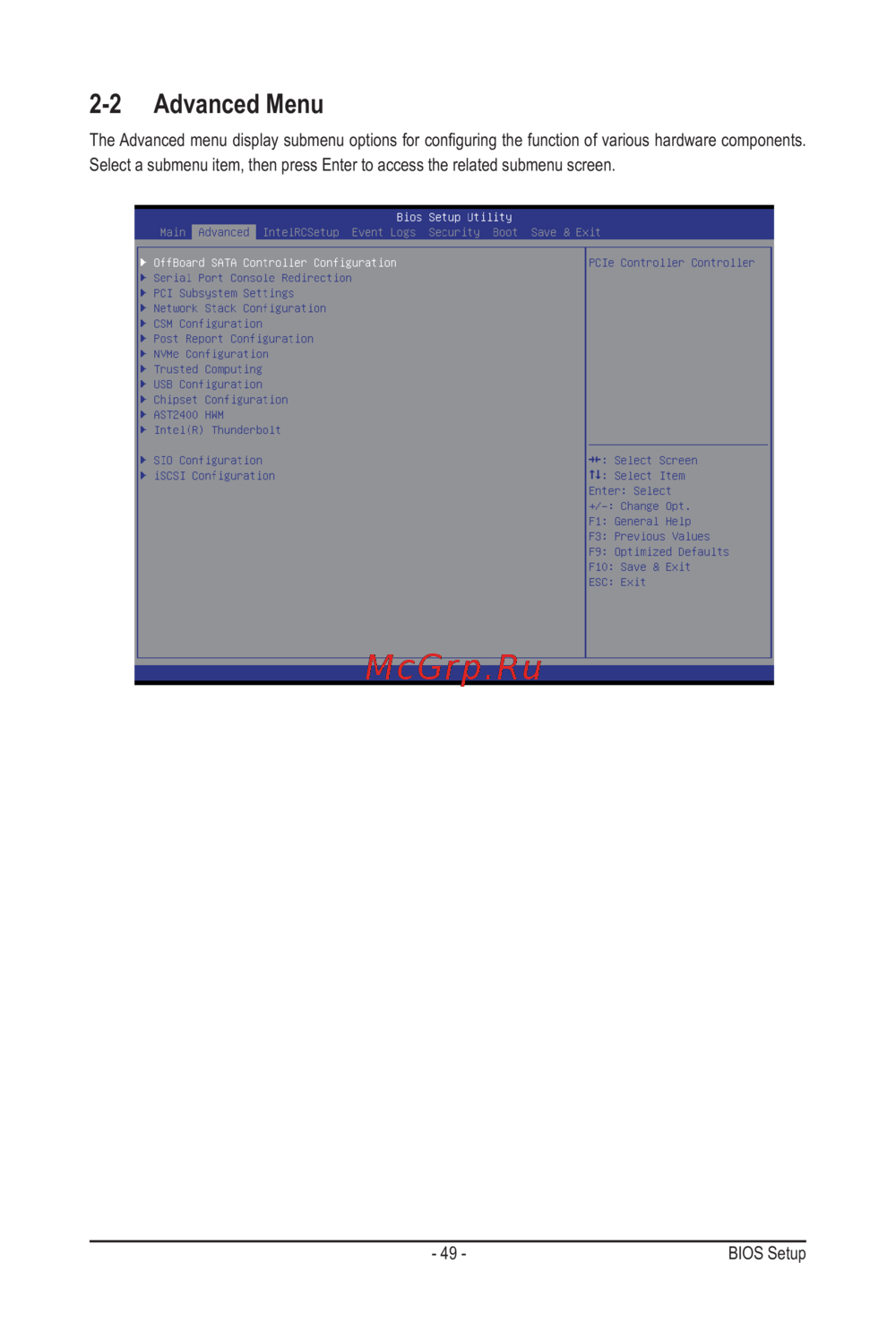

2-2 Advanced Menu

TheAdvancedmenudisplaysubmenuoptionsforconguringthefunctionofvarioushardwarecomponents.

Select a submenu item, then press Enter to access the related submenu screen.
