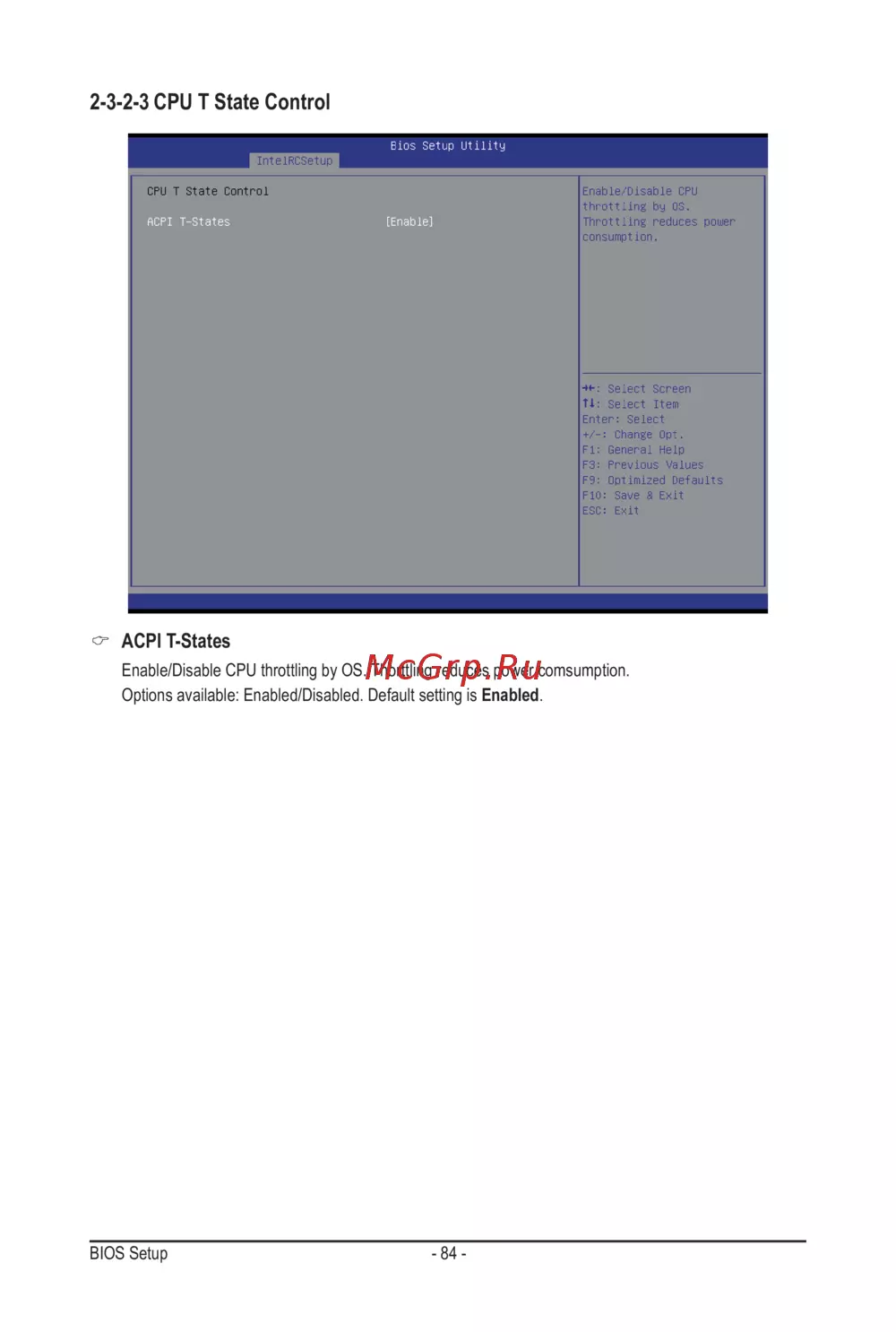

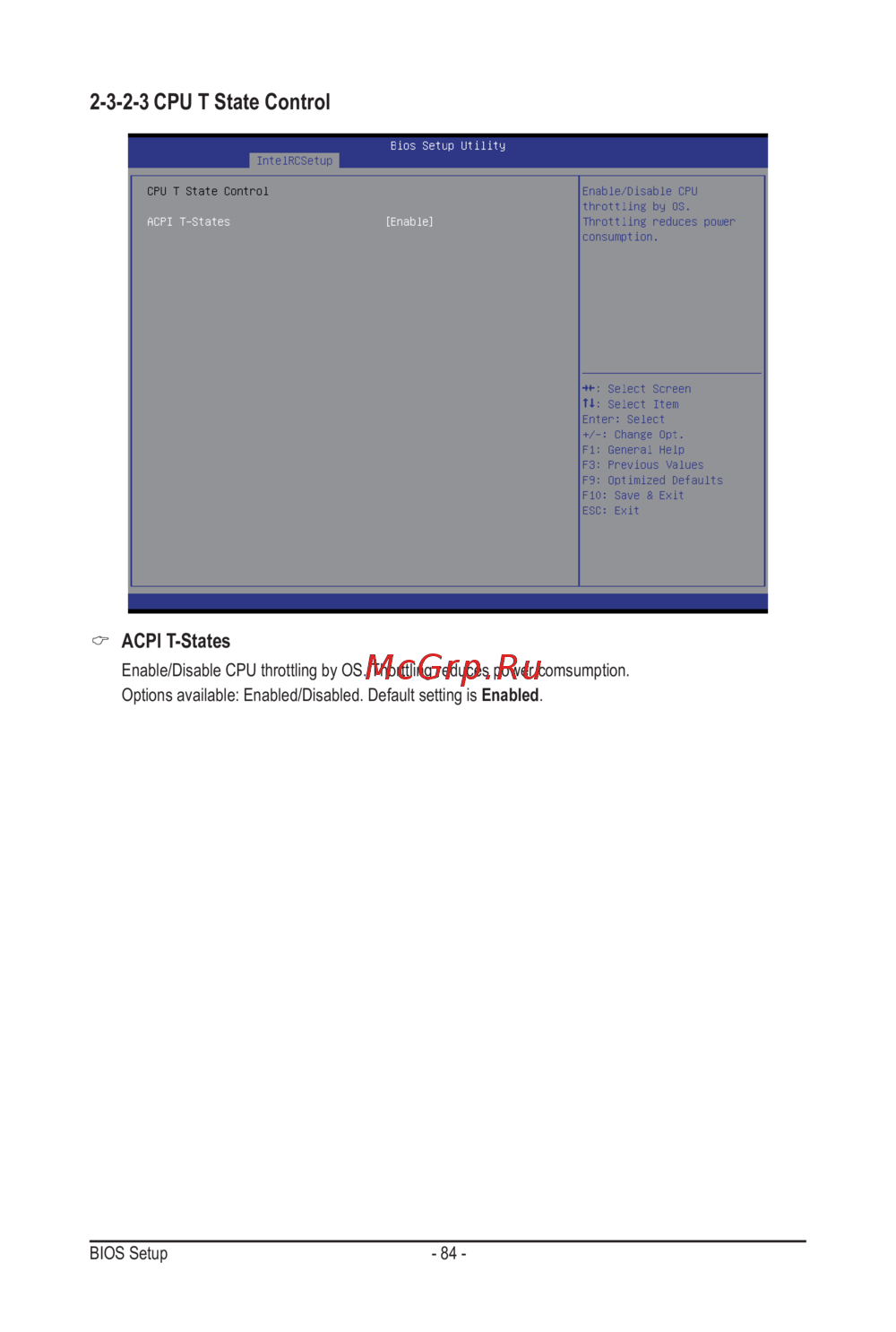

Gigabyte MW70-3S0 (rev. 1.0) [84/135] Acpi t states

BIOS Setup - 84 -

2-3-2-3 CPU T State Control

ACPI T-States

Enable/Disable CPU throttling by OS. Thorttling reduces power comsumption.

Options available: Enabled/Disabled. Default setting is Enabled.
