2-3-2 Advanced Power Management Conguration

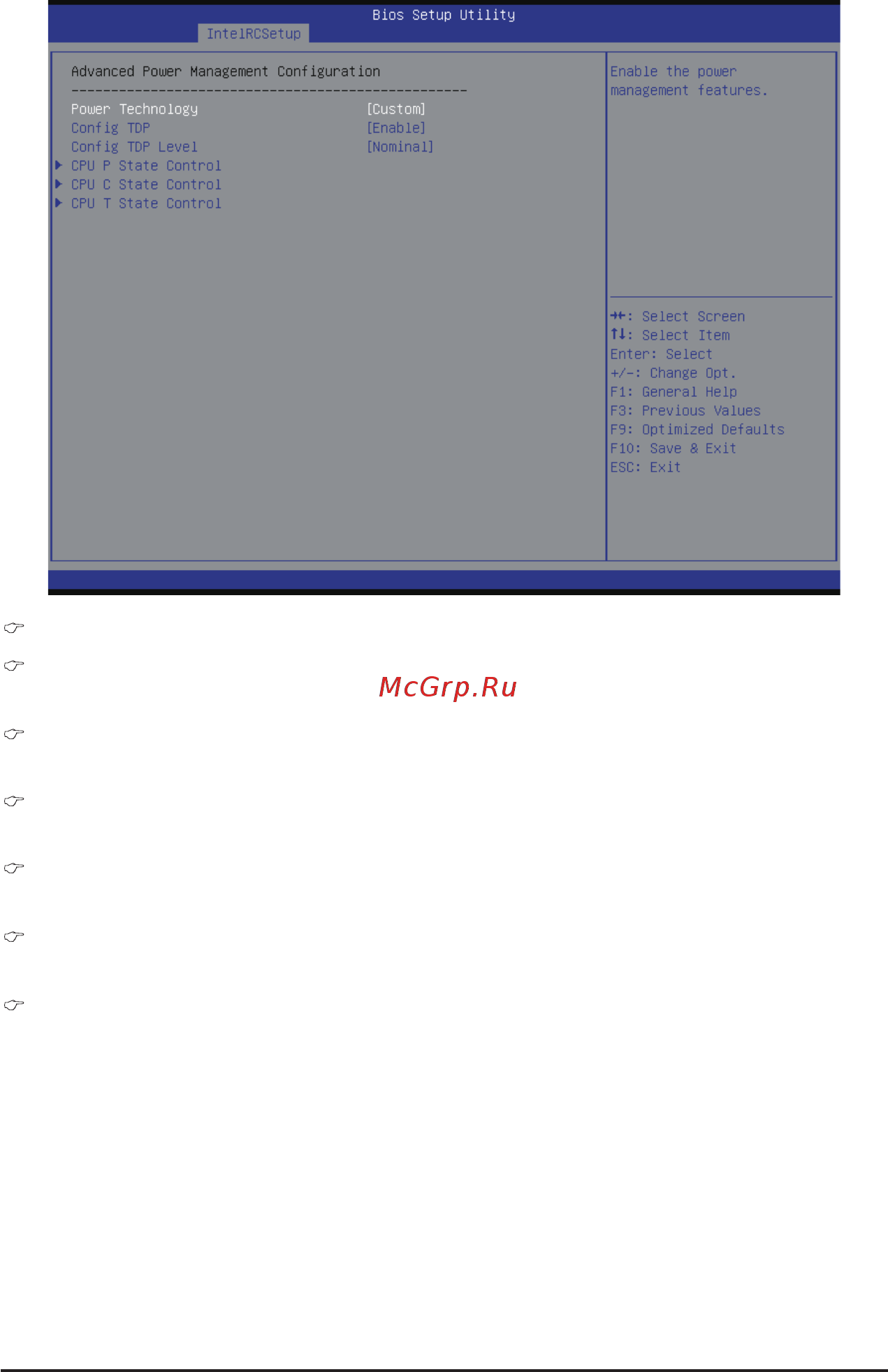

Advanced Power Management Conguration

Power Technology

 Optionavailable:Disable/EnergyEfcient/Custom.DefaultsettingisEnergy Efcient.

Cong TDP

Options available: Enabled/Disabled. Default setting is Enabled.

Cong TDP Level

Options available: Enabled/Disabled. Default setting is Disabled.

CPU P State Control

 Press[Enter]forcongurationofadvanceditems.

CPU C State Control

 Press[Enter]forcongurationofadvanceditems.

CPU T State Control

 Press[Enter]forcongurationofadvanceditems.
