Gigabyte MW70-3S0 (rev. 1.0) [62/135] Storage

BIOS Setup - 62 -

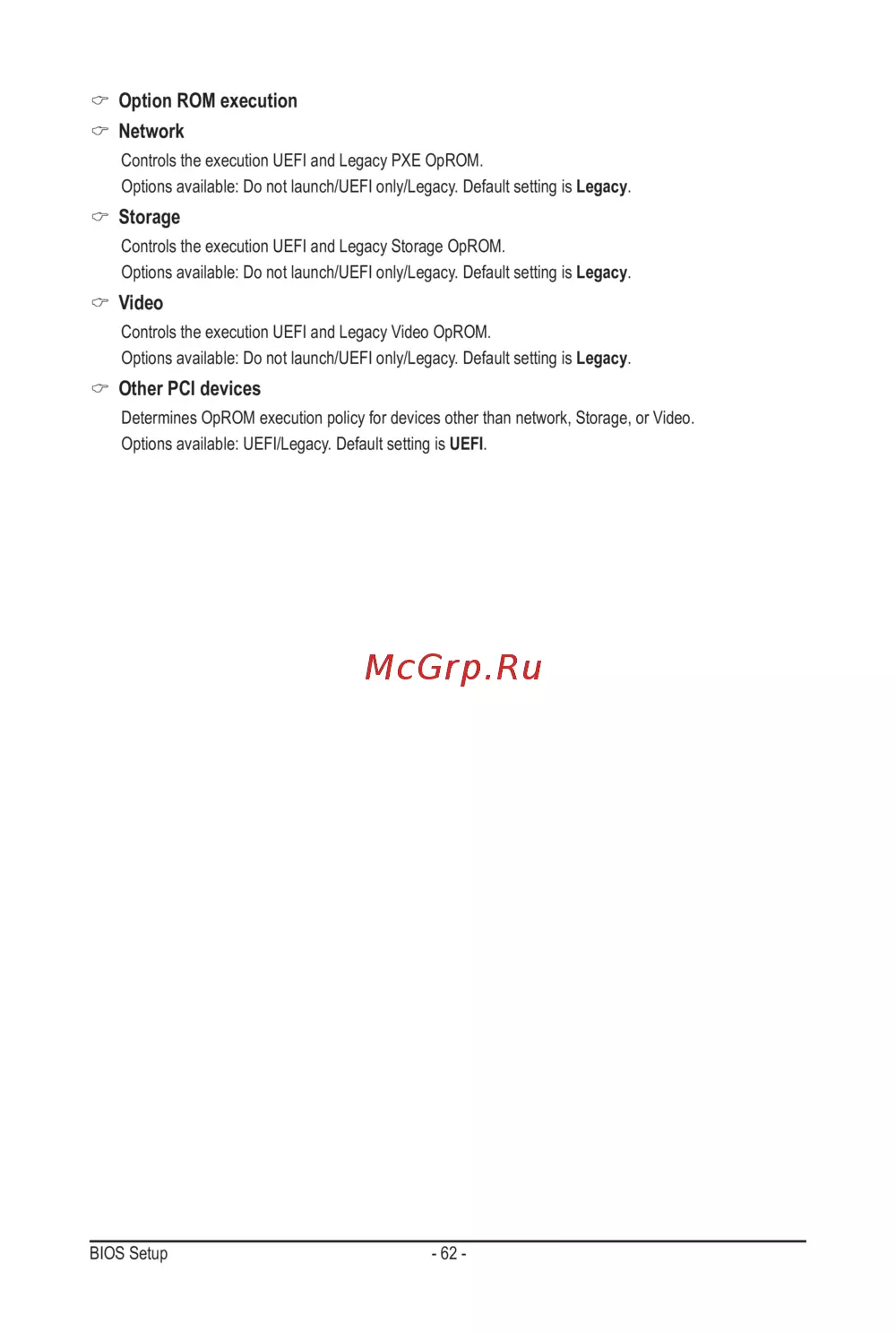

Option ROM execution

Network

Controls the execution UEFI and Legacy PXE OpROM.

Options available: Do not launch/UEFI only/Legacy. Default setting is Legacy.

Storage

Controls the execution UEFI and Legacy Storage OpROM.

Options available: Do not launch/UEFI only/Legacy. Default setting is Legacy.

Video

Controls the execution UEFI and Legacy Video OpROM.

Options available: Do not launch/UEFI only/Legacy. Default setting is Legacy.

Other PCI devices

Determines OpROM execution policy for devices other than network, Storage, or Video.

Options available: UEFI/Legacy. Default setting is UEFI.
