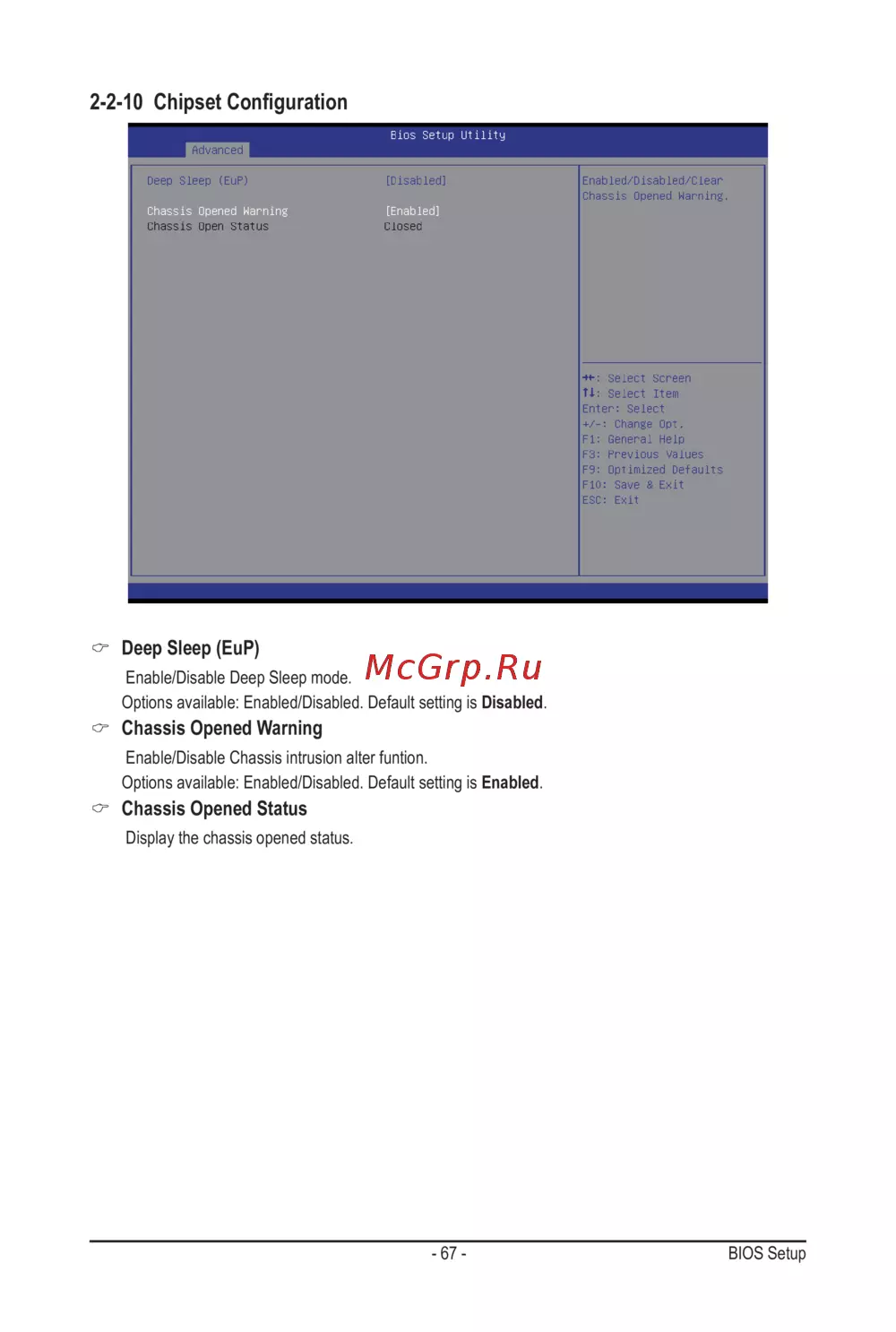

Gigabyte MW70-3S0 (rev. 1.0) [67/135] 2 10 chipset configuration

- 67 - BIOS Setup

2-2-10 Chipset Conguration

Deep Sleep (EuP)

Enable/Disable Deep Sleep mode.

Options available: Enabled/Disabled. Default setting is Disabled.

Chassis Opened Warning

Enable/Disable Chassis intrusion alter funtion.

Options available: Enabled/Disabled. Default setting is Enabled.

Chassis Opened Status

Display the chassis opened status.
