Gigabyte MW70-3S0 (rev. 1.0) [35/135] 31 lan1_led lan2_led lan1 lan2 link active led headers

- 35 - Hardware Installation

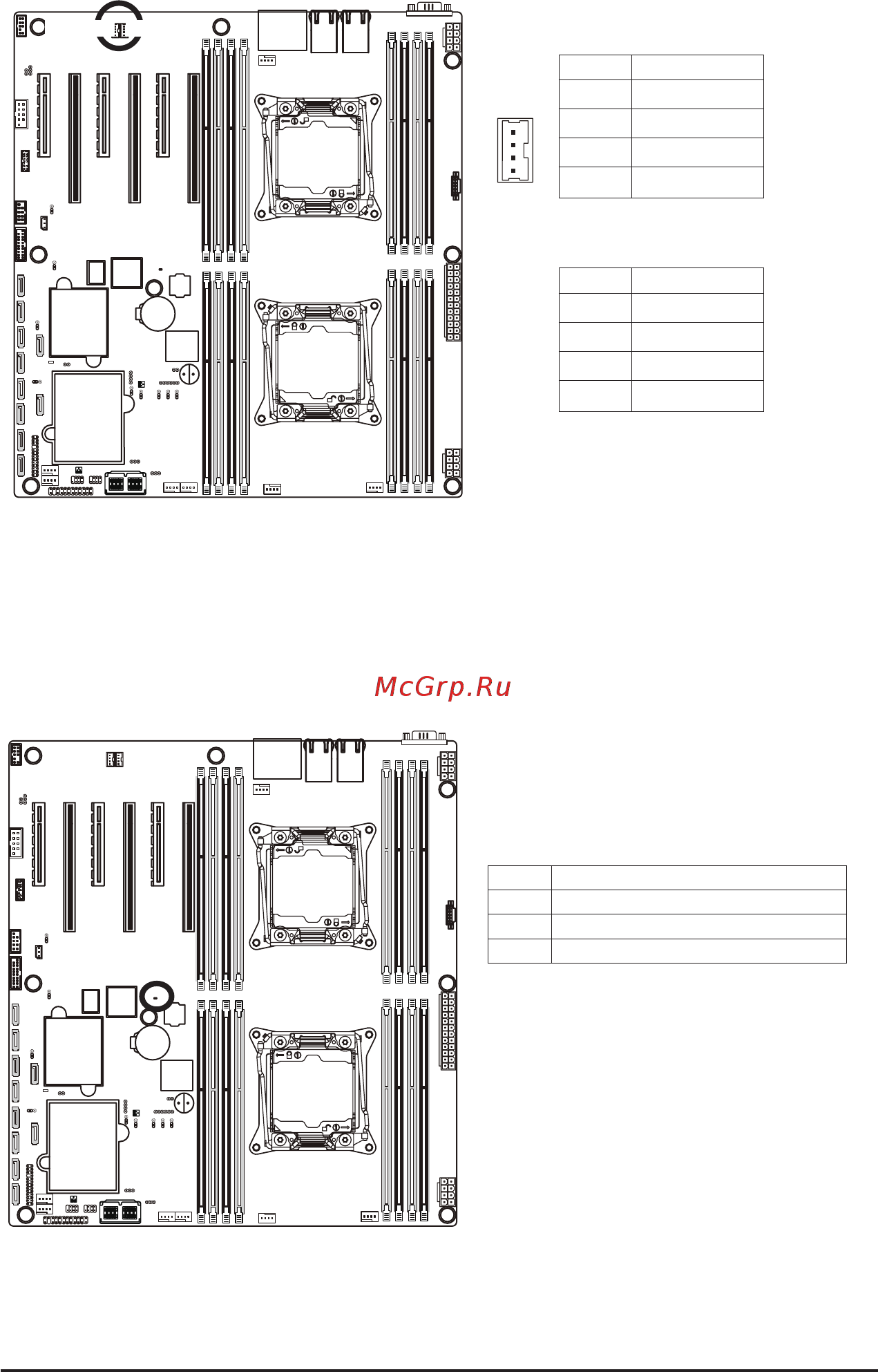

30/31) LAN1_LED/LAN2_LED (LAN1/LAN2 link/active LED Headers)

LAN1_LED LAN2_LED

PinNo. Denition

1 P_3.3V_AUX

2 LAN1_ACT_N

3 LAN1_100M_N

4 LAN1_1G_N

PinNo. Denition

1 P_3.3V_AUX

2 LAN2_ACT_N

3 LAN2_100M_N

4 LAN2_1G_N

LAN1_LED:

LAN2_LED:

32) LED_BMC (BMC Firmware Readiness LED)

State Description

On BMCrmwareisinitial

Blinking BMCrmwareisready

Off AC loss
