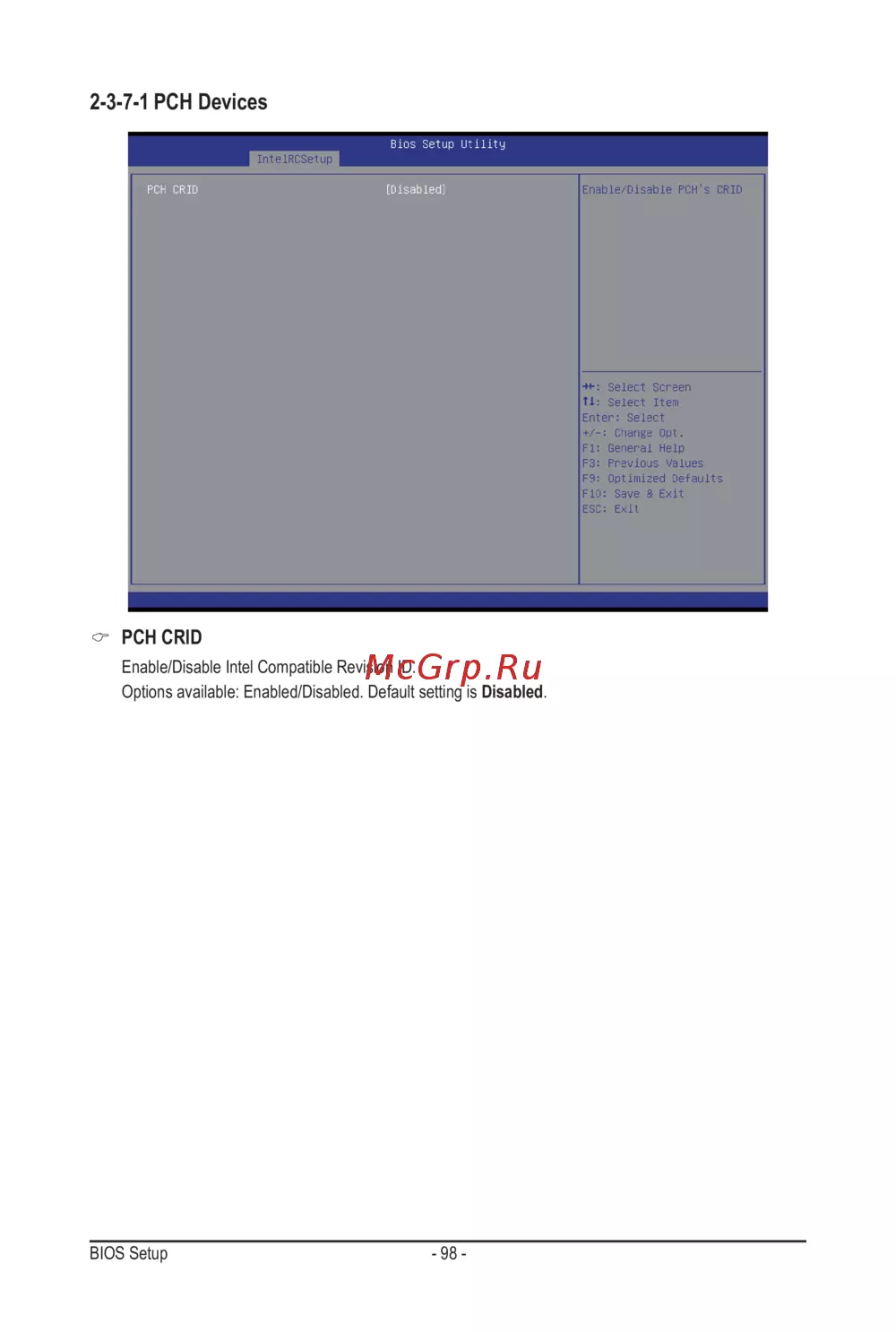

BIOS Setup - 98 -

2-3-7-1 PCH Devices

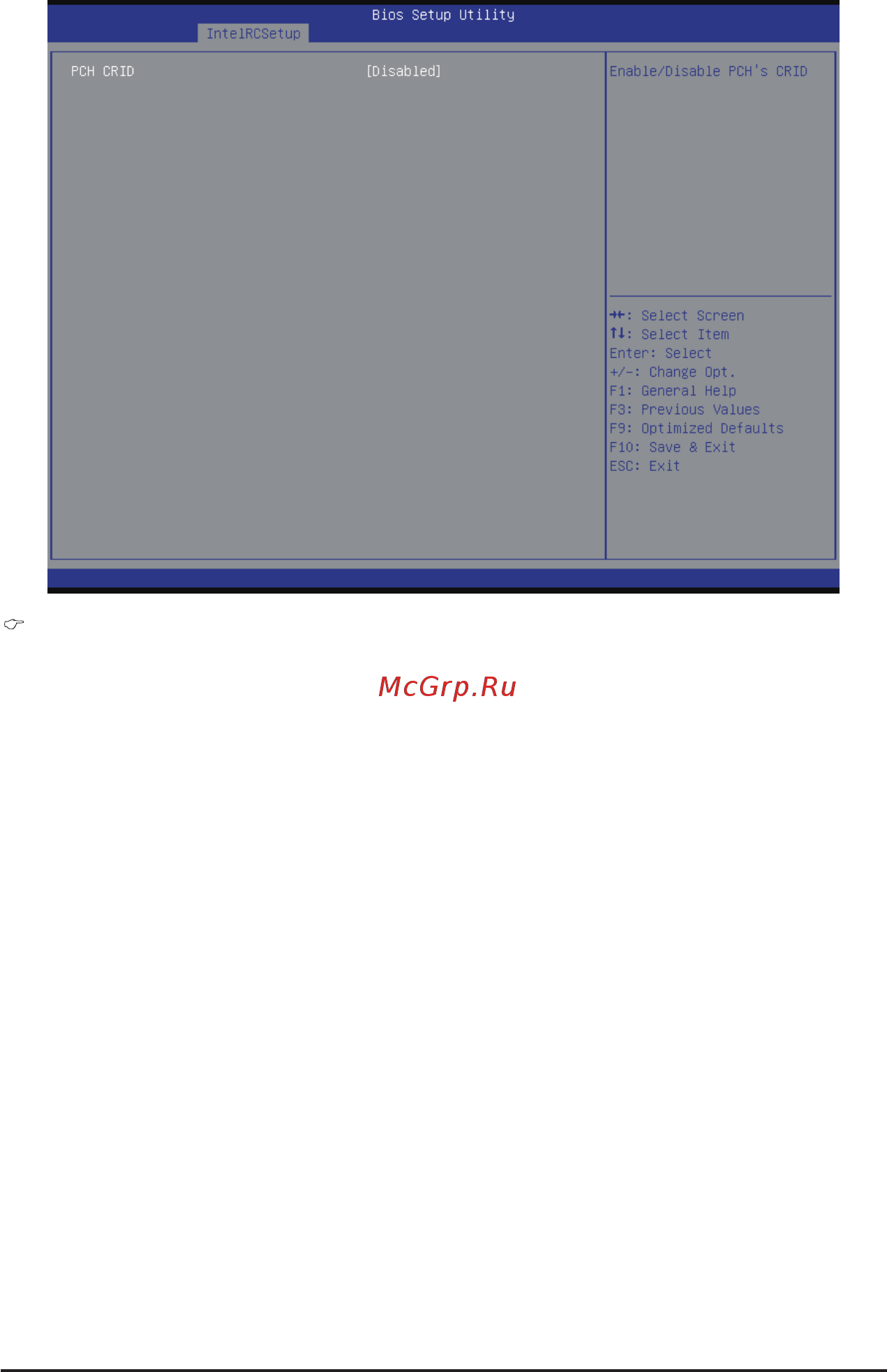

PCH CRID

Enable/Disable Intel Compatible Revision ID.

Options available: Enabled/Disabled. Default setting is Disabled.
