Gigabyte MW70-3S0 (rev. 1.0) [39/135] 7 jumper settings

- 39 - Hardware Installation

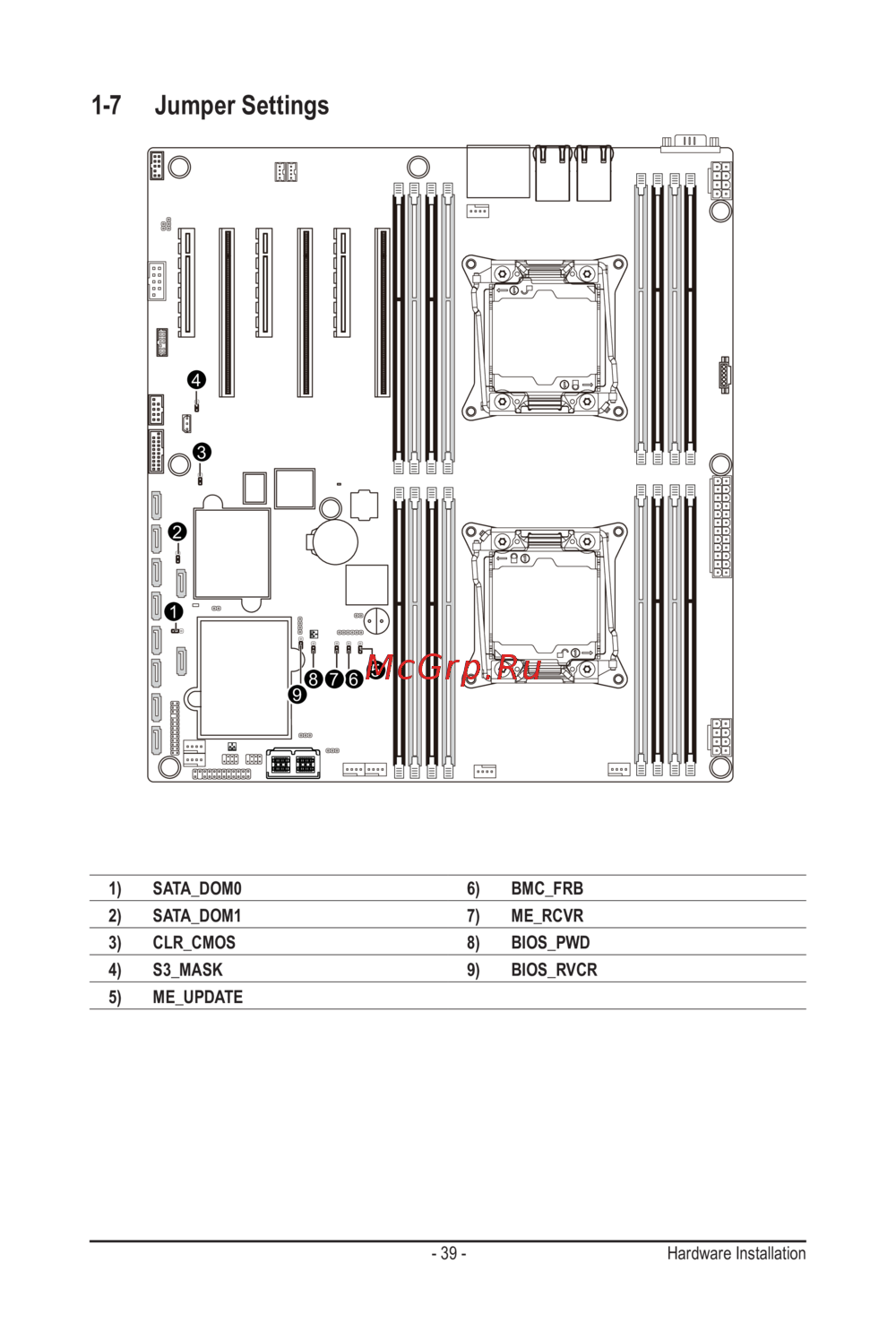

1-7 Jumper Settings

1) SATA_DOM0

2) SATA_DOM1

3) CLR_CMOS

4) S3_MASK

5) ME_UPDATE

6) BMC_FRB

7) ME_RCVR

8) BIOS_PWD

9) BIOS_RVCR

678
