Gigabyte MW70-3S0 (rev. 1.0) [65/135] Current status information

- 65 - BIOS Setup

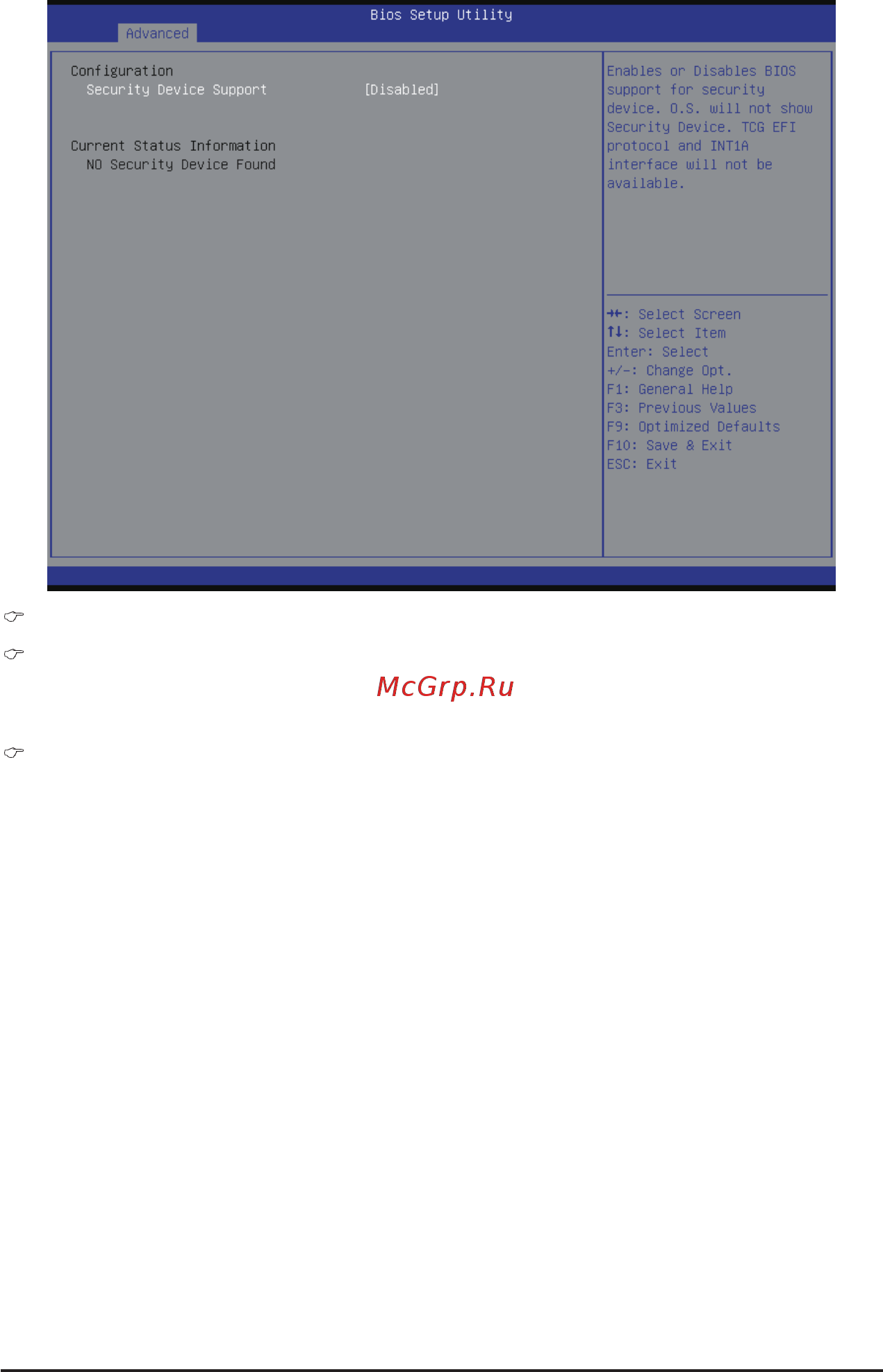

2-2-8 Trusted Computing

Conguration

Security Device Support

Select Enabled to activate TPM support feature.

Options available: Enabled/Disabled. Default setting is Disabled.

Current Status Information

Display current TPM status information.
