Hardware Installation - 36 -

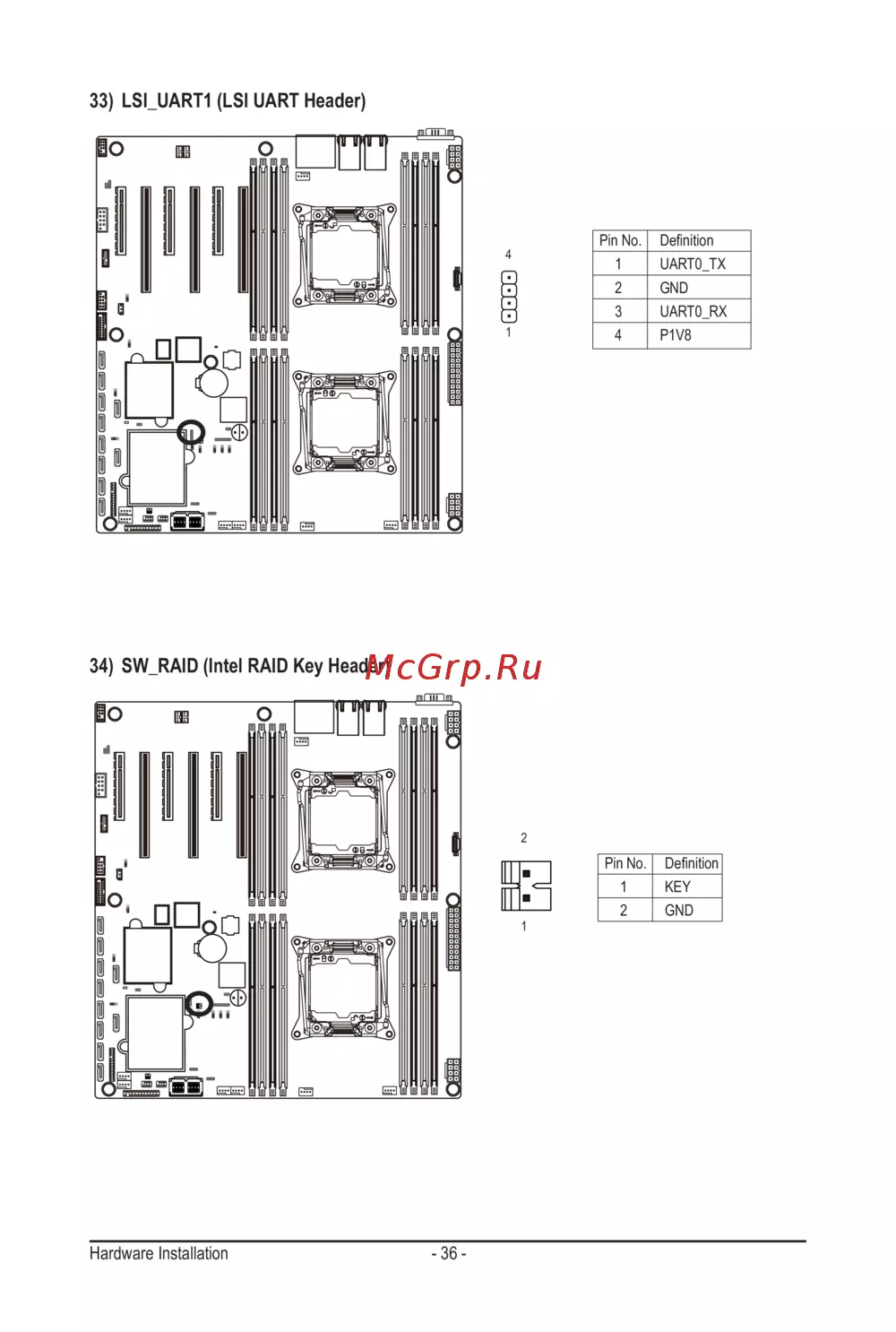

33) LSI_UART1 (LSI UART Header)

PinNo. Denition

1 UART0_TX

2 GND

3 UART0_RX

4 P1V8

34) SW_RAID (Intel RAID Key Header)

PinNo. Denition

1 KEY

2 GND
