- 9 -

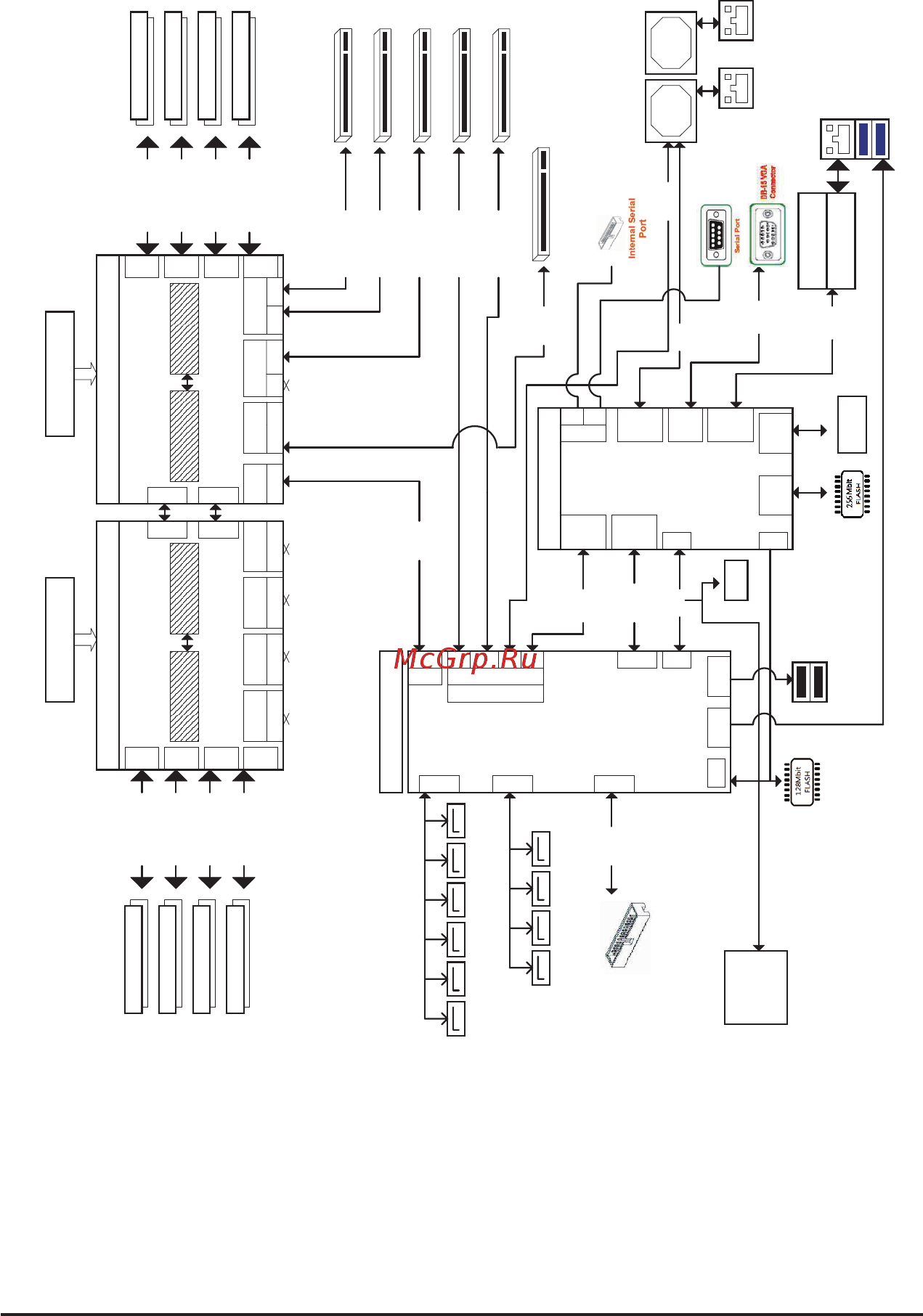

Block Diagram
6Gb/s
4 DIMM Slots
Max 2133MT/s
Max 2133MT/s
Max 2133MT/s
Max 2133MT/s
Intel Xeon E5-2600 v3 Series Processor #2
DDR4DDR4DDR4
CPU 1
SOCKET R3 ( LGA2011 )
DDR4
L3 20/15/10/5MBytes
L2 Cache On-die
QPI1 QPI0
1 x DDR4 RDIMM/LRDIMM
Dual/Quad/Six/Eight
Core
Max 2133MT/s
Max 2133MT/s
Max 2133MT/s
Max 2133MT/s
CPU 0
SOCKET R3 ( LGA2011 )
Intel Xeon E5-2600 v3 Series Processor #1
HasWell-EP
QPI1QPI0
L3 20/15/10/5MBytes
L2 Cache On-die
Dual/Quad/Six/Eight
Core
IR VRD 12.5IR VRD 12.5
HasWell-EP
PCI Express
Gen3
PCI Express
Gen3
sserpxE ICP2IMD
Gen3
4x61x8x4x
DMI2 PCI Express
Gen3
x8
ARM9
PCIe Gen3 x 4
Slot 4
DMI2 x4
5GT/s
Ethernet
10/100/1000
ASPEED AST2400
NC-SI
Video
DAC
Ethernet
10/100/1000
RGMII
10/100 Mb / 1Gb
PHY
RealTek
RTL8211E
Analog
Video
10
UART
LPC to
SPI Flash
Bridge
DDR2/3
Memory
Controller
USB
1.1 & 2.0
Graphics
Controller
LPC
PCIe x1
x4
DMI2
Intel C612 Chipset
USB 2.0
2 x USB
LPC
LPC
USB 3.0
2 x USB
SPI
AHCI
SATA 0-5
DDR4 DDR4 DDR4 DDR4
TPM
x8
6Gb/sSSATA 0-3
Slot 5
PCIe Gen3 x 8
X16
PCIe x 1
SATA1SATA0
128 MB DDR3
VRAM
SPI
USB3_MLAN
x8
PCI Express
Gen2
x1x1x1
Front_USB3
SIO
SATA3SATA2SATA5SATA4
SSATA
SSATA1SSATA0 SSATA3SSATA2
Slot 3
Slot 2
Slot 1
PCIe Gen2 x 4
PCIe Gen2 x 1
PCIe x 8
PCIe Gen3 x 8
ITE 8772
USB 3.0
1A~BD~A2B~A1
4 DIMM Slots
J321 J321
USB 2.0
USB2
3A~D
x4
RAID CARD
x4
2A~D
PCI Express
Gen3
3A~D
PCI Express
Gen3
x8x8
1 x DDR4 RDIMM/LRDIMM
1 x DDR4 RDIMM/LRDIMM
1 x DDR4 RDIMM/LRDIMM
1 x DDR4 RDIMM/LRDIMM
1 x DDR4 RDIMM/LRDIMM
1 x DDR4 RDIMM/LRDIMM
1 x DDR4 RDIMM/LRDIMM
PCI Express x8 Slot
PCI Express x8 Slot
PCI Express x8 Slot
PCI Express x4 Slot
PCI Express x1 Slot
