Gigabyte G591-HS0 (rev. 100) [61/113] 2 8 nvme configuration

- 61 - BIOS Setup

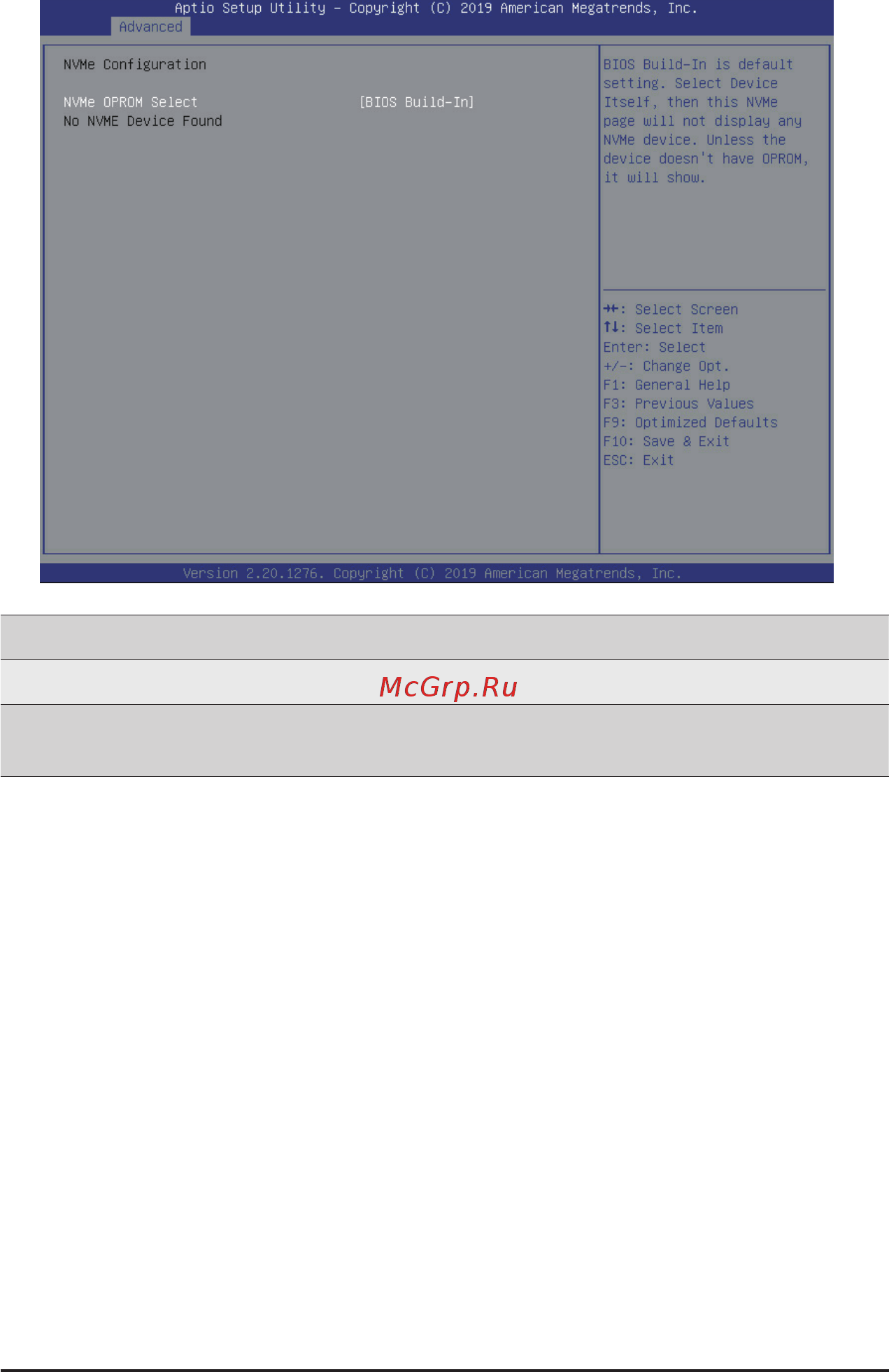

5-2-8 NVMe Conguration

Parameter

Description

NVMe Conguration

Displays the NVMe devices connected to the system

NVMe OPROM Select

Options available: BIOS Build-In/NVMe Device. Default setting is BIOS

Build-In.
