Gigabyte G492-Z51 (rev. 100) [17/141] 1 front view

- 17 - System Appearance

Chapter 2 System Appearance

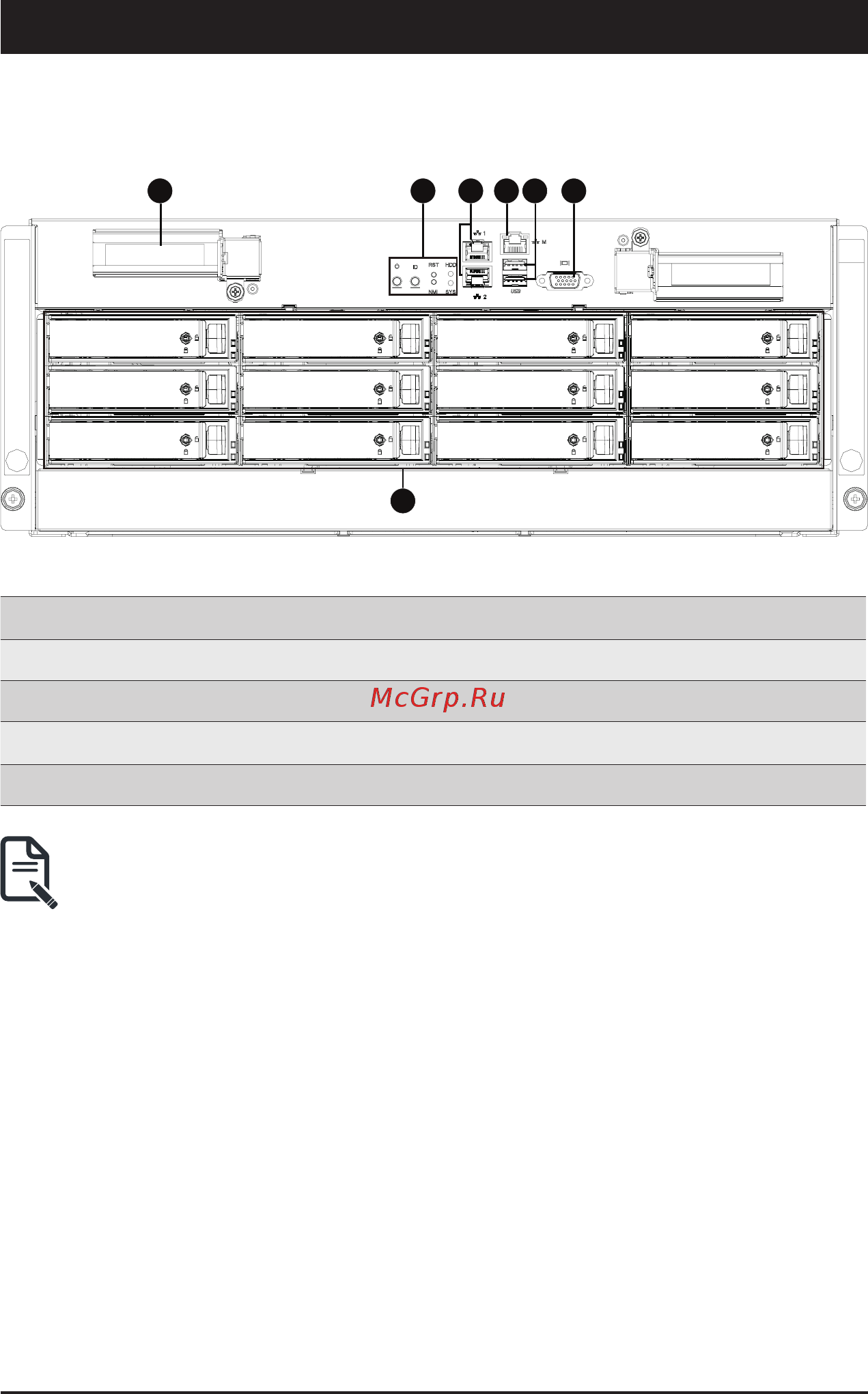

2-1 Front View

• Go to the section 2-3 Front Panel Buttons and LEDs for detail description of function

LEDs.

1 2

3 4 5 6

No.

Description

No.

Description

RAID Card Slot

USB 3.0 Port x 2

Front Panel LEDs and Buttons

VGA Port

10GbE LAN Port x 2

3.5-inch HDD Bay x 12 (0 to #11)

10/100/1000 Server Management LAN Port

HDD #0 HDD #3 HDD #6 HDD #9

HDD #1 HDD #4 HDD #7 HDD #10

HDD #2 HDD #5 HDD #8 HDD #11
