- 45 - GSM Server

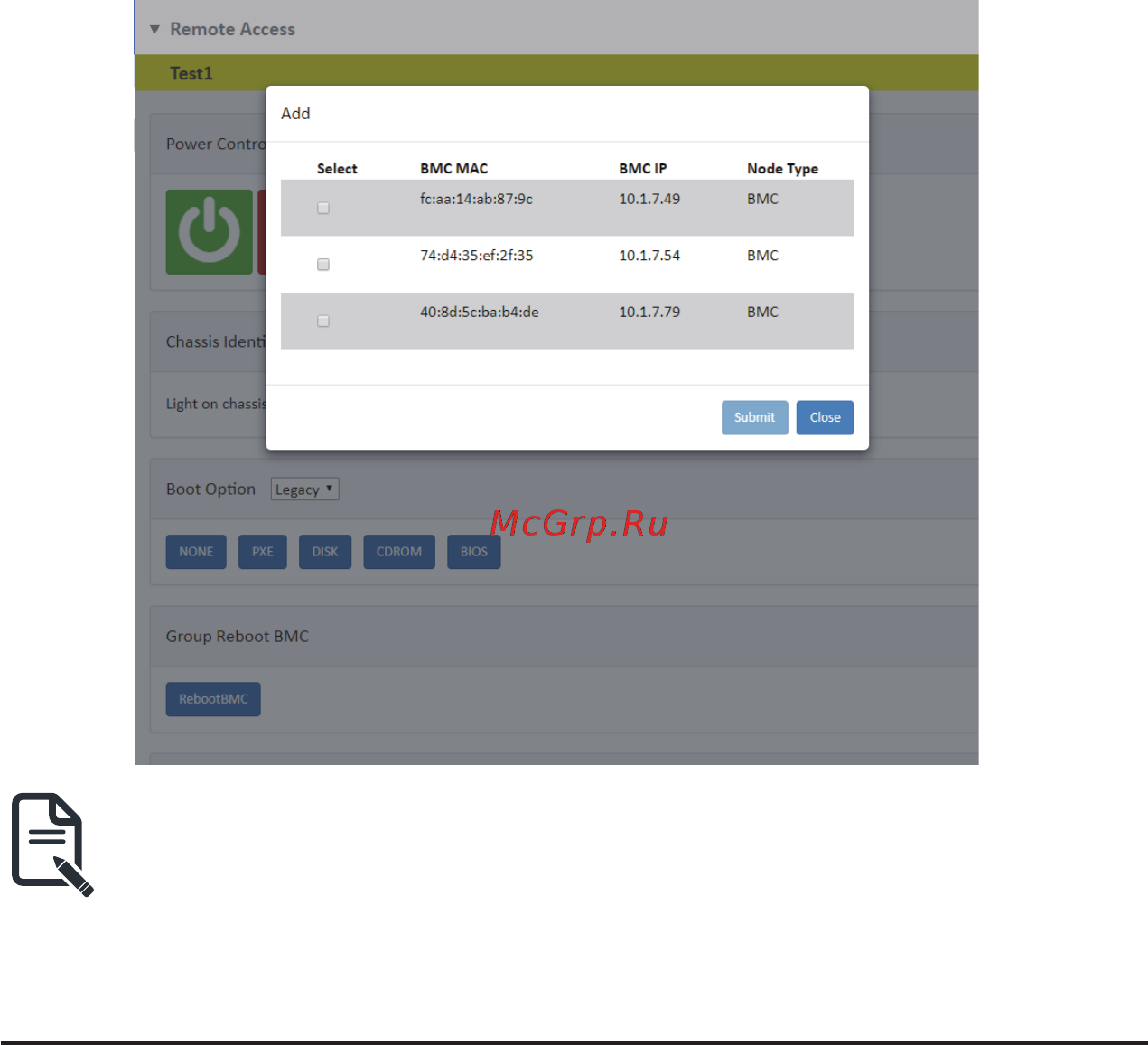

3-4-2 Remote Access

Remote Access provides the following remote functions for managing grouped

nodes:

• PowerControlConguration

• Chassis Identify

• Boot Option

• Launch iKVM

• Reboot BMC

• Restore BIOS default settings

• BIOS Setup information

• Mount/Unmount Virtual Media

• NetworkTimeProtocolConguration

• BMCAccountConguration

• BMCAgentAccountConguration

• BMCBackup/RestoreCongure

Pleaserefersection2-2-1-3RemoteAccessforadvancedconguration.

NOTE!

1. Specify the node system from the group list and click

Submit to complete the conguration.
