Руководство пользователя GSM Server Страница: 48

Gigabyte R281-Z94 (rev. A00) [48/68] 4 5 power consumption monitor

GSM Server - 48 -

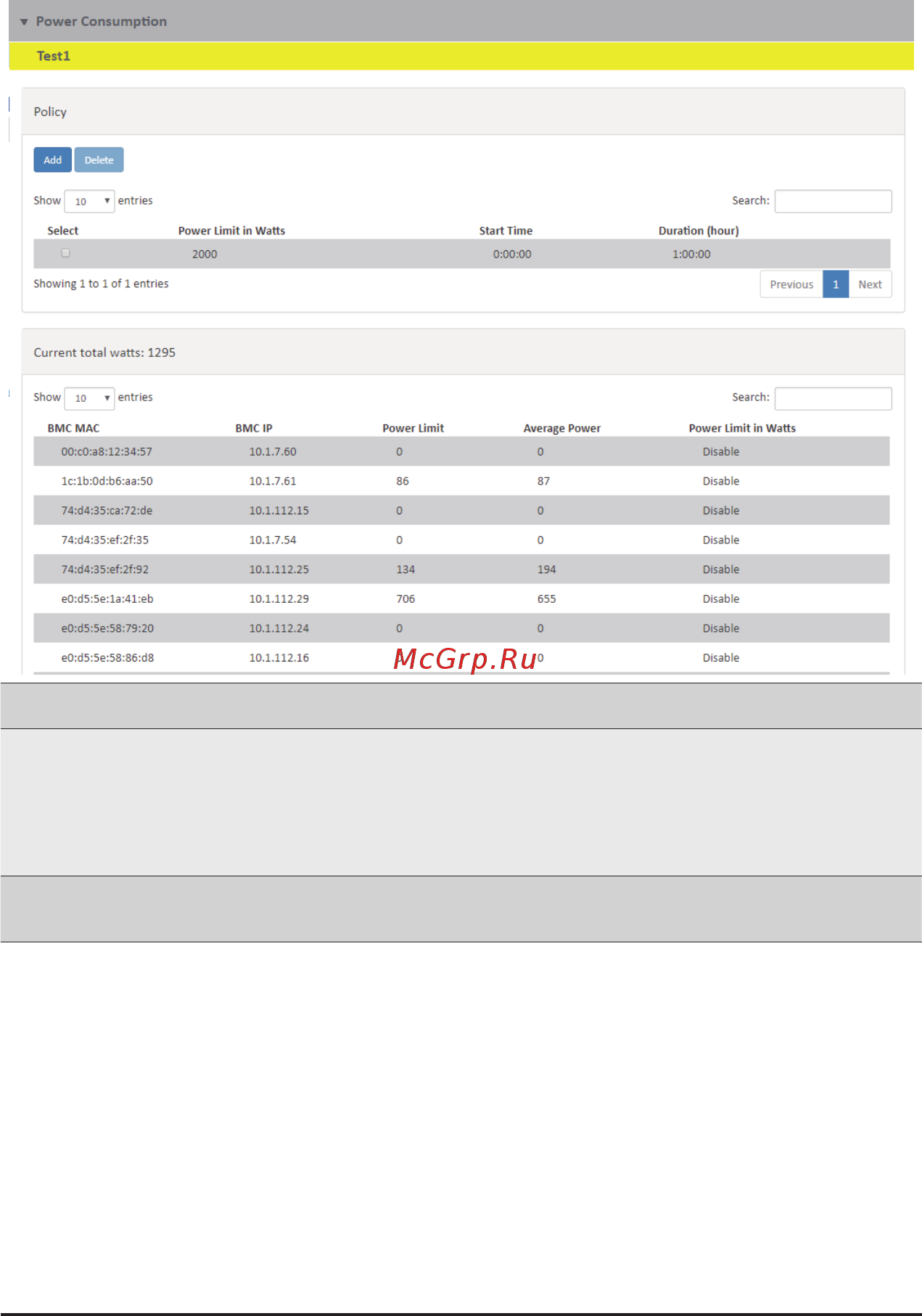

3-4-5 Power Consumption Monitor

Power Consumption Monitor displays a Group's power usage status for each system

andtheaverageusagestatusofaGroup.Thisfunctionalsoallowsuserstocongurethepower

policies for the system.

Parameter

Description/Resulting Action

Policy

Click Add to add the execution time of Power limit. The start

time is the initial time, and Duration (hour) is to set the duration.

You can check the setting item and click Delete to cancel the

setting of Power Limit.

Current total watts

Displays the power limit of each System and its average value.
