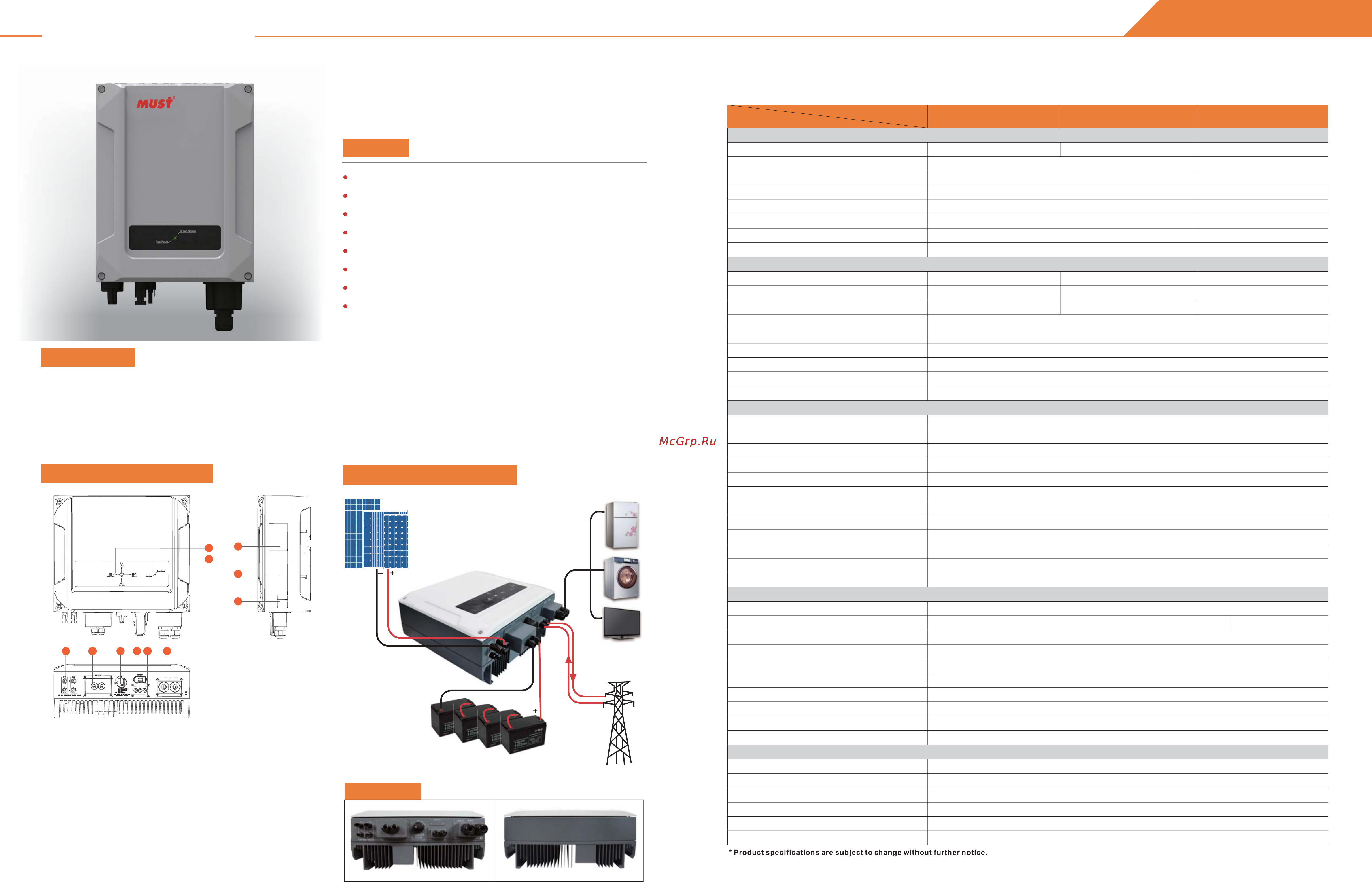

Solar System
Single Phase Inverter
-01- -02-
PH2000 TL Series
Single Phase Inverter
Feature:
Specification
Model
Specifications
Efficiency
3400 W
600 V
70-600 V
80-580 V
3000 W
3000 VA
14.3 A
7.3 kg
2300 W
2000 W
2000 VA
9.5 A
1800 W
1500 W
1500 VA
7.5 A
PH20-1500TL PH20-3000TLPH20-2000TL
Input Data (DC)
Max. DC power
Max. DC voltage
Start voltage
DC nominal voltage
PV voltage range
MPP voltage range
Max. input current per string of tracker A
Number of independent MPP inputs
Output Data (AC)
Nominal AC output power
Max. AC apparent power
Max. output current
AC nominal voltage; range
AC grid frequency; range
Power factor at rate power
Power factor
THDi
AC connection
Max. efficiency
MPPT efficiency
Euro - eta
Protection Devices
DC reverse polarity protection
DC switch ratiing for each MPPT
Output over current protection
Output overvoltage protection-varistor
Ground fault monitoring
Grid monitoring
Integrated all - pole sensitive leakage current
monitoring unit
General Data
Dimensions (W / H / D)
Weight
Operating temperature range
Noise emission (typical)
Altitude
Relative humidity
Consumption: operating (standby) / night
Topology
Cooling concept
Environmental protection rating
Features
DC connection
AC connection
Display
Interfaces: Wi-Fi/USB/GPRS/RS485
Warranty: 5 years / 10 years / 15 years
Certificates and approvals
450 V
70-450 V
80-450 V
5.2 kg
80 V
360 V
11 A
1
220V/230V/240V; 180Vac-280Vac
50,60H;±5 Hz
1
0.9leading…0.9lagging
<3%
Single phase
97%
96.5%
99.5%
Yes
Yes
Yes
Yes
Yes
Yes
259*328*138mm
-25...+60°C (-13...+ 140°F) with derating above 45°C（113°F）
≤ 25 dB(A)
Up to 2000m (6560ft) without power derating
95%
<5W / < 0.5 W
Transformerless
Natural
IP65
H4/MC4
Screw terminal
LED
Yes/Yes/Opt/Opt
Yes/Opt/Op
CE,IEC 62109, VDE 0126-1-1, VDE-AR-N4105,RD1663,G59,G83, AS4777, AS/NZS 3100, CGC
Yes
Zero export to grid
Reactive Power Control (RPC)
U-disk for software updating
Light weight in small size
Without LCD,no risk of dust or water
Seperate APP setting/monitoring
Wi-Fi/GPRS
Lantrun Pad local monitoring
The unit is bidirectional which apply to PV system withbattery to store energy. Energy produced by the PV system is used to
optimize self-consumption; excess energy is used to charge the batteries, and then fed into the public grid when the PV energy
is adequate, When PV energy output is in sufficient to support connected loads, the system automatically get energy from the
batteries if battery capacity is abundant. If the battery capacity is insufficient to meet own consumption requirements, electricity
will be drawn from the public grid.
Introduction:
LCD Display Information
1. The inverter power flow direction indicator
2. The inverter operation status indicator
3. PV input terminals
4. Battery input terminals and cover
5. PV input switch
6. WIFI com module and USB port
7. BAT._NTC and RS485 communication (BMS com, load monitor com, )
8. AC Output terminals and cover
9. Inverter Serial No.
10. Spec label
11. Warning signals label
1
2
3 4 5 6 7 8
9
10
11
Solar System Connection
External
Battery pack
PV panel
Home Appliances
Utility
Back Panel
