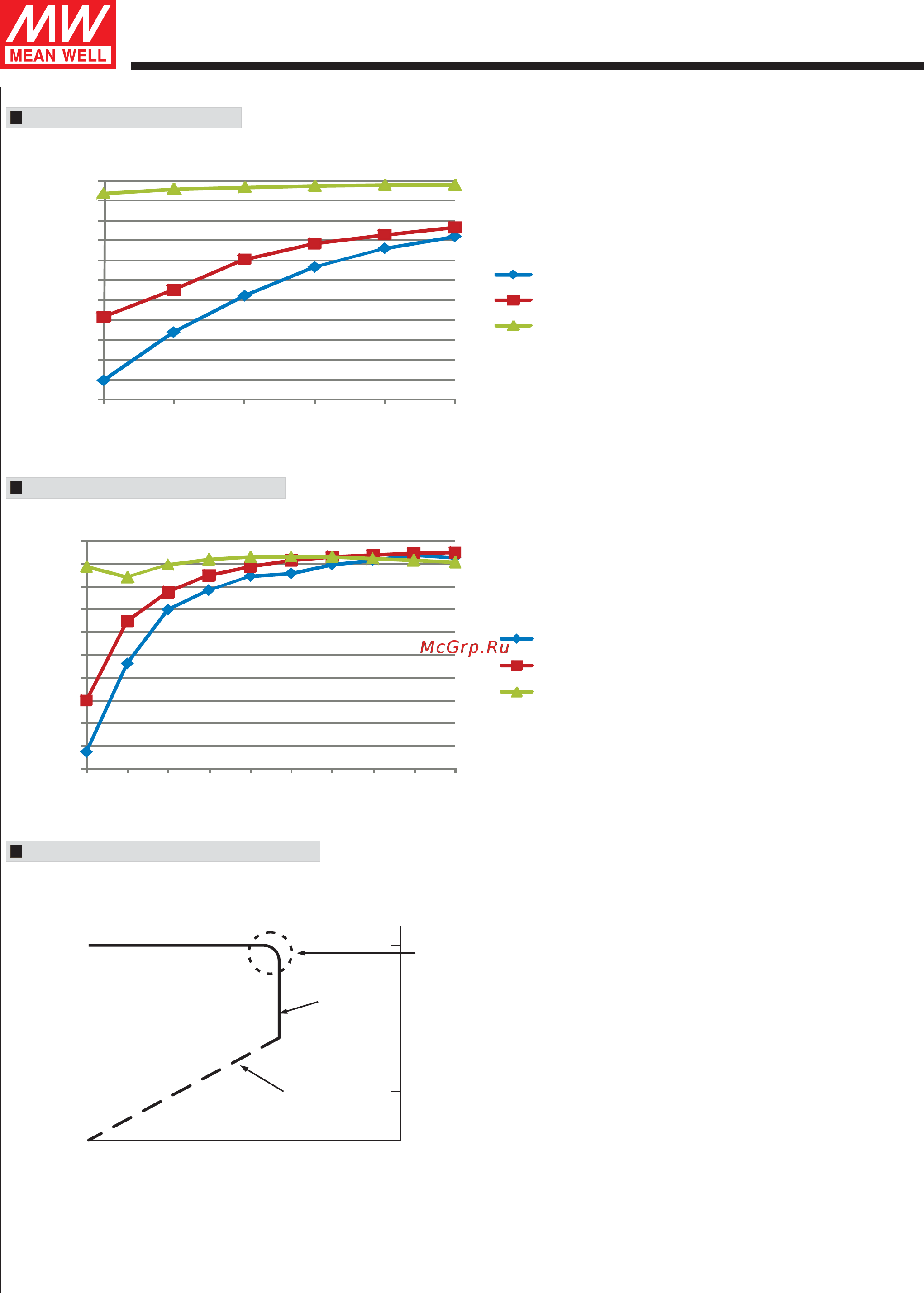

Power Factor Characteristic
EFFICIENCY vs LOAD (48V Model)
CEN-100 series possess superior working efficiency that up to 91% can be reached in field applications.
PF
LOAD
EFFICIENCY (%)
LOAD
(100W)
Constant Current Mode
100W Single Output LED Power Supply
CEN-100 series
File Name:CEN-100-SPEC 2015-05-28
DRIVING METHODS OF LED MODULE
This LED power supply is suggested to work in constant current mode area (CC) to drive the LEDs.
Typical LED power supply I-V curve
Vo(%)
100
65
50 100
(min.)
Io (%)
Constant
Current area
Hiccup
Protection
In the constant current region, the highest voltage at the output of the driver
depends on the configuration of the end systems.
Should there be any compatibility issues, please contact MEAN WELL.
