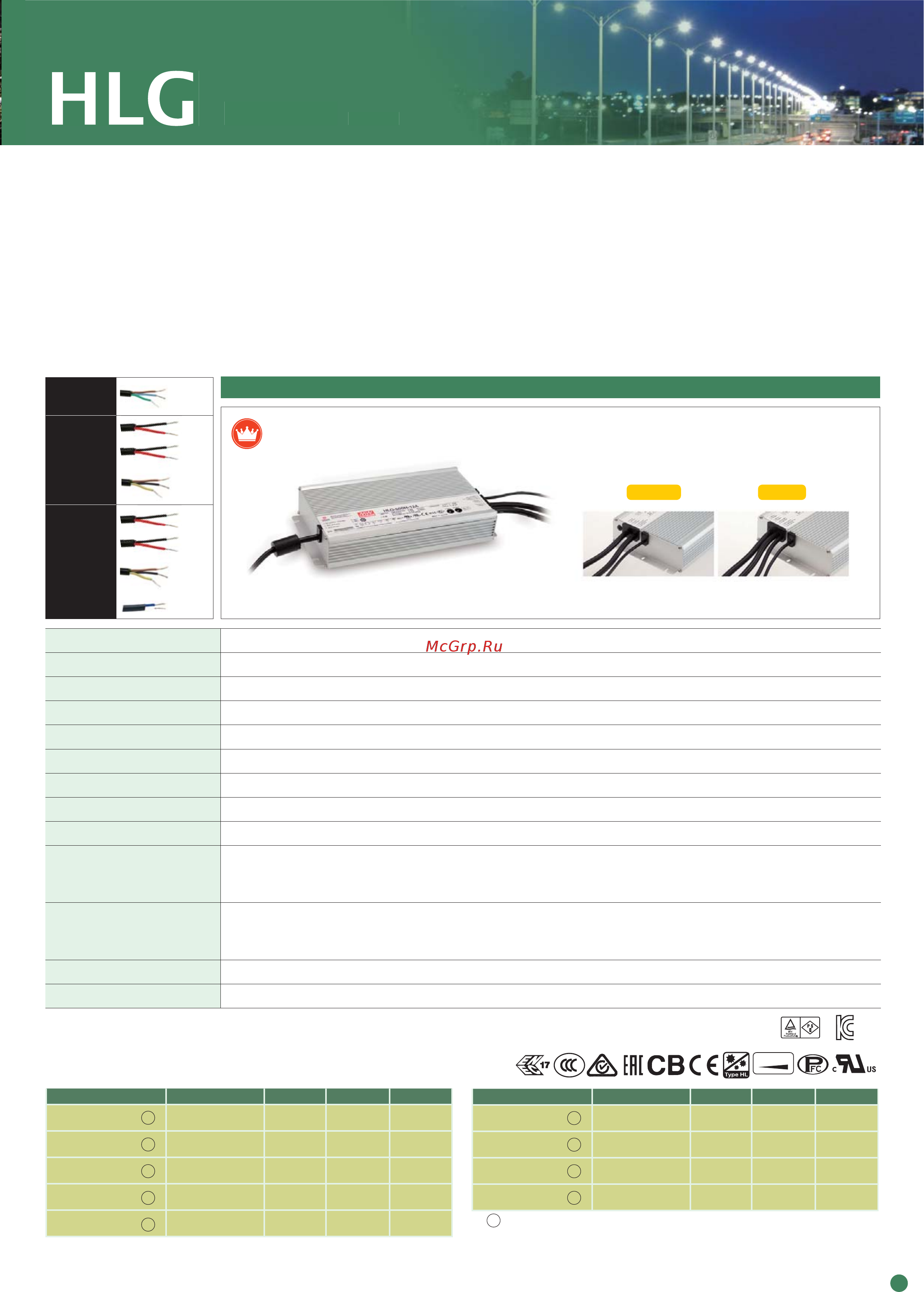

Features
• Constant voltage+constant current modes
• Universal AC input (90 to 305VAC) / Full range
• High efficiency up to 96%
• Meet 4kV surge immunity level (IEC61000-4-5)
• No load power consumption <0.5W at remote off (HLG-600H)
• Type HL LED Driver for use in Class I, Division 2 hazardous
location luminaires
• LED indicator for power on (A-Type only)
• Suitable for outdoor LED lighting applications
• Protections:
Short circuit / Over current / Over voltage / Over temperature
• Multiple models for choice:
Blank-Type: IP67 rated. Io and Vo fixed
(For harsh environment)
A-Type: IP65 rated. Io and Vo adjustable through built-in
potentiometer
B-Type: IP67 rated. 3 in 1 dimming function (0~10Vdc, 10V PWM
signal and resistance)
AB-Type: IP65 rated. Io and Vo adjustable through built-in
potentiometer & 3 in 1 dimming function.
7 years warranty
Model No. Output Tol. R&N Effi.
HLG-600H-12 A 12V, 0~40A ±3.0% 150mV 92.0%
HLG-600H-15 A 15V, 0~36A ±2.0% 150mV 93.5%
HLG-600H-20 A 20V, 0~28A ±1.5% 150mV 94.5%
HLG-600H-24 A 24V, 0~25A ±1.0% 150mV 95.0%
HLG-600H-30 A 30V, 0~20A ±1.0% 200mV 95.0%
Model No. Output Tol. R&N Effi.
HLG-600H-36 A 36V, 0~16.7A ±1.0% 250mV 95.5%
HLG-600H-42 A 42V, 0~14.3A ±1.0% 250mV 96.0%
HLG-600H-48 A 48V, 0~12.5A ±1.0% 250mV 96.0%
HLG-600H-54 A 54V, 0~11.2A ±1.0% 350mV 96.0%
= A , B, AB
HLG-600H Series
AC input voltage range 90~305VAC; 127~431VDC
AC inrush current (max.) Cold start, 70A at 230VAC
DC adjustment range -15%~+5% rated output voltage (A-Type only)
Current adjustment range 50%~100% via potentiometer (A-Type & HLG-320H C-Type only)
Over current protection 95%~108% constant current limiting, auto- recovery
Over voltage protection 110%~140% rated output voltage
Setup, rise, hold up time 500ms, 80ms, 15ms at full load and 230VAC
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature
-40~+90
O
C (refer to "OUTPUT LOAD vs TEMPERATURE")
Safety standards
UL60950-1, UL8750(type”HL”), CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13 independent,
EN62384,IP65 or IP67, J61347-1, J61347-2-13, CCC GB4943.1, EAC TP TC 004, AS/NZS 60950.1(by CB),
KC61347-1, KC61347-2-13(for 24A,36A,48A,54A only) approved
EMC standards
EN55032 (CISPR32) Class B, EN55015, EN61000-3-2 Class C (@ load͘50%) ; EN61000-3-3,
EAC TP TC 020;KC KN15, KN61547(for 24A,36A,48A,54A only);EN61000-4-2,3,4,5,6,8,11,
EN61547, EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV)
Connection Please refer to page 64
Dimension (LxWxH)(mm) 280x 144x 48.5
(AB/B-Type)
0-10VDC
se
ri
es
600
W
(24A,36A,48A,54A)
Type HL
