MEAN WELL ELG-150-48AB [88/100] Smart timer dimming programmer
![MEAN WELL ODLC-65A-700 [88/100] Smart timer dimming programmer](/views2/1675311/page88/bg58.png)
Dimming Level (%)
Dimming Level (%)
Dimming Level (%)
Operating Time (HH:MM) Operating Time (HH:MM)
Operating Time (HH:MM)
85
MEAN WELL Smart timer dimming primarily provides the adaptive proportion dimming profile for the output constant current
level to perform up to 14 consecutive hours. 3 dimming profiles hereunder are defined accounting for the most frequently seen
applications. If other options may be needed, please contact MEAN WELL for details.
T1 T2 T3 T4
TIME** 06:00 07:00 11:00 ---
LEVEL** 100% 70% 50% 70%
T1 T2 T3 T4 T5
TIME** 01:00 03:00 08:00 11:00 ---
LEVEL** 50% 80% 100% 60% 80%
T1 T2 T3
TIME** 01:30 11:00 ---
LEVEL** 70% 100% 70%

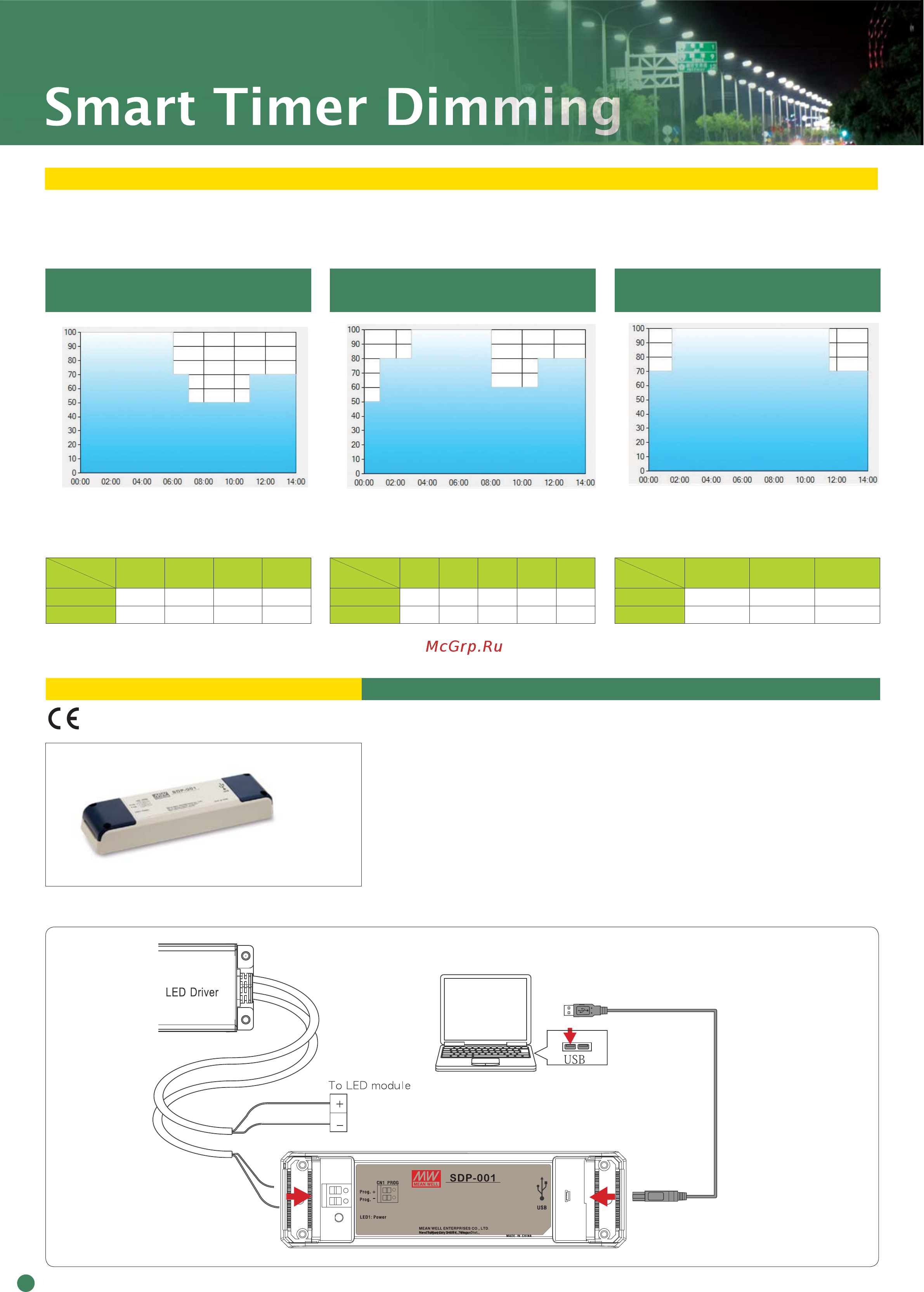

Smart Timer Dimming Function
Smart Timer Dimming Programmer
SDP-001 is a programmer, particularly for MEAN WELL’s Smart Timer
Dimming Tool for LED lighting dimming function, reading or writing
various parameters designated by users.
L165x W46x H23 mm
SDP-001
**: TIME matches Operating Time in the diagram whereas LEVEL matches Dimming Level.
Ex : D01-Type: the profile recommended
for residential lighting
Ex : D02-Type: the profile recommended
for street lighting
Ex : D03-Type: the profile recommended
for tunnel lighting
Set up for D01-Type in
Smart timer dimming software program
Set up for D02-Type in
Smart timer dimming software program
Set up for D03-Type in
Smart timer dimming software program
•
Simple connection and configuration
• Push terminal and mini-USB port
• No need of battery or AC power
(LVD)
