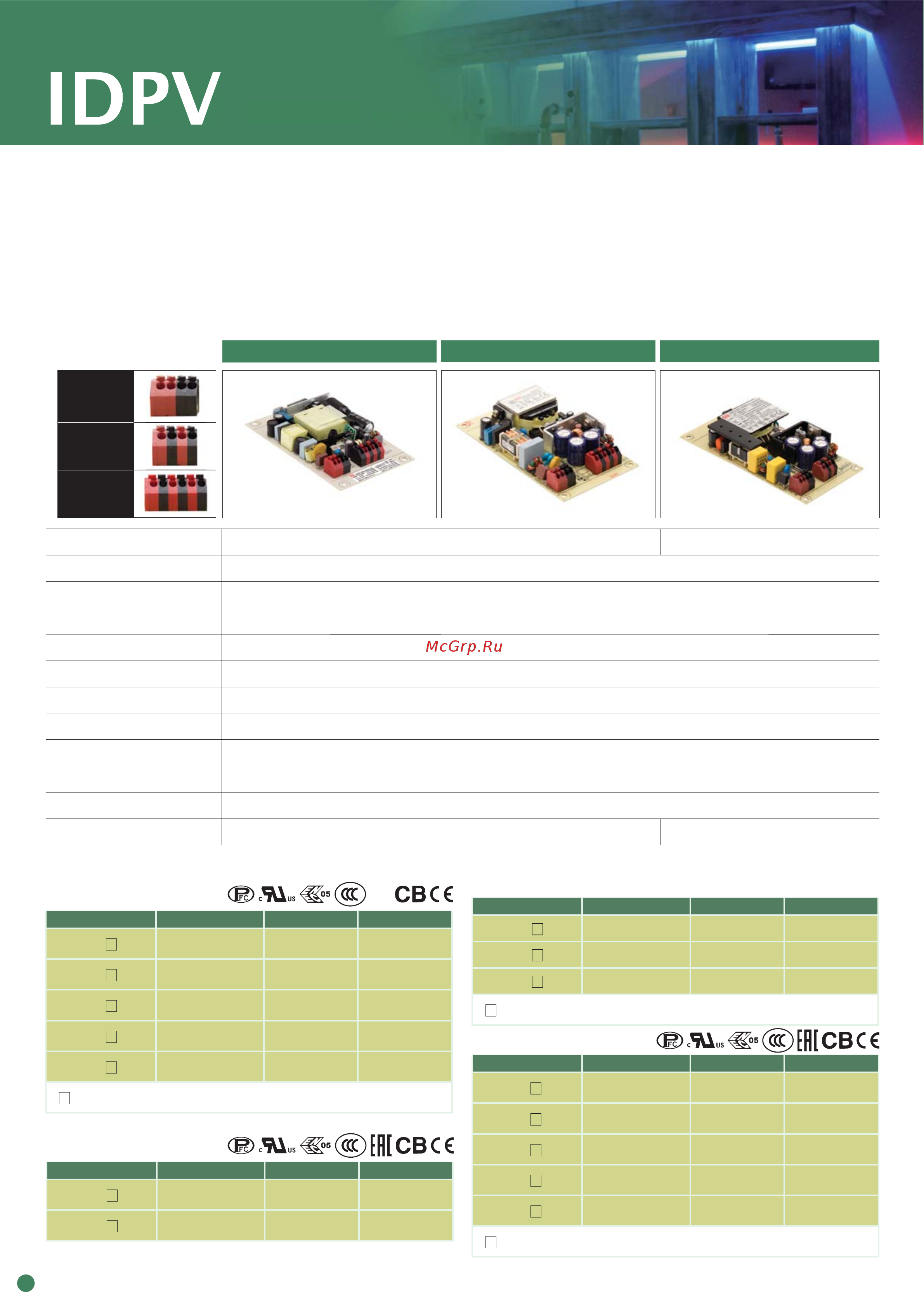

![MEAN WELL LCM-25DA [76/100] Series](/views2/1675311/page76/bg4c.png)
INPUT
OUTPUT
(Blank-Type)
OUTPUT
(A-Type)
se
ri
es
2
5~65
W
73
IDPV-45(A)
IDPV-25(A)
IDPV-65(A)
Features
• Constant voltage PWM style output mode
• IDPV-25/45: 90~295VAC input
• IDPV-65: 180~295VAC input only
• High efficiency up to 90%
• No load power consumption <0.5W (Blank-Type)
• Miniature PCB size
• Isolation class
II, no F.G.
AC input voltage range 90 ~ 295VAC ; 127 ~ 417VDC 180 ~ 295VAC ; 254~417VDC
AC inrush current (max.) Cold start, 30A at 230VAC
Setup time 500ms / 230VAC
PWM dimming signal 10V PWM signal, frequency range 300Hz~3kHz
Total harmonic distortion THD<20%
Short circuit protection Shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P: 3.75KVAC
Working temperature -20~+45
O
C -20~+40
O
C
Safety standards UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14, GB19510.1 approved
EMC standards EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, GB17743, GB17625.1
Connection (Input/Output) Blank-Type: 4+4P push-in terminal block, A-Type: 4+6P push-in terminal block
Dimension (LxWxH) mm 114.5x 72.5x 20 120 x 66.5 x 22 130 x 67.5 x 22
• Built-in 2 in 1 dimming function (0~10VDC or PWM signal)
• Built-in 12V/50mA auxiliary output (A-Type)
• Suitable for indoor LED strip lighting
• Protection: Short circuit
• 3 years warranty
IDPV-65/65A Series
Model No. Output Tol. Effi.
IDPV-65 -12
12V, 0~4.2A ±10% 85%
IDPV-65
-24
24V, 0~2.4A ±10% 87%
IDPV-65
-36
36V, 0~1.8A ±10% 88%
IDPV-65
-48
48V, 0~1.35A ±10% 89%
IDPV-65
-60
60V, 0~1.08A ±10% 90%
= Blank/A; Blank: without auxiliary output, A: with auxiliary function
IDPV-45/45A Series
IDPV-25/25A Series
Model No. Output Tol. Effi.
IDPV-45 -12
12V, 0~3A ±10% 84%
IDPV-45
-24
24V, 0~1.88A ±10% 86%
Model No. Output Tol. Effi.
IDPV-45 -36
36V, 0~1.25A ±10% 88%
IDPV-45
-48
48V, 0~0.94A ±10% 88%
IDPV-45
-60
60V, 0~0.75A ±10% 90%
= Blank/A; Blank: without auxiliary output, A: with auxiliary function
Model No. Output Tol. Effi.
IDPV-25 -12
12V, 0~1.8A ±10% 80%
IDPV-25
-24
24V, 0~1.05A ±10% 81%
IDPV-25
-36
36V, 0~0.7A ±10% 82%
IDPV-25
-48
48V, 0~0.52A ±10% 83%
IDPV-25
-60
60V, 0~0.42A ±10% 84%
= Blank/A; Blank: without auxiliary output, A: with auxiliary function
