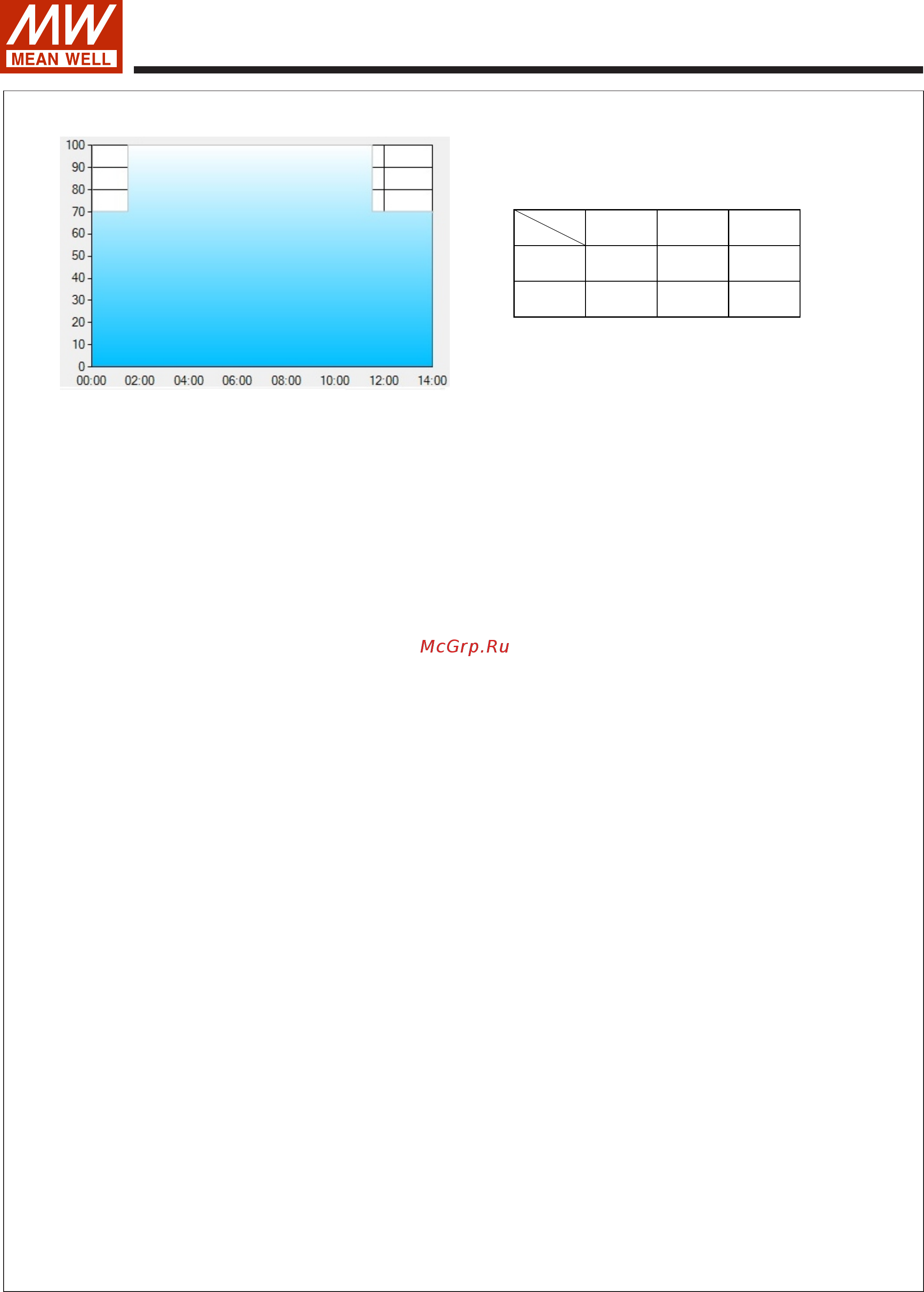

Ex: ◎ D03-Type: the profile recommended for tunnel lighting
Set up for D03-Type in Smart timer dimming software program:
TIME** 01:30
T1 T2 T3
11:00 ---
LEVEL** 70% 100% 70%
**: TIME matches Operating Time in the diagram whereas LEVEL matches Dimming Level.
Example: If a tunnel lighting application adopts D03-Type, when turning on the power supply at 4:30pm, for instance:
[1] The power supply will switch to the constant current level at 70% starting from 4:30pm.
[2] The power supply will switch to the constant current level at 100% in turn, starting from 6:00pm, which is 01:30 after the power supply turns on.
[3] The power supply will switch to the constant current level at 70% in turn, starting from 5:00am, which is 11:00 after the power supply turns on.
The constant current level remains till 6:30am, which is 14:00 after the power supply turns on.
Dimming Level(%)
Operating Time(HH:MM)
144~200W Constant Voltage + Constant Current LED Driver
ELG-200 series
File Name:ELG-200-SPEC 2020-09-25
