![ASRock X99 Extreme6/3.1 [82/102] Chipset coniguration](/img/pdf.png)
ASRock X99 Extreme6/3.1 [82/102] Chipset coniguration
![ASRock X99 Extreme6/3.1 [82/102] Chipset coniguration](/views2/1686114/page82/bg52.png)
76
English

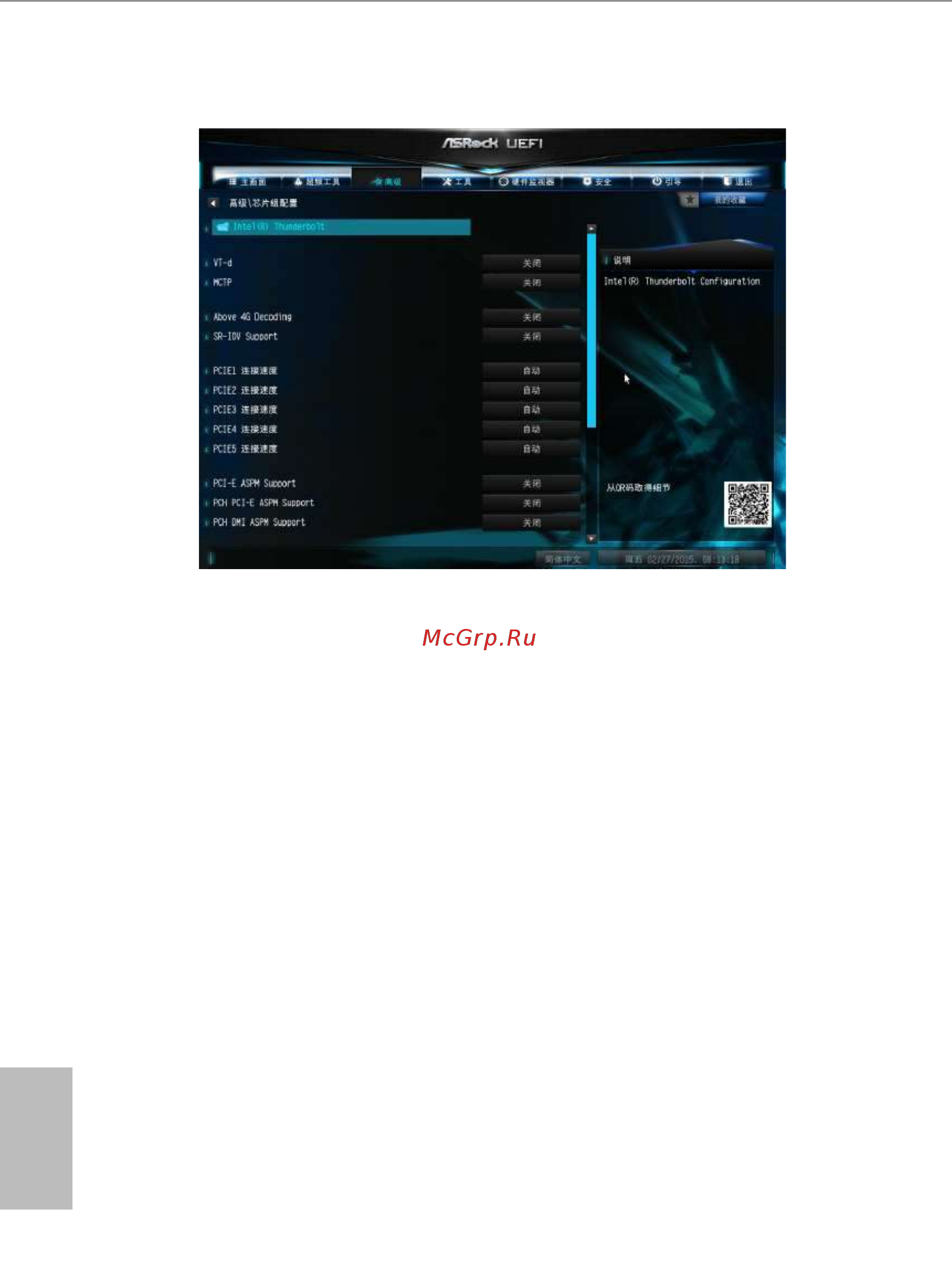

4.4.2 Chipset Conguration
Intel(R) Thunderbolt
Enable/Disable the Intel(R) underbolt function.
VT-d
Intel® Virtualization Technology for Directed I/O helps your virtual machine
monitor better utilize hardware by improving application compatibility and
reliability, and providing additional levels of manageability, security, isolation, and
I/O performance.
MCTP
Enable/disable the PCIe Management Component Transport Protocol.
Above 4G Decoding
Enable/disable the 64-bit capable devices to be decoded in above 4G address space.
*e function is only applied to system that supports 64-bit PCI decoding.
SR-IOV Support
Enable/disable the SR-IOV (Single Root IO Virtualization Support) if the system
has SR-IOV capable PCIe devices.
PCIE1 Link Speed
Select the link speed for PCIE1.
