19
English
X99 WS-E/10G / X99 WS-E

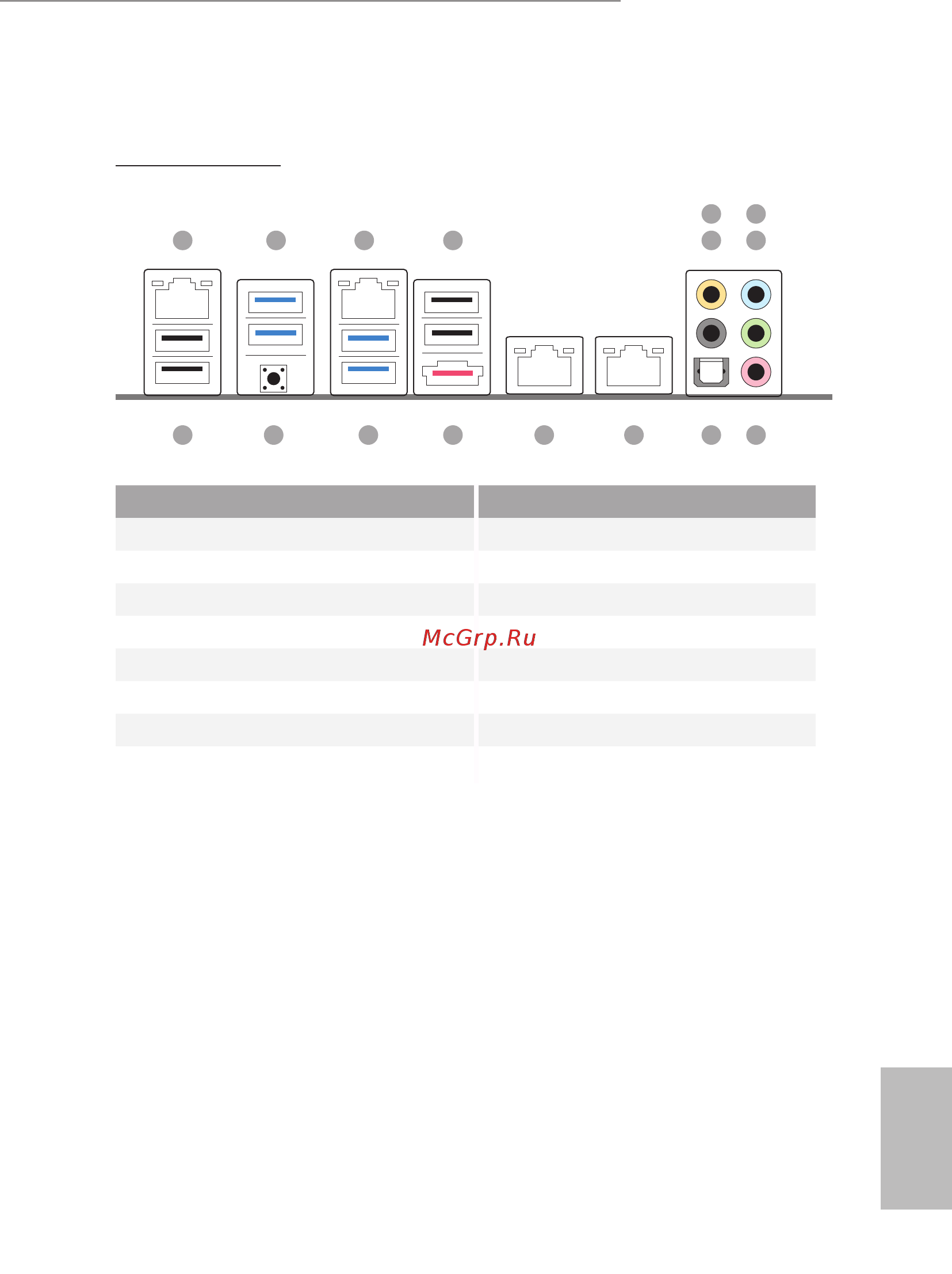

1.4 I/O Panel
No. Description No. Description
1 LAN RJ-45 Port (Intel® I210AT)* 9 Microphone (Pink)
2 USB 3.0 Ports (USB3_12) 10 Optical SPDIF Out Port
3 LAN RJ-45 Port (Intel® I210AT)* 11 LAN RJ-45 Port (Intel® X540)*
4 USB 2.0 Ports (USB34) 12 LAN RJ-45 Port (Intel® X540)*
5 Central / Bass (Orange) 13 eSATA Connector (eSATA1)***
6 Rear Speaker (Black) 14 USB 3.0 Ports (USB3_34)
7 Line In (Light Blue) 15 Clear CMOS Switch
8 Front Speaker (Lime)** 16 USB 2.0 Ports (USB2_12)
1 2 3 4
16
9101112131415
6
5
8
7
X99 WS-E/10G
