ASRock X79 Extreme6/GB / X79 Extreme6 Motherboard
Türkçe

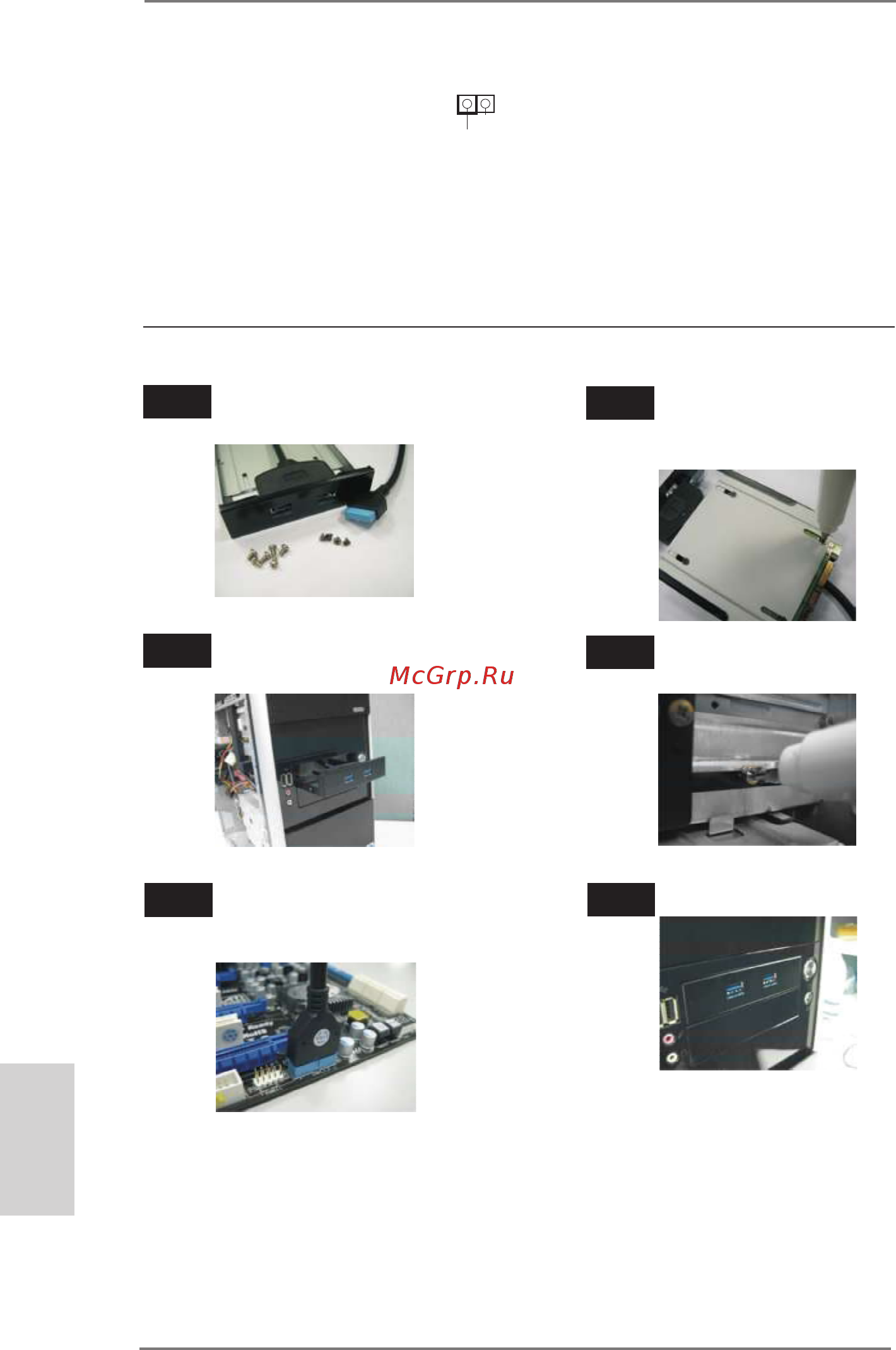

Ön USB 3.0 Panelinin Kurulum Kılavuzu
Ön USB 3.0 Panelini şasinin 2,5” sürücü
yuvasına kurun.
Adım 3
Adım 4
Ön USB 3.0 Panelini altı şasi vidası ile
sürücü yuvasına vidalayın.
Verilen Ön USB 3.0 Panelini, dört HDD
vidasını ve altı şasi vidasını hazırlayın.
Adım 1
Adım 2
2,5” HDD/SSD’yi Ön USB 3.0 Paneline
dört adet HDD vidasını kullanarak
vidalayın.
Ön USB 3.0 Paneli zaten kullanılıyor.
Ön USB 3.0 kablosunu anakarttaki USB 3.0
başlığına (USB3_4_5) takın.
Adım 5
Adım 6
HDMI_SPDIF Fişi HDMI_SPDIF şi, SPDIF ses
(2-pinli HDMI_SPDIF1)
çıkışını HDMI VGA kartına
(bkz. s.2 No. 42)
sağlar, sistemin HDMI Dijital
TV/projektör/LCD cihazlarını
bağlamasına izin verir. Lütfen
HDMI VGA kartının
HDMI_SPDIF konektörünü bu
şe bağlayın.
SPDIFOUT
GND
1
