31
ASRock X79 Extreme6/GB / X79 Extreme6 Motherboard
English
2.5.2.7 ADVANCED FEATURES

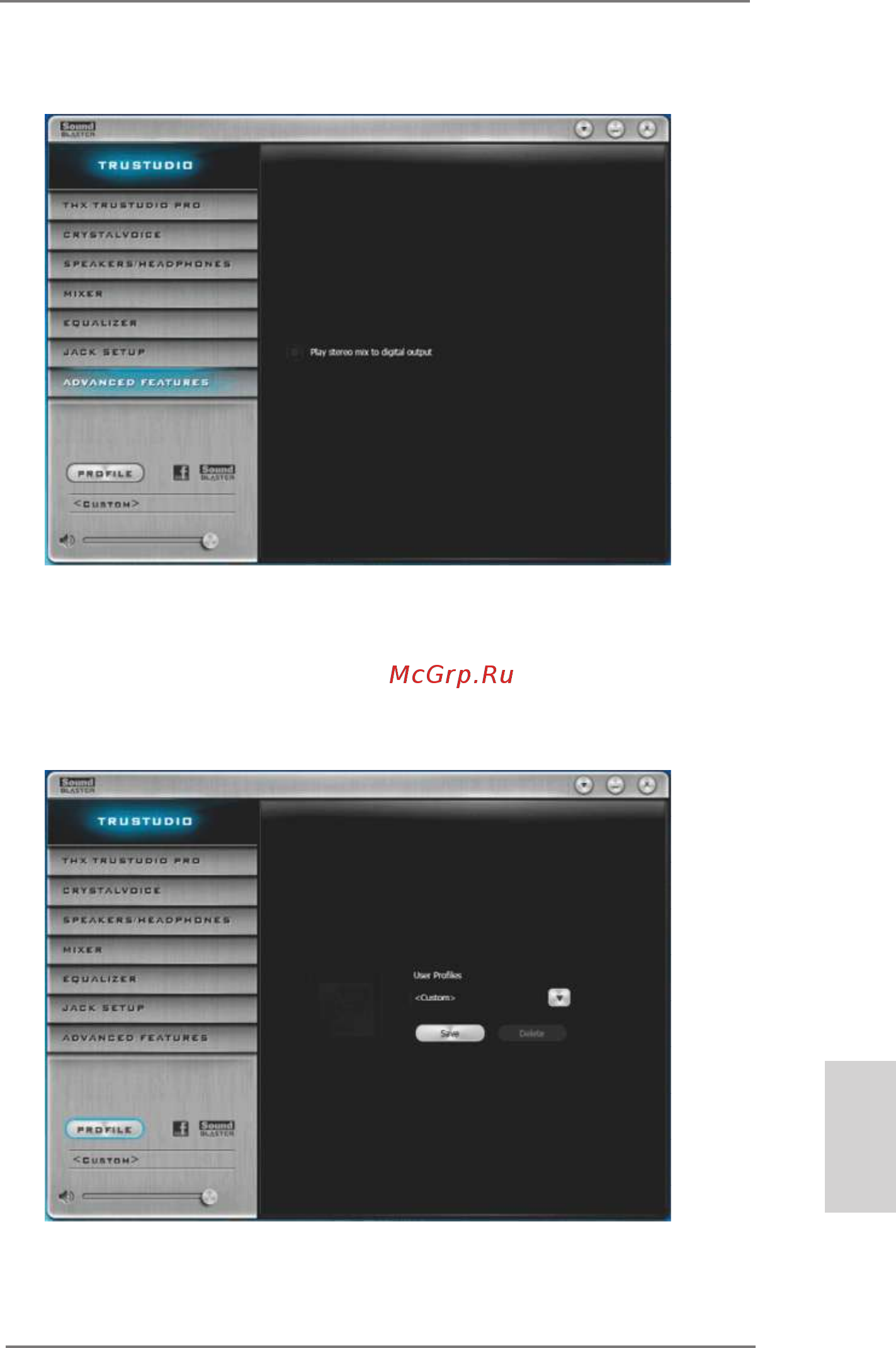

Play stereo mix to digital output
Enable or disable play stereo mix to digital output.
2.5.2.8 PROFILE
User Proles
You can save, load or delete your user proles. The default is <Custom>.
