160
�简体中文
�简体中文
Fatal1ty Z97 Professional Series

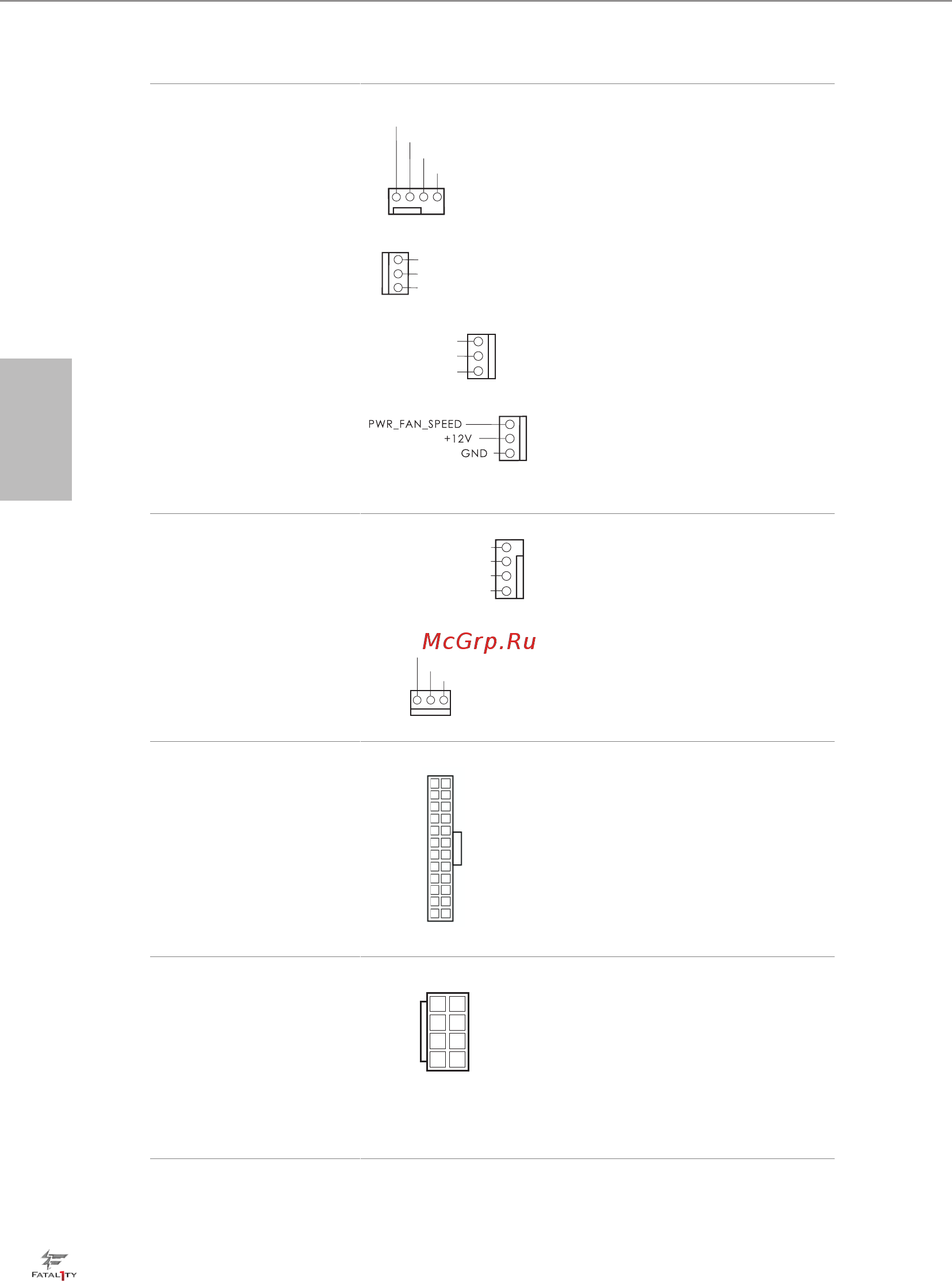

机箱和电源风扇接口
(4 针 CHA_FAN1)
( 见第 1 页，第 24 个 )
(3 针 CHA_FAN2)
( 见第 1 页，第 36 个 )
(3 针 CHA_FAN3)
( 见第 1 页，第 37 个 )
(3 针 PWR_FAN1)
( 见第 1 页，第 6 个 )
请将风扇线连接到风扇
接口并使黑线匹配接地
针脚。
CPU 风扇接口
(4 针 CPU_FAN1)
( 见第 1 页，第 2 个 )
(3 针 CPU_FAN2)
( 见第 1 页，第 5 个 )
此主板提供 4 针 CPU 风
扇 ( 静音风扇 ) 接口。如
果您打算连接 3 针 CPU
风扇，请将它连接到针
脚 1-3。
ATX 电源接口
(24 针 ATXPWR1)
( 见第 1 页，第 7 个 )
此主板提供 24 针 ATX
电源接口。要使用 20 针
ATX 电源，请沿针脚 1
和针脚 13 插接它。
ATX 12V 电源接口
(8 针 ATX12V1)
( 见第 1 页，第 1 个 )
此主板提供 8 针 ATX
12V 电源接口。要使用 4
针 ATX 电源，请沿针脚
1 和针脚 5 插接它。
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTR
OL
GND
FAN_SPEED
FAN_VOLTAG
E
GND
CHA_FA
N_SPEED
FAN_VOLTAGE
GND
CPU_FAN_SPEED
FAN_VOLTAGE
GN D
+12V
FAN_SPEED
FAN_SPEED_CONTROL
1
2
3
4
12
1
24
13
5
8
1
4
