2
ASRock Z68 Extreme3 Gen3 Motherboard

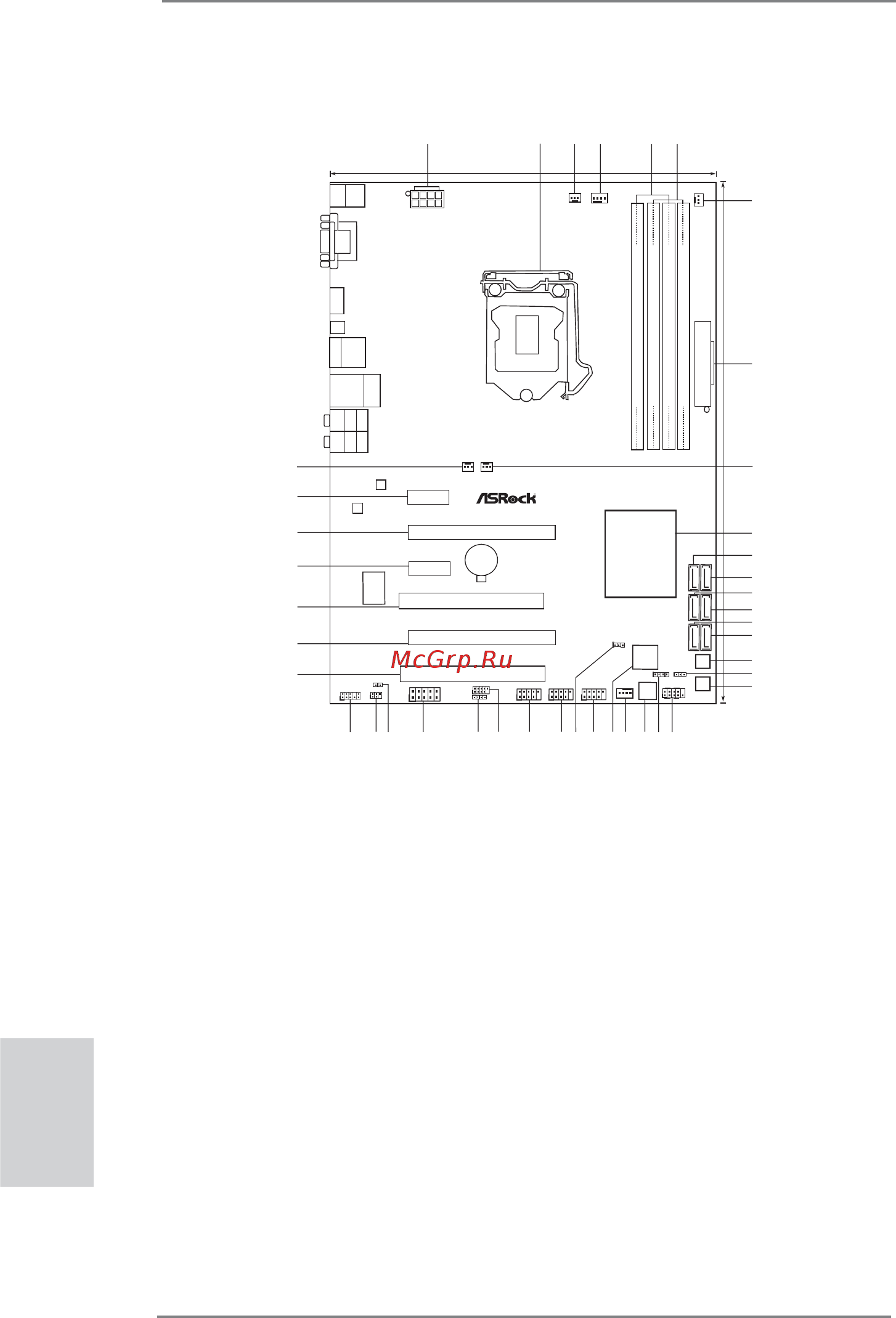

Motherboard Layout
English
1 ATX 12V Power Connector (ATX12V1) 22 64Mb SPI Flash
2 1155-Pin CPU Socket 23 Chassis Fan Connector (CHA_FAN1)
3 Power Fan Connector (PWR_FAN1) 24 Dr. Debug
4 CPU Fan Connector (CPU_FAN1) 25 USB 2.0 Header (USB12_13, Black)
5 2 x 240-pin DDR3 DIMM Slots 26 Clear CMOS Jumper (CLRCMOS1)
(Dual Channel: DDR3_A1, DDR3_B1, Black) 27 USB 2.0 Header (USB10_11, Black)
6 2 x 240-pin DDR3 DIMM Slots 28 USB 2.0 Header (USB8_9, Black)
(Dual Channel: DDR3_A2, DDR3_B2, Black) 29 USB 2.0 Header (USB6_7, Black)
7 CPU Fan Connector (CPU_FAN2) 30 Consumer Infrared Module Header
8 ATX Power Connector (ATXPWR1) (CIR1, Gray)
9 Chassis Fan Connector (CHA_FAN2) 31 COM Port Header (COM1)
10 Intel Z68 Chipset 32 HDMI_SPDIF Header
11 SATA3 Connector (SATA3_1, Gray) (HDMI_SPDIF1, Black)
12 SATA3 Connector (SATA3_0, Gray) 33 Infrared Module Header (IR1)
13 SATA2 Connector (SATA2_3, Black) 34 Front Panel Audio Header
14 SATA2 Connector (SATA2_2, Black) (HD_AUDIO1, Black)
15 SATA2 Connector (SATA2_5, Black) 35 PCI Slot (PCI2)
16 SATA2 Connector (SATA2_4, Black) 36 PCI Express 3.0 x16 Slot (PCIE4, Black)
17 Reset Switch (RSTBTN) 37 PCI Slot (PCI1)
18 Power LED Header (PLED1) 38 PCI Express 2.0 x1 Slot (PCIE3, Black)
19 Power Switch (PWRBTN) 39 PCI Express 3.0 x16 Slot (PCIE2, Black)
20 System Panel Header (PANEL1, Black) 40 PCI Express 2.0 x1 Slot (PCIE1, Black)
21 Chassis Speaker Header (SPEAKER 1, Black) 41 Chassis Fan Connector (CHA_FAN3)
Intel
Z68
DDR3_A1 (64 bit, 240-pin module)
DDR3_A2 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
DDR3_B2 (64 bit, 240-pin module)
ATXPWR1
Dr.
Debug
CMOS
Battery
Z68 Extreme3 Gen3
64Mb
BIOS
PWRBTN
RSTBTN
21.8cm (8.6 in)
30.5cm (12.0 in)
Super
I/O
SATA2_4_5 SATA2_2_3
S
ATA3_0_1
ATX12V1
PWR_FAN1
CPU_FAN1
CPU_FAN2
CLRCMOS1
1
CHA_FAN3
CHA_FAN2
SATA3 6Gb/s
PLED1
1
HDLED RESET
PLED PWRBTN
PANEL1
1
SPEAKER1
1
USB12_13
1
USB10_11
1
USB6_7
1
CIR1
1
USB8_9
1
CHA_FAN1
IR1
1
1
HD_AUDIO1
COM1
1
1
HDMI_SPDIF1
LAN
PHY
AUDIO
CODEC
HDMI 1.4a
DDR3 2133
RoHS
X
Fast USB
PCI Express 3.0
ErP/EuP Ready
USB 3.0
Designed in Taipei
DX10.1
PCIE1
PCIE2
PCIE3
PCIE4
PCI1
PCI2
USB 2.0
T: U SB 0
B: USB1
PS2
Keyboard
VGA1
DVI_CON1
Clr
CMOS
HDMI1
USB 2.0
T:USB2
B: USB3
eSATA_1
Top:
RJ-45
USB 3.0
T: U SB 4
B: USB5
Top:
Central/Bass
Center:
REAR SPK
Top:
LINE IN
Center:
FRONT
Bottom:
Optical
SPDIF
Bottom:
MIC IN
1
2
3
4
5
6
7
11
12
13
15
8
9
10
14
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
