13

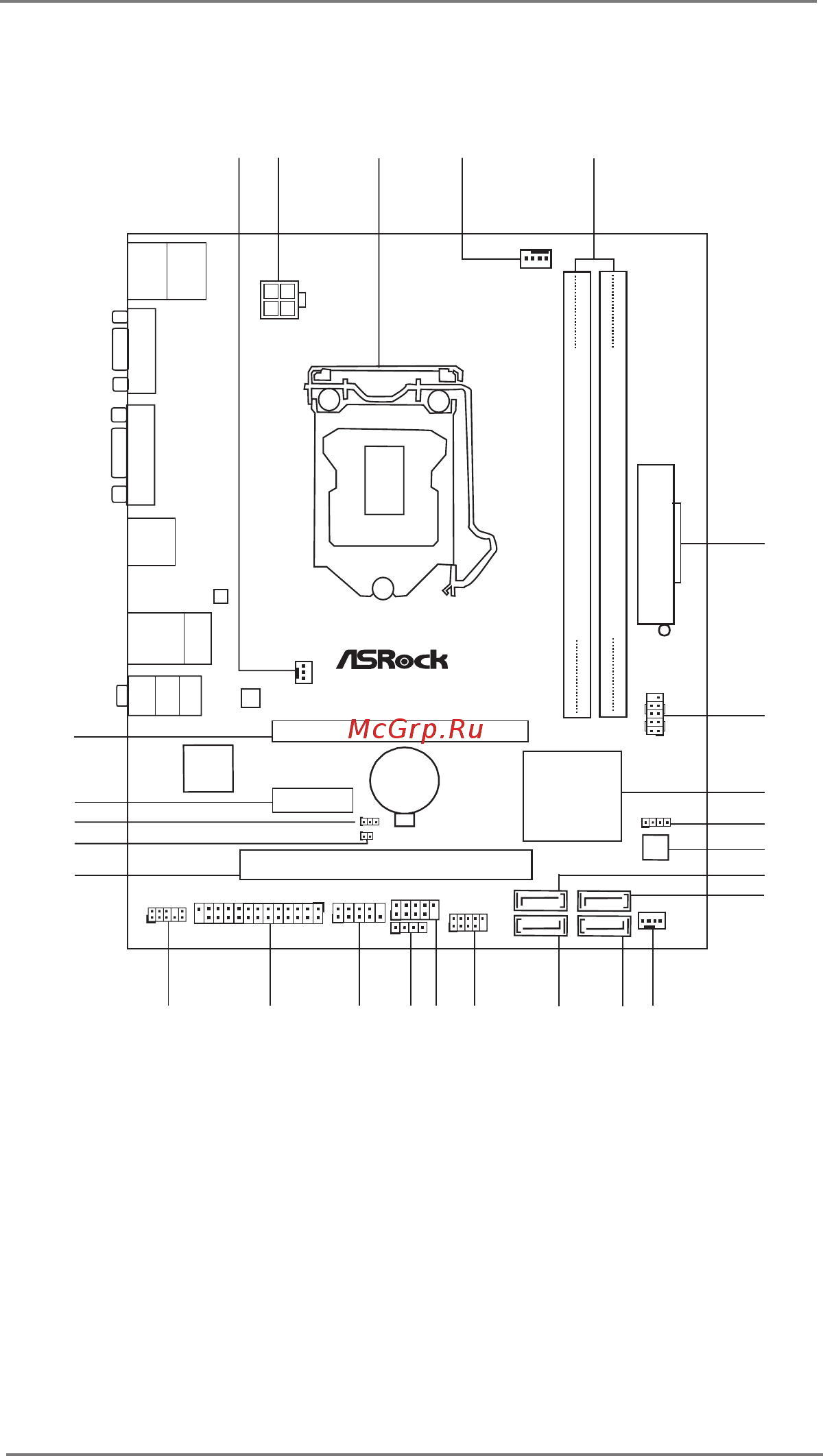

1.4 Motherboard Layout
1 Power Fan Connector (PWR_FAN1) 14 SATA2 Connector (SATA_0)
2 ATX 12V Power Connector (ATX12V1) 15 SATA2 Connector (SATA_2)
3 1155-Pin CPU Socket 16 USB 2.0 Header (USB6_7)
4 CPU Fan Connector (CPU_FAN1) 17 USB 2.0 Header (USB4_5)
5 2 x 240-pin DDR3 DIMM Slots 18 Consumer Infrared Module Header (CIR1)
(Dual Channel: DDR3_A1, DDR3_B1) 19 COM Port Header (COM1)
6 ATX Power Connector (ATXPWR1) 20 Print Port Header (LPT1)
7 System Panel Header (PANEL1) 21 Front Panel Audio Header (HD_AUDIO1)
8 Intel H61 Chipset 22 PCI Slot (PCI1)
9 Chassis Speaker Header (SPEAKER1) 23 Chassis Intrusion Header (CI1)
10 32Mb SPI Flash 24 Clear CMOS Jumper (CLRCMOS1)
11 SATA2 Connector (SATA_3) 25 PCI Express 2.0 x1 Slot (PCIE2)
12 SATA2 Connector (SATA_1) 26 PCI Express 3.0 x16 Slot (PCIE1)
13 Chassis Fan Connector (CHA_FAN1)
Intel
H61
ATXPWR1
DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
PCIE1
Top:
RJ-45
USB 2.0
T: USB 2
B: U SB3
PS2
Keyboard
USB 2.0
T: U SB0
B: USB1
Top:
LIN E IN
Cen ter :
FRO NT
Bot tom :
MIC IN
Super
I/O
C MOS
B attery
PWR _FAN 1
CPU _FAN 1
H61M-DPS
LAN
PHY
1
HD_ AUDI O1
AUD IO
COD EC
32Mb
BIOS
1
SPEA KER1
3 4
5
6
12
22
21
SATA_ 0
SATA_ 1
SATA_ 2
SATA_ 3
PS2
Mouse
CHA _FAN1
USB 6_7
1
X
Fast LAN
X
Fast USB
RoH S
COM 1
1
LPT1
HDLE D RE SET
PLED PW RBTN
PANEL 1
1
X
Fast RAM
ATX1 2V1
USB 4_5
CIR 1
1
1
VGA1
DVI1
1
2
7
8
9
13
15
17
18
19
20
10
11
14
23
16
PCIE2
PCI1
CLR CMOS1
1
CI1
1
24
26
25
