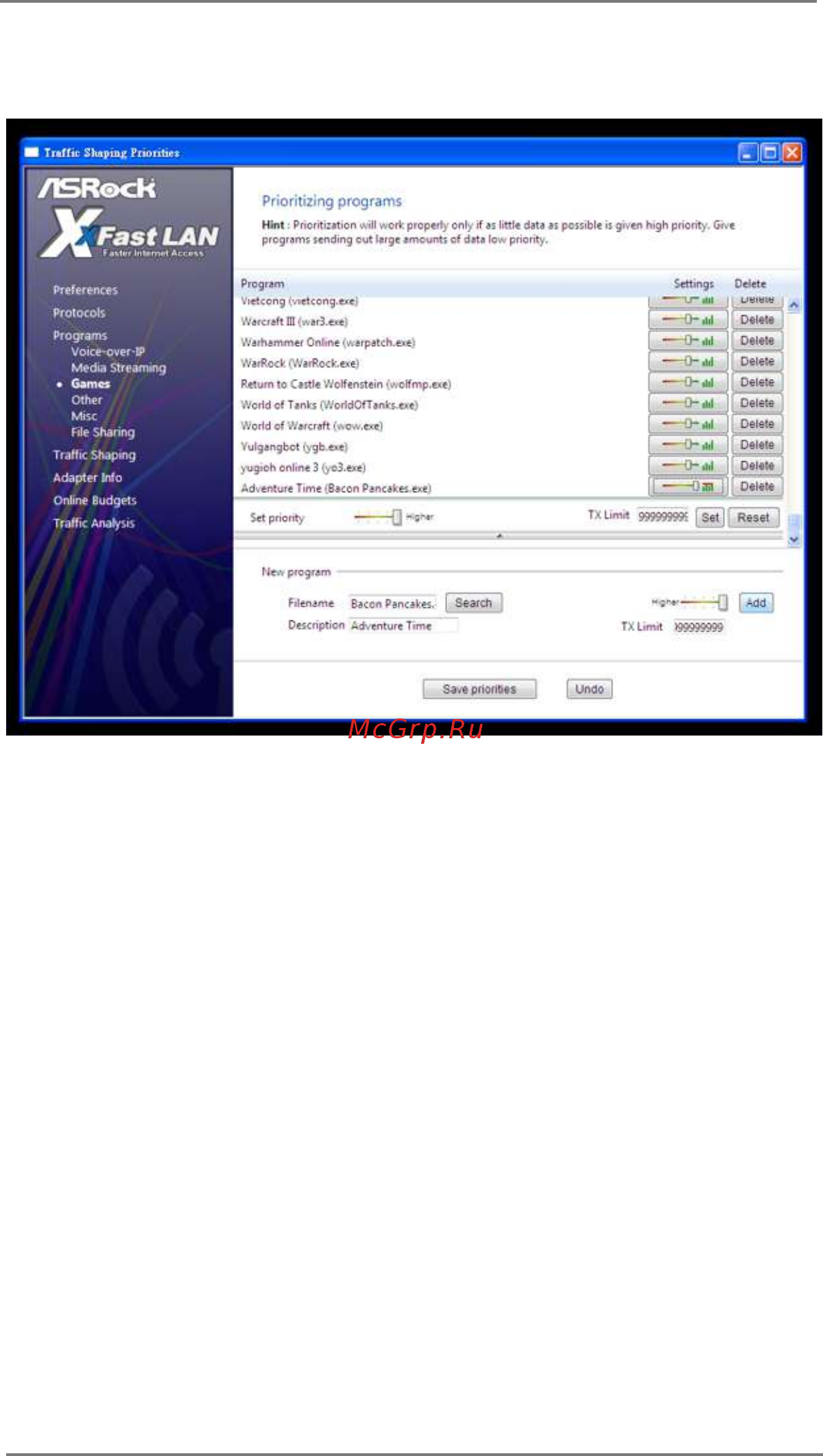

Adding a new application and changing its priority

Click search and choose a new program you wish to add. You can also type in a

short description for the program.

Set the priority for the program and TX Limit then click Add to conrm.

Hit the switch button to change congurations or Delete to remove the application

from the priority list.
