32

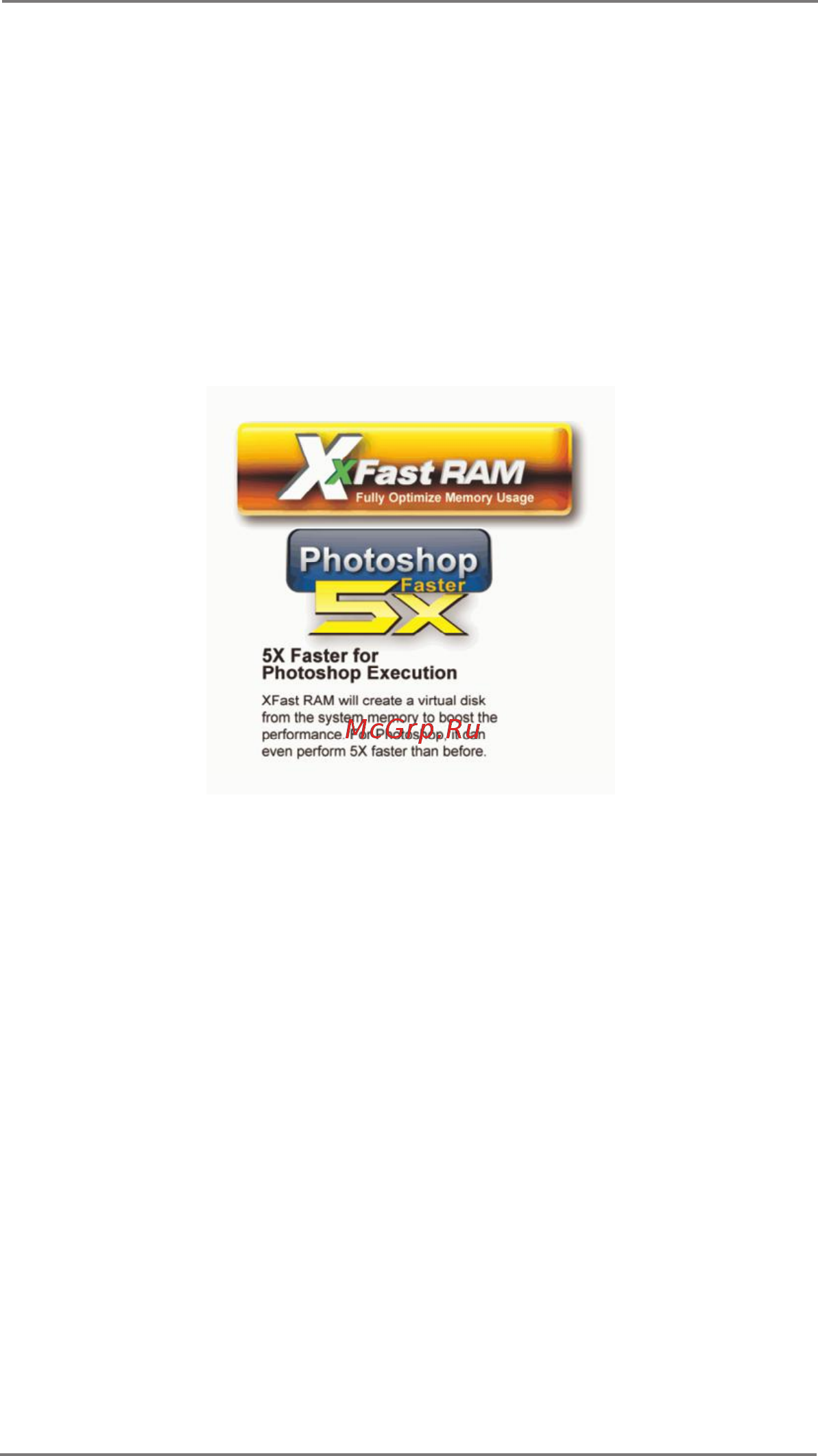

2.11.1 ASRock XFast RAM
ASRock XFast RAM is a new function that is included in ASRock Extreme Tuning
Utility (AXTU). It fully utilizes the memory space that cannot be used under Win-
dows
®
32-bit OS. ASRock XFast RAM shortens the loading time of previously visited
websites, making web surng faster than ever. And it also boosts the speed of
Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that
it reduces the frequency of accessing your SSDs or HDDs in order to extend their
lifespan.
