39

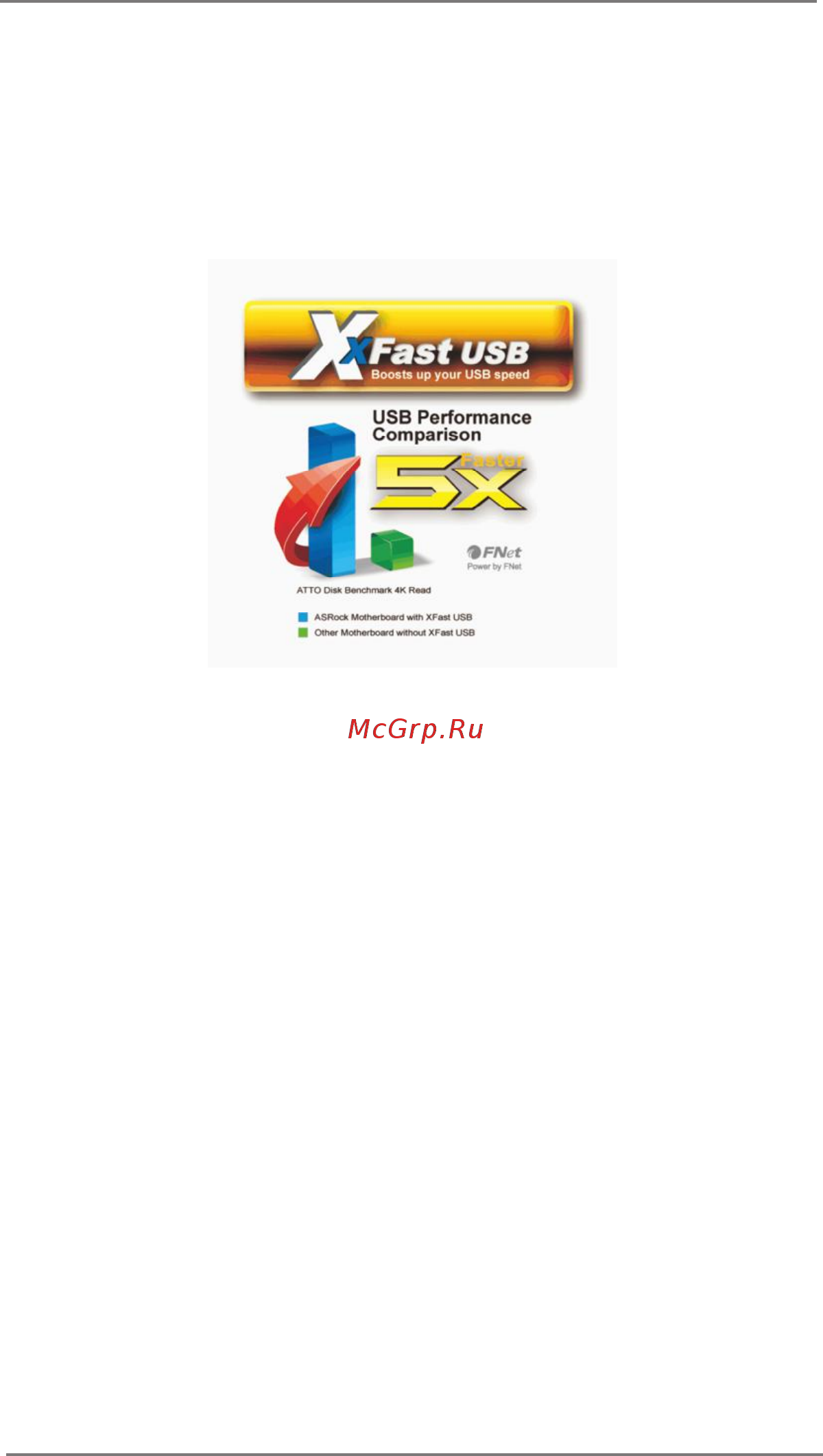

2.11.3 ASRock XFast USB
Not only does ASRock XFast USB boost up the performance of USB 2.0 storage
devices, but also USB 3.0 devices. Users may experience up to ve times faster
USB data transfer speed!
