56

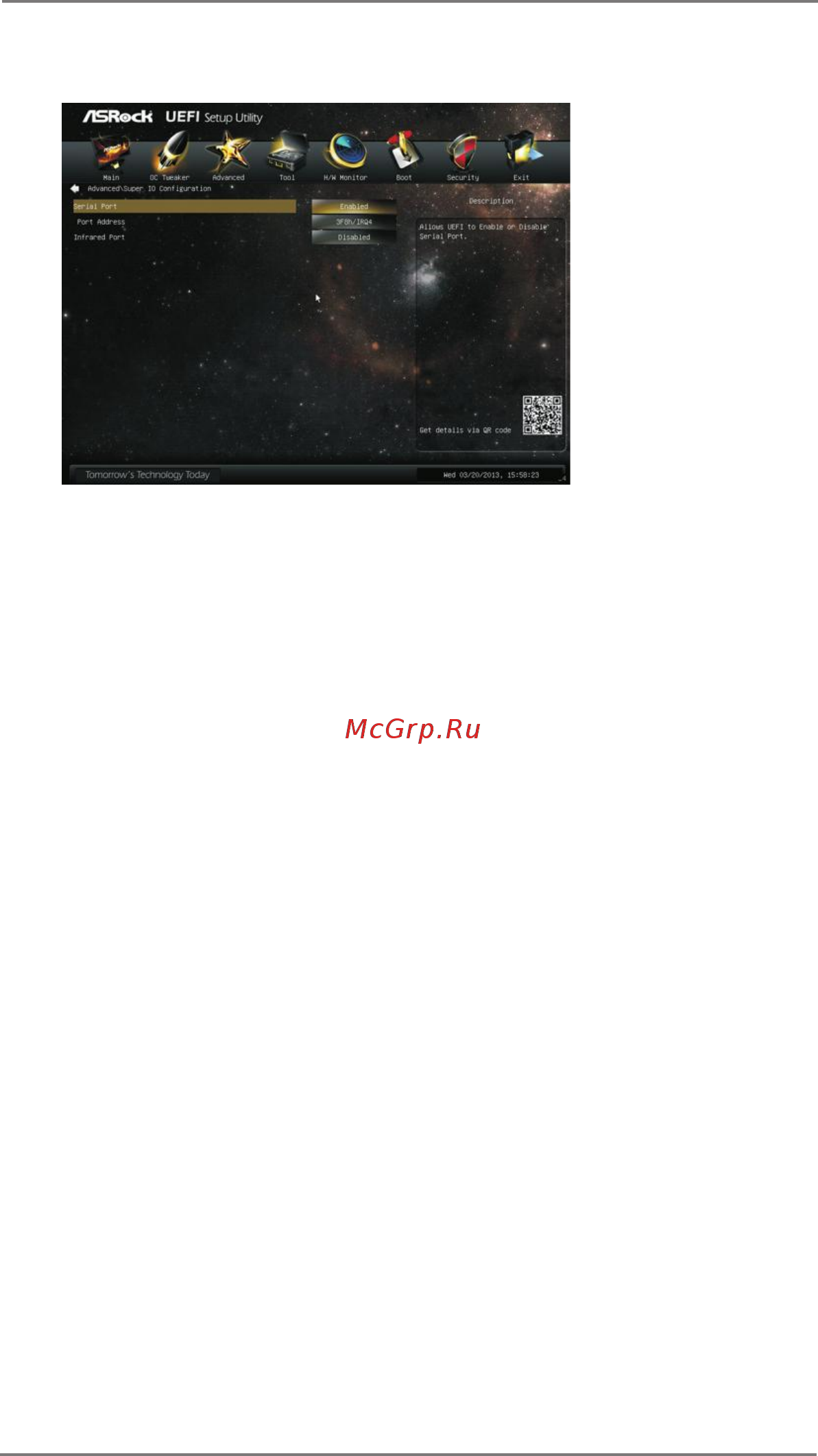

3.4.7SuperIOConguration
Serial Port
Use this item to enable or disable the onboard serial port.
Port Address
Use this item to set the address for the onboard serial port.
Conguration options: [3F8 / IRQ4] and [3E8 / IRQ4].
Infrared Port
Use this item to enable or disable the onboard infrared port.
* Serial Port is for H61M-PS4 only.
