ASRock J3160TM-ITX [20/56] English

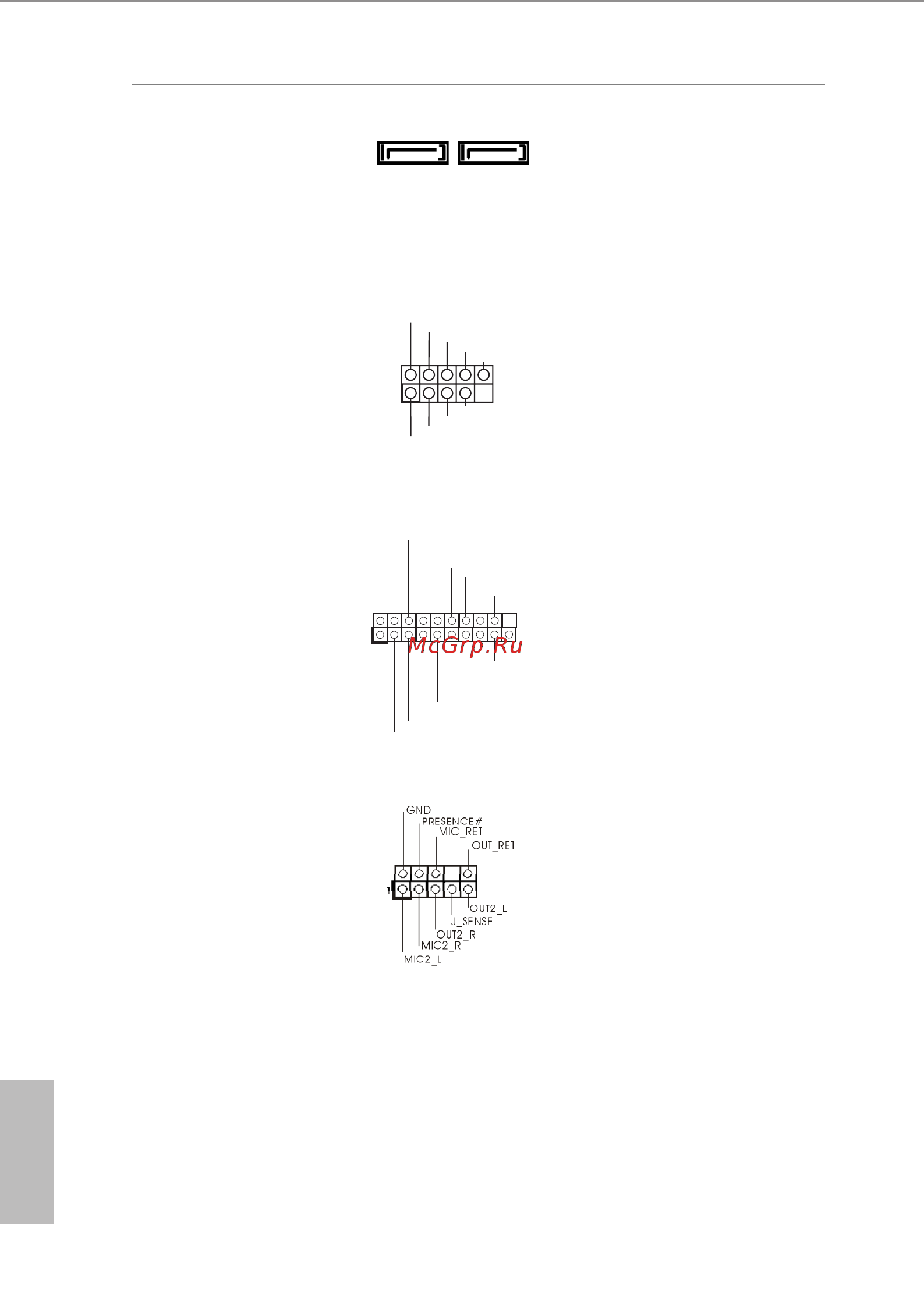

![ASRock J3160TM-ITX [20/56] English](/views2/1159596/page20/bg14.png)
15
English
Serial ATA3 Connectors
(SATA3_1:
see p.5, No. 18)
(SATA3_2:
see p.5, No. 17)
ese two SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
USB 2.0 Headers
(9-pin USB_23)
(see p.5, No. 10)
(9-pin USB_45)
(see p.5, No. 2)
Besides two USB 2.0 ports
on the I/O panel, there
are two headers on this
motherboard. Each USB
2.0 header can support
two ports.
USB 3.0 Header
(19-pin USB3_2_3)
(see p.5, No. 1)
Besides two USB 3.0 ports
on the I/O panel, there
is one header on this
motherboard. is USB
3.0 header can support
two ports.
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.5, No. 15)
is header is for
connecting audio devices
to the front audio panel.
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
1
ID
In tA_P_D+
In tA_P_D-
GN D
In tA_P_SS TX+
In tA_P_SS TX-
GN D
In tA_P_SS RX+
Vb us
In tA_P_D+
In tA_P_D-
GN D
In tA_P_SS TX+
In tA_P_SS TX-
GN D
In tA_P_SS RX+
In tA_P_SSRX -
Vb us
In tA_P_SSRX -
SATA3_1 SATA3_2
