ASRock J3160TM-ITX [50/56] Hardware health event monitoring screen
![ASRock J3160TM-ITX [50/56] Hardware health event monitoring screen](/views2/1159596/page50/bg32.png)
45
English
N3700M
N3150M
N3050M

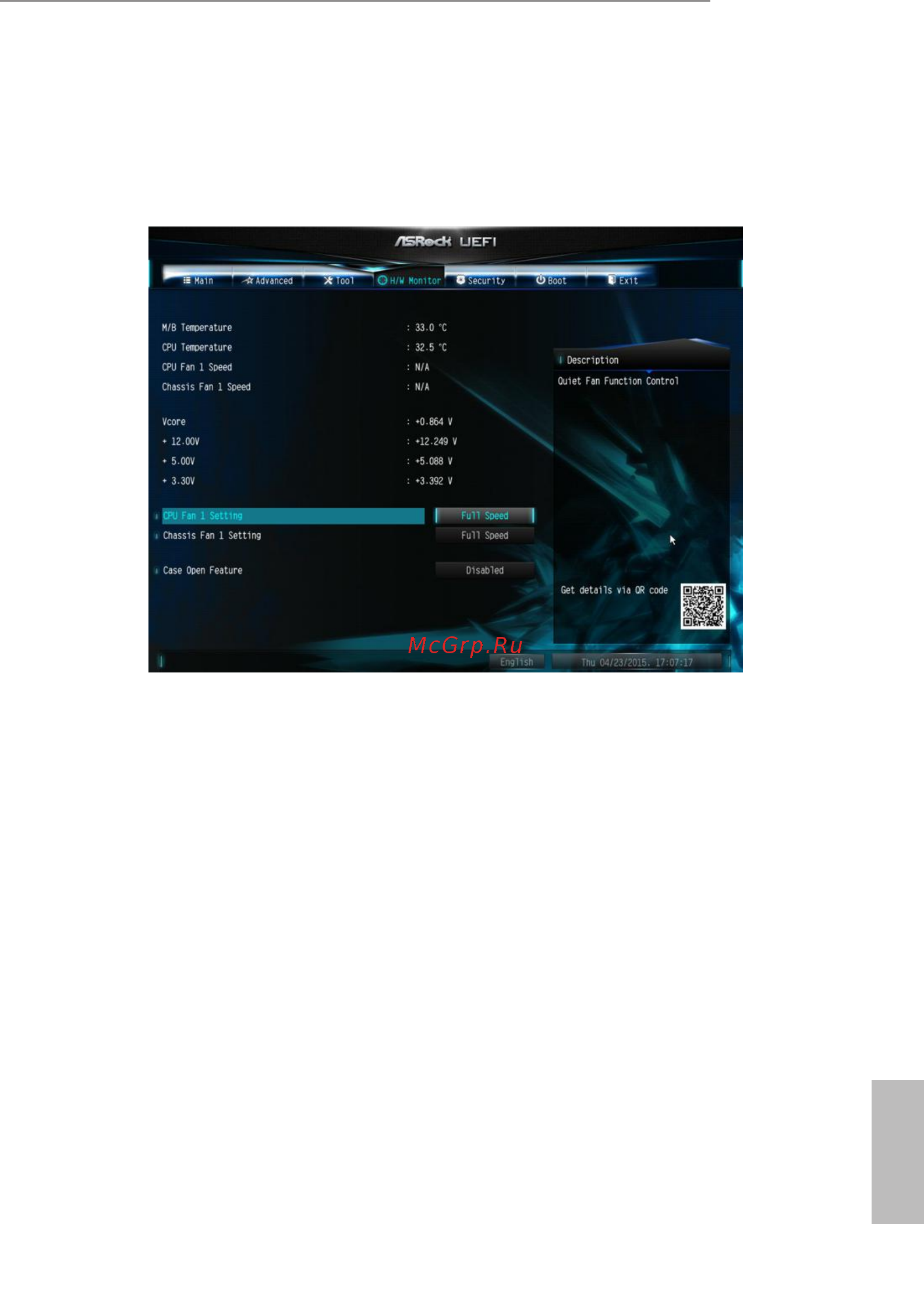

4.5 Hardware Health Event Monitoring Screen
is section allows you to monitor the status of the hardware on your system,
including the parameters of the CPU temperature, motherboard temperature, fan
speed and voltage.
CPU Fan 1 Setting
is allows you to set CPU fan 1’s speed. Conguration options: [Full On] and
[Automatic Mode]. e default value is [Full On].
Chassis Fan 1 Setting
is allows you to set chassis fan 1’s speed. Conguration options: [Full On],
[Automatic Mode] and [Manual]. e default value is [Full On].
Case Open Feature
Enable or disable Case Open Feature to detect whether the chassis cover has been
removed.
