33
English
N3700M
N3150M
N3050M

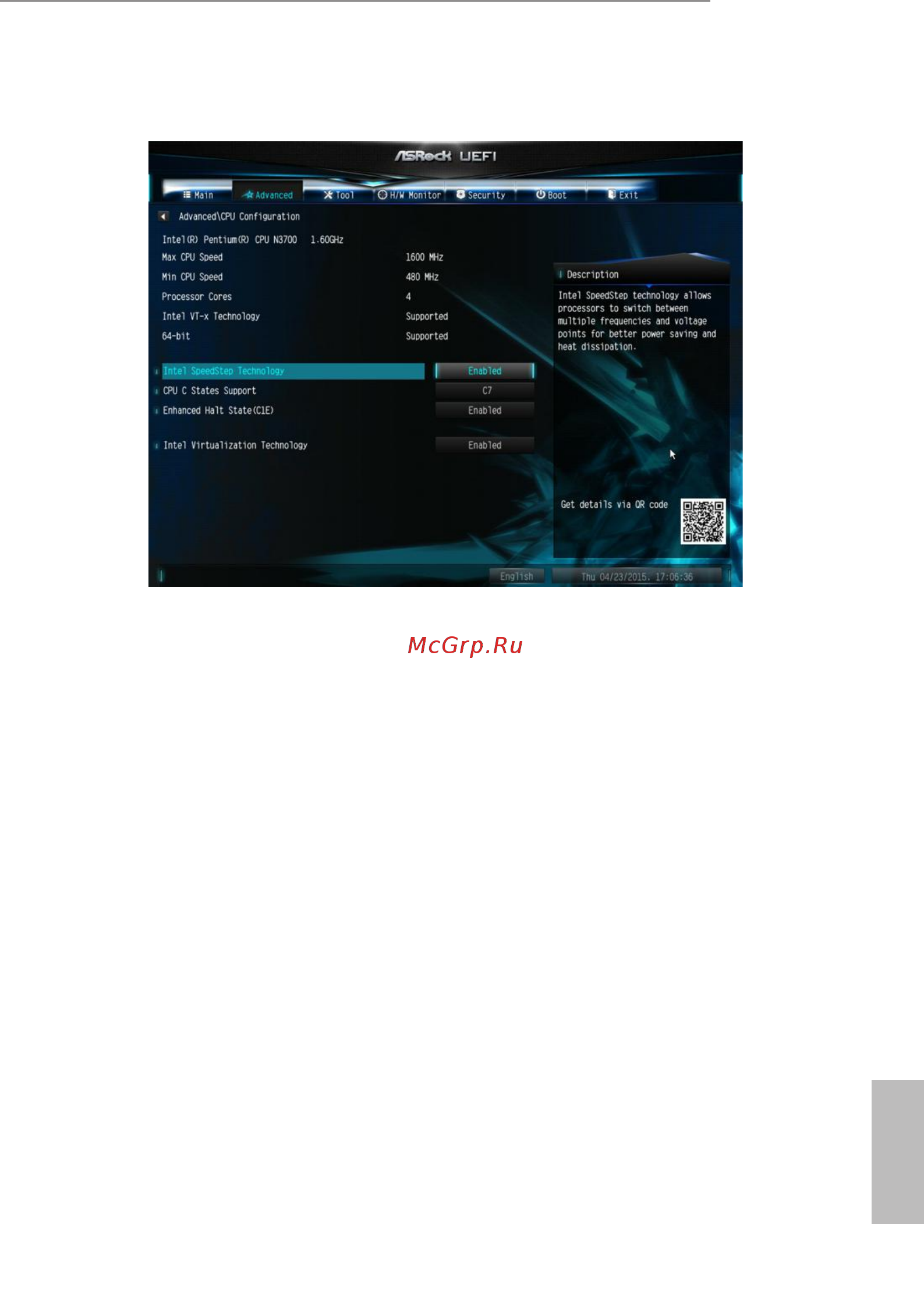

4.3.1 CPU Conguration
Intel SpeedStep Technology
Intel SpeedStep technology allows processors to switch between multiple
frequencies and voltage points for better power saving and heat dissipation.
CPU C States Support
Enable CPU C States Support for power saving. It is recommended to keep C1, C6
and C7 all enabled for better power saving.
Enhanced Halt State (C1E)
Enable Enhanced Halt State (C1E) for lower power consumption.
Intel Virtualization Technology
Intel Virtualization Technology allows a platform to run multiple operating systems
and applications in independent partitions, so that one computer system can
function as multiple virtual systems.
Power Gear
Toggle between three operational modes (Eco, Normal and Sport) to maximize
performance or conserve energy.
Eco Mode: Reduces your computer’s performance and saves energy.
Normal Mode: Balance performance with power consumption.
Sport Mode: Use more power to achieve the highest performance.
