ASRock G41M-VS3 R2.0 — подключение и настройка аудиоразъемов на материнской плате [12/51]
![ASRock G41M-VS3 R2.0 [12/51] Off no activity off 10mbps connection blinking data activity orange 100mbps connection green 1gbps connection](/views2/1689164/page12/bgc.png)
1212
1212
12

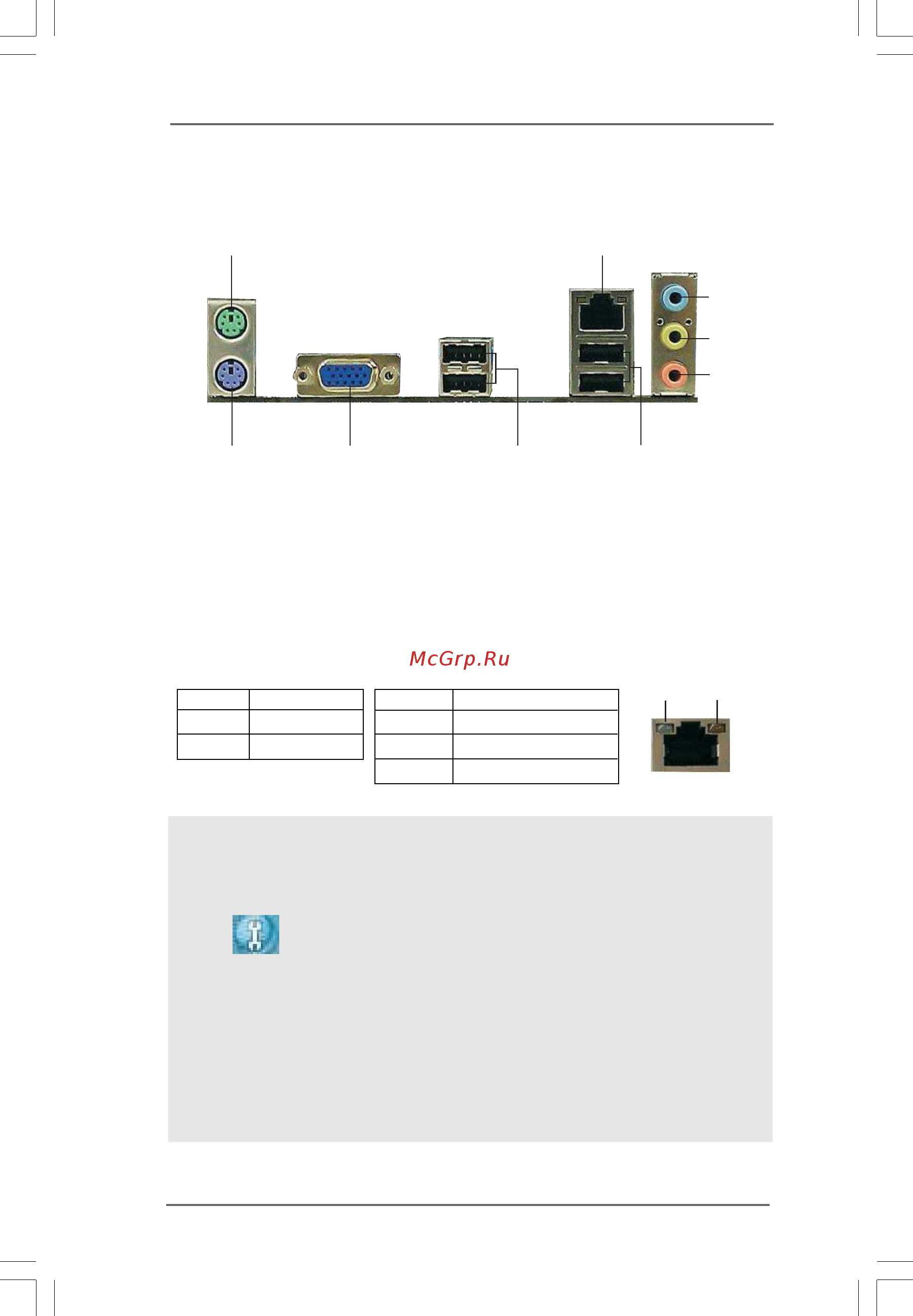

1.4 I/O P1.4 I/O P
1.4 I/O P1.4 I/O P
1.4 I/O P
anel (G41M-anel (G41M-
anel (G41M-anel (G41M-
anel (G41M-
VGS3)VGS3)
VGS3)VGS3)
VGS3)
1 PS/2 Mouse Port (Green) 6 USB 2.0 Ports (USB01)
* 2 RJ-45 Port 7 USB 2.0 Ports (USB23)
3 Line In (Light Blue) 8 VGA Port
4 Line Out (Lime) 9 PS/2 Keyboard Port (Purple)
5 Microphone (Pink)
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Activity Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
Green 1Gbps connection
LAN Port
ACT/LINK
LED
SPEED
LED
1
2
4
3
5
6
7
89
To enable Multi-Streaming function, you need to connect a front panel audio cable to the front
panel audio header. Please refer to below steps for the software setting of Multi-Streaming.
For Windows
®
XP:
After restarting your computer, you will find “Mixer” tool on your system. Please select “Mixer
ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or
“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker
and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then
reboot your system.
For Windows
®
7 / Vista
TM
:
After restarting your computer, please double-click “Realtek HD Audio Manager” on the
system tray. Set “Speaker Configuration” to “Quadraphonic” or “Stereo”. Click “Device
advanced settings”, choose “Make front and rear output devices playbacks two different audio
streams simultaneously”, and click “ok”. Then reboot your system.
