ASRock G41M-VS3 R2.0 [13/51] I o p 1 i o p 1 i o p 1 i o p 1 i o panel g41m anel g41m anel g41m anel g41m anel g41m vs3 vs3 vs3 vs3 vs3

1313

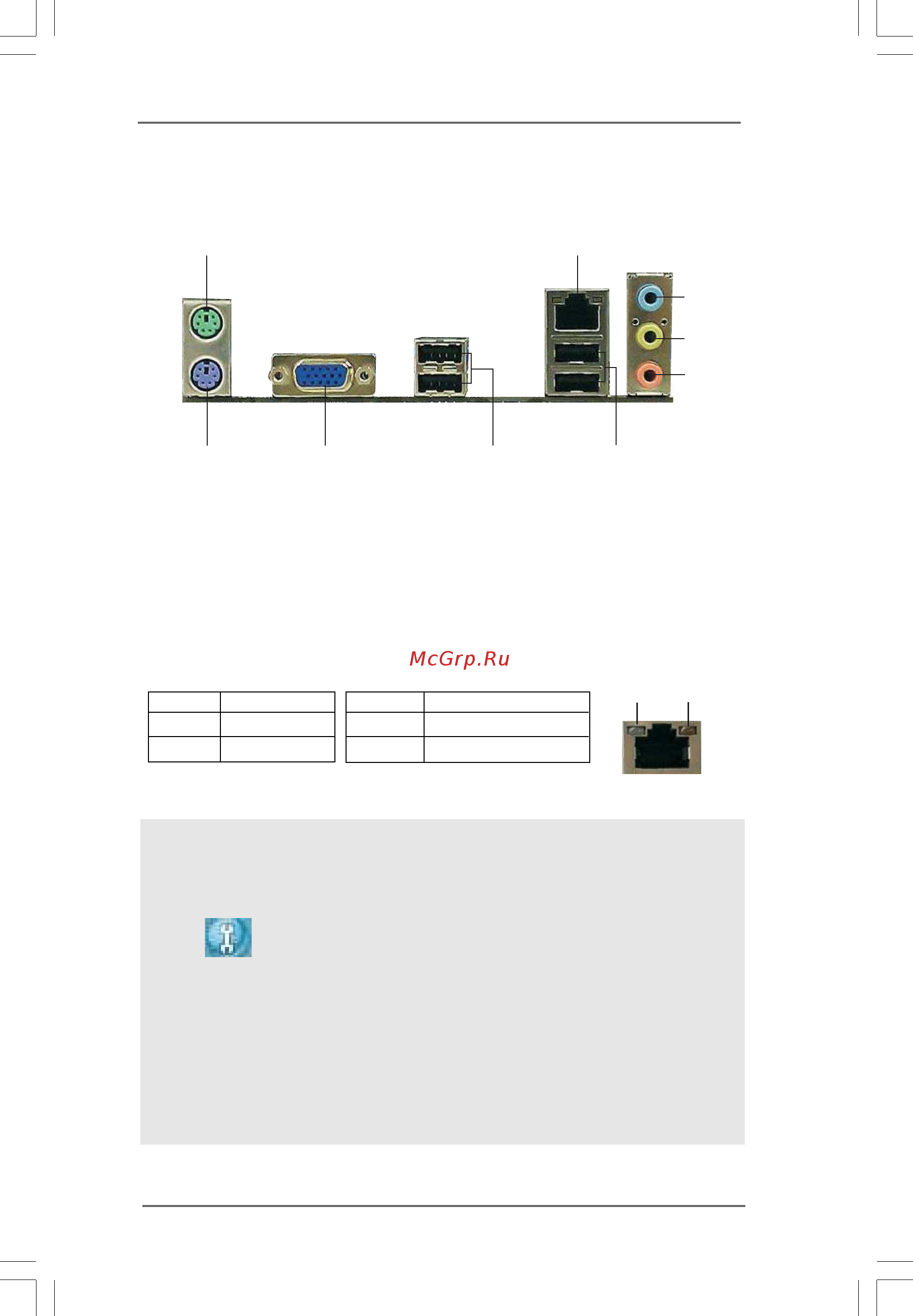

1.5 I/O P1.5 I/O P

1.5 I/O P

anel (G41M-anel (G41M-

anel (G41M-

VS3)VS3)

VS3)

1 PS/2 Mouse Port (Green) 6 USB 2.0 Ports (USB01)

* 2 RJ-45 Port 7 USB 2.0 Ports (USB23)

3 Line In (Light Blue) 8 VGA Port

4 Line Out (Lime) 9 PS/2 Keyboard Port (Purple)

5 Microphone (Pink)

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Activity Off 10Mbps connection

Blinking Data Activity Green 100Mbps connection

LAN Port

ACT/LINK

LED

SPEED

LED

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. Please refer to below steps for the software setting of Multi-Streaming.

For Windows

XP:

After restarting your computer, you will find “Mixer” tool on your system. Please select “Mixer

ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or

“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker

and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then

reboot your system.

For Windows

7 / Vista

After restarting your computer, please double-click “Realtek HD Audio Manager” on the

system tray. Set “Speaker Configuration” to “Quadraphonic” or “Stereo”. Click “Device

advanced settings”, choose “Make front and rear output devices playbacks two different audio

streams simultaneously”, and click “ok”. Then reboot your system.
