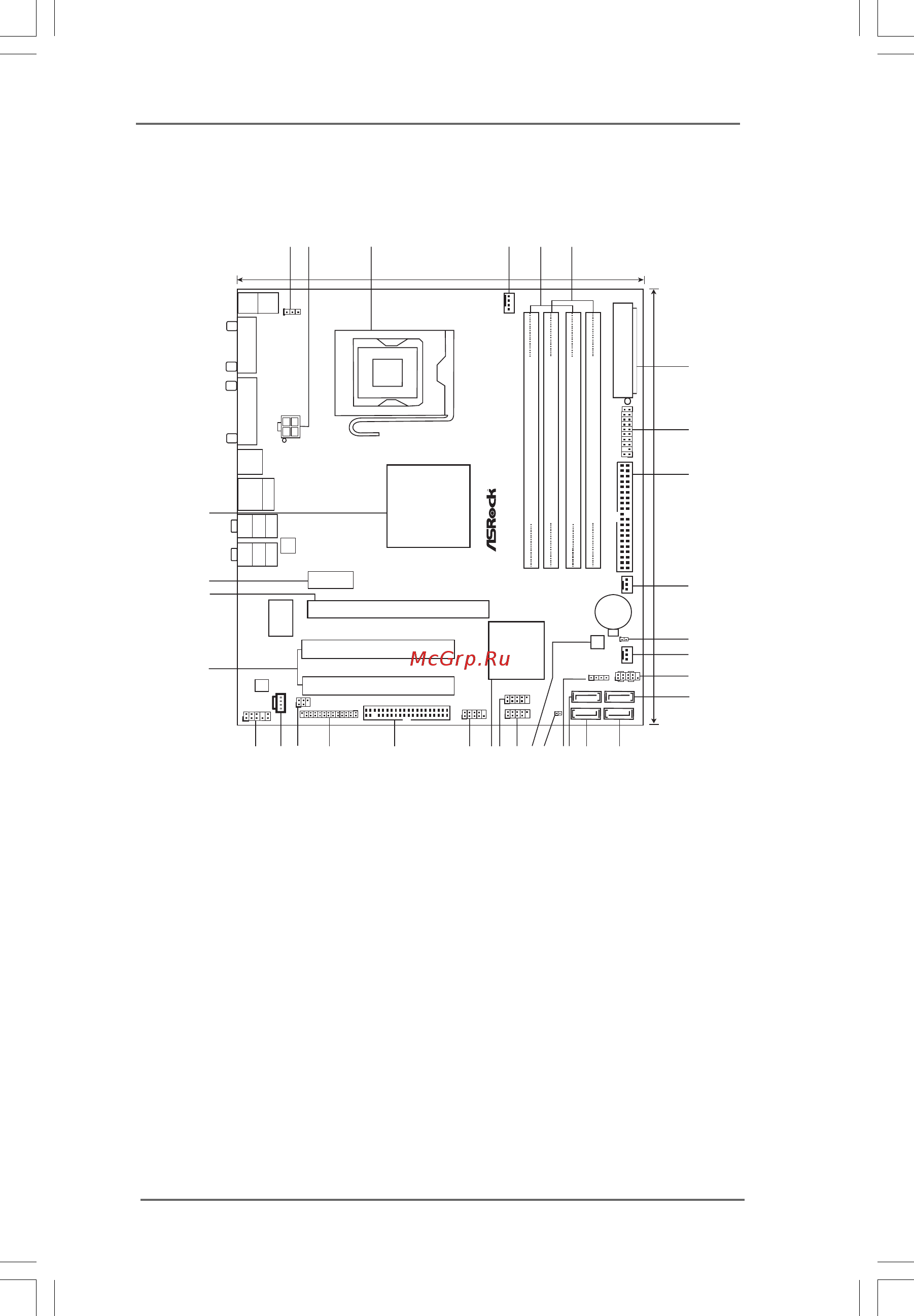

1 PS2_USB_PWR1 Jumper 18 Chassis Speaker Header (SPEAKER 1, White)
2 ATX 12V Connector (ATX12V1) 19 Chassis Intrusion Header (CI1)
3 775-Pin CPU Socket 20 BIOS SPI Chip
4 CPU Fan Connector (CPU_FAN1) 21 USB 2.0 Header (USB4_5, Blue)
5 2 x 240-pin DDR3 DIMM Slots 22 USB 2.0 Header (USB6_7, Blue)
(Dual Channel: DDR3_A1, DDR3_B1; Blue) 23 South Bridge Controller
6 2 x 240-pin DDR3 DIMM Slots 24 Serial Port Connector (COM1)
(Dual Channel: DDR3_A2, DDR3_B2; White) 25 Floppy Connector (FLOPPY1)
7 ATX Power Connector (ATXPWR1) 26 Print Port Header (LPT1, White)
8 TPM Header (TPM1) 27 Infrared Module Header (IR1)
9 IDE1 Connector (IDE1, Blue) 28 Internal Audio Connector: CD1 (Black)
10 Chassis Fan Connector (CHA_FAN1) 29 Front Panel Audio Header
11 Clear CMOS Jumper (CLRCMOS1) (HD_AUDIO1, White)
12 Power Fan Connector (PWR_FAN1) 30 PCI Slots (PCI1- 2)
13 System Panel Header (PANEL1, White) 31 PCI Express x16 Slot (PCIE2)
14 Fourth SATAII Connector (SATAII_4; Blue) 32 PCI Express x1 Slot (PCIE1)
15 Third SATAII Connector (SATAII_3; Blue) 33 North Bridge Controller
16 Primary SATAII Connector (SATAII_1; Blue)
17 Secondary SATAII Connector (SATAII_2; Blue)
Intel
G41
Chipset
Intel
ICH7
CD1
ATX12V1
1
PS2_USB_PWR1
Super
I/O
8Mb
BIOS
LAN
PHY
AUDIO
CODEC
PCIE1
CPU_FAN1
CMOS
Battery
PCI1
IDE1
SATAII_1
CLRCMOS1
1
CHA_FAN1
FLOPPY1
1
HD_AUDIO1
HDLED RESET
PLED PWRBTN
SPEAKER1
1
PANEL1
1
24.4cm (9.6 in)
21.8cm (8.6 in)
IR1
1
USB6_7
11
SATAII_3
SATAII_2
SATAII_4
PCI2
USB 2.0
T: USB 2
B: USB3
USB 2.0
T: U SB 0
B: USB1
Top:
RJ-45
PS2
Mouse
PS2
Keyboard
Top:
SIDE SPK
Center:
REAR SPK
Bottom:
CTR BASS
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
PCIE2
USB4_5
11
COM1
1
6
7
1
2
4
3
5
8
9
10
11
12
13
14
15
16
17
18
1920
21
22
23
24
25
26272829
30
ATXPWR1
DVI_CON1
VGA1
1
LPT1
G41M-GE3
FSB1333
Dual Channel DDR3 1333
DX10
RoHS
Gigabit LAN
DDR3_A1 (64 bit, 240-pin module)
DDR3_A2 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
DDR3_B2 (64 bit, 240-pin module)
PWR_FAN1
31
ErP/EuP Ready
Design in Taipei
TPM1
11
CI1
1
32
33
