ASRock G41M-GE3 Motherboard

EnglishEnglish

English

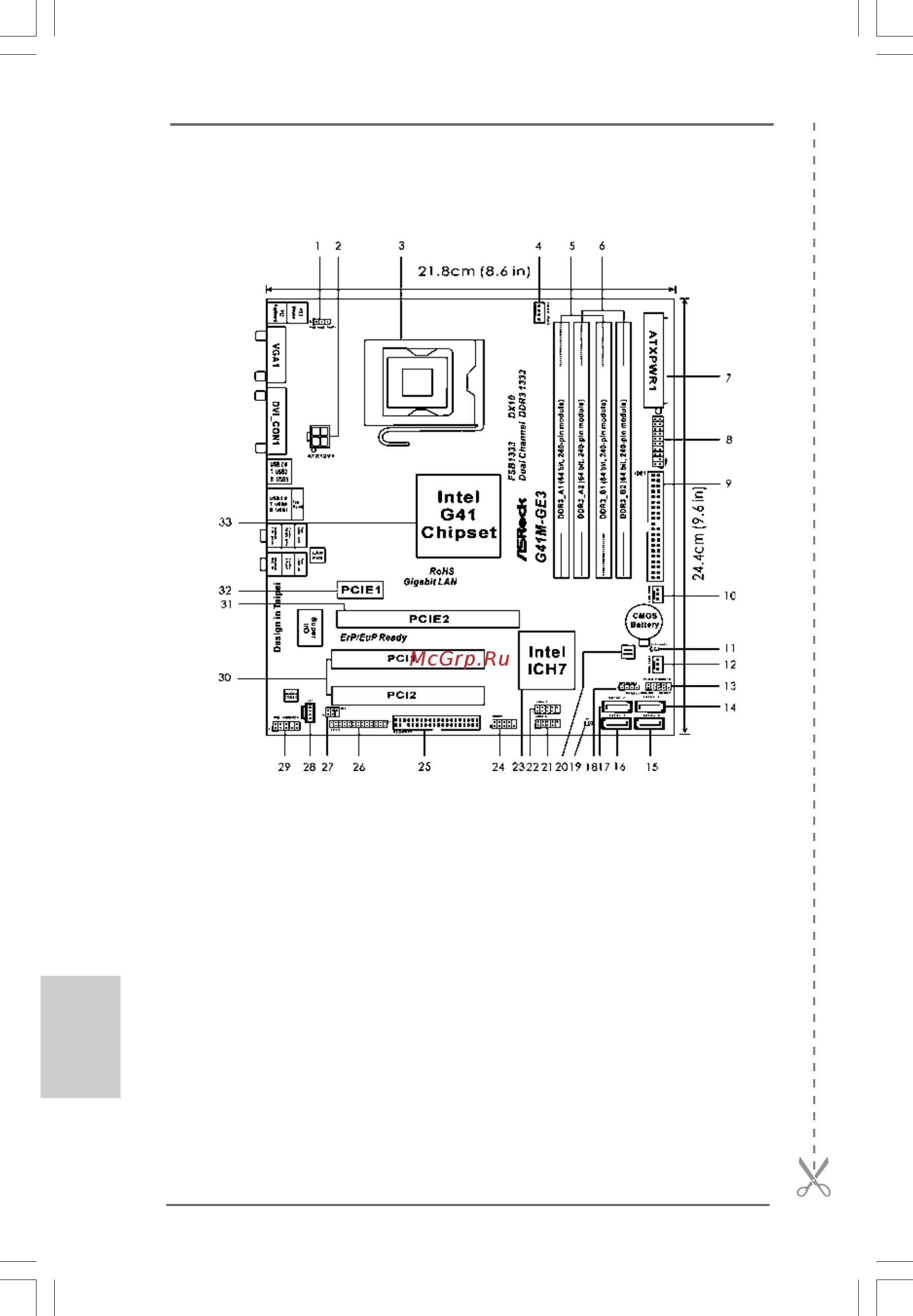

Motherboard LayoutMotherboard Layout

Motherboard Layout

1 PS2_USB_PWR1 Jumper 18 Chassis Speaker Header (SPEAKER 1, White)

2 ATX 12V Connector (ATX12V1) 19 Chassis Intrusion Header (CI1)

3 775-Pin CPU Socket 20 BIOS SPI Chip

4 CPU Fan Connector (CPU_FAN1) 21 USB 2.0 Header (USB4_5, Blue)

5 2 x 240-pin DDR3 DIMM Slots 22 USB 2.0 Header (USB6_7, Blue)

(Dual Channel: DDR3_A1, DDR3_B1; Blue) 23 South Bridge Controller

6 2 x 240-pin DDR3 DIMM Slots 24 Serial Port Connector (COM1)

(Dual Channel: DDR3_A2, DDR3_B2; White) 25 Floppy Connector (FLOPPY1)

7 ATX Power Connector (ATXPWR1) 26 Print Port Header (LPT1, White)

8 TPM Header (TPM1) 27 Infrared Module Header (IR1)

9 IDE1 Connector (IDE1, Blue) 28 Internal Audio Connector: CD1 (Black)

10 Chassis Fan Connector (CHA_FAN1) 29 Front Panel Audio Header

11 Clear CMOS Jumper (CLRCMOS1) (HD_AUDIO1, White)

12 Power Fan Connector (PWR_FAN1) 30 PCI Slots (PCI1- 2)

13 System Panel Header (PANEL1, White) 31 PCI Express x16 Slot (PCIE2)

14 Fourth SATAII Connector (SATAII_4; Blue) 32 PCI Express x1 Slot (PCIE1)

15 Third SATAII Connector (SATAII_3; Blue) 33 North Bridge Controller

16 Primary SATAII Connector (SATAII_1; Blue)

17 Secondary SATAII Connector (SATAII_2; Blue)
