1111
1111
11
1.31.3
1.31.3
1.3

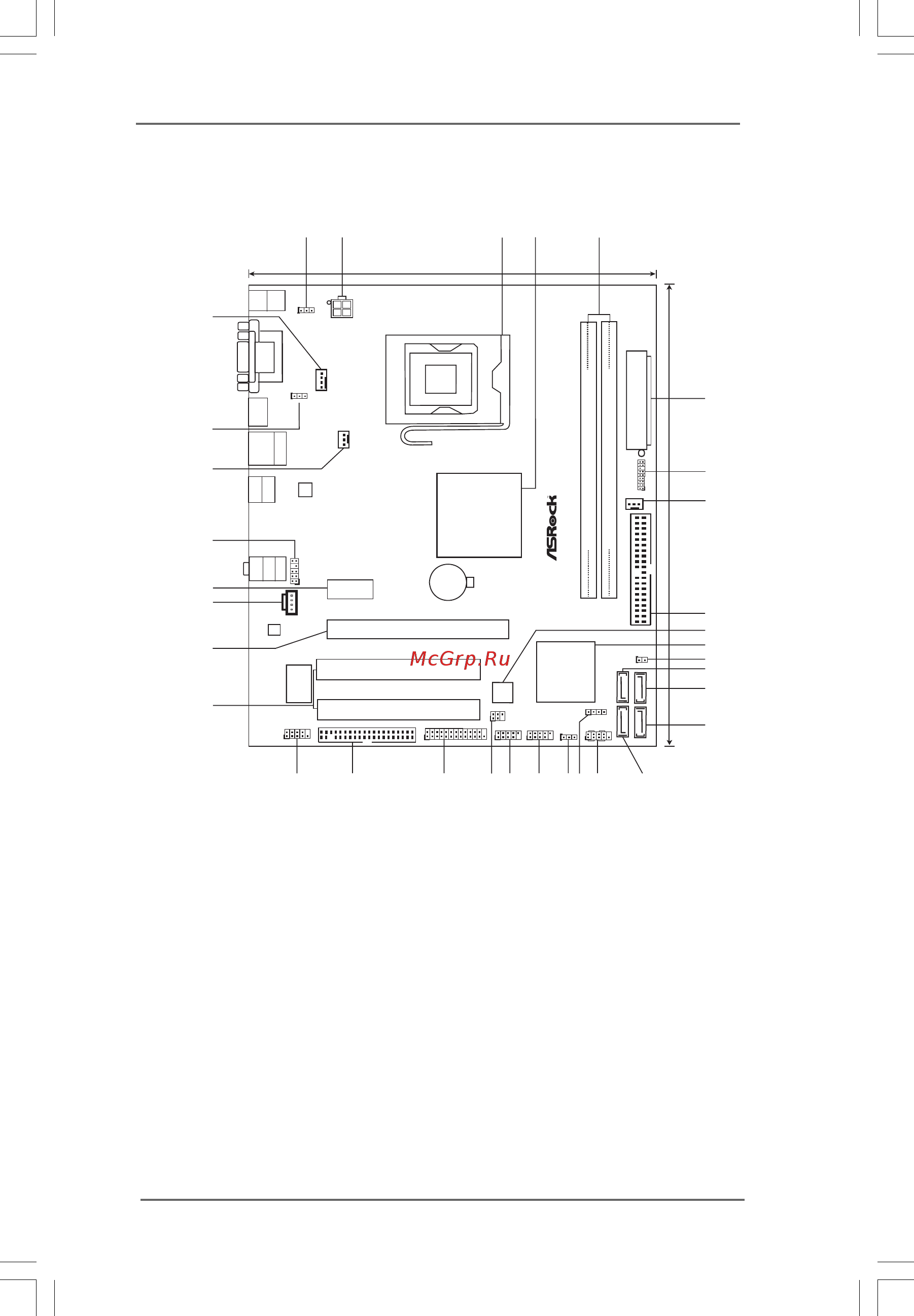

Motherboard LayoutMotherboard Layout
Motherboard LayoutMotherboard Layout
Motherboard Layout
1 PS2_USB_PWR1 Jumper 18 Chassis Speaker Header
2 ATX 12V Connector (ATX12V1) (SPEAKER 1, White)
3 775-Pin CPU Socket 19 USB_PWR3 Jumper
4 North Bridge Controller 20 USB 2.0 Header (USB6_7, Blue)
5 2 x 240-pin DDR3 DIMM Slots 21 USB 2.0 Header (USB4_5, Blue)
(Dual Channel: DDR3_A1, DDR3_B1; Blue) 22 Infrared Module Header (IR1)
6 ATX Power Connector (ATXPWR1) 23 Print Port Header (LPT1, White)
7 TPM Header (TPM1) 24 Floppy Connector (FLOPPY1)
8 Chassis Fan Connector (CHA_FAN1) 25 Serial Port Connector (COM1)
9 IDE1 Connector (IDE1, Blue) 26 PCI Slots (PCI1- 2)
10 BIOS SPI Chip 27 PCI Express x16 Slot (PCIE2)
11 South Bridge Controller 28 Internal Audio Connector: CD1 (Black)
12 Clear CMOS Jumper (CLRCMOS1) 29 PCI Express x1 Slot (PCIE1)
13 Third SATAII Connector (SATAII_3; Blue) 30 Front Panel Audio Header
14 Fourth SATAII Connector (SATAII_4; Blue) (HD_AUDIO1, White)
15 Secondary SATAII Connector (SATAII_2; Blue) 31 Power Fan Connector (PWR_FAN1)
16 Primary SATAII Connector (SATAII_1; Blue) 32 USB_PWR2 Jumper
17 System Panel Header (PANEL1, White) 33 CPU Fan Connector (CPU_FAN1)
7
8
9
10
11
12
13
Intel
G41
Chipset
Intel
ICH7
G41MH/USB3
21.3cm (8.4 in)
24.4cm (9.6 in)
DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
ATXPWR1
IDE1
8Mb
BIOS
SATAII_2
SATAII_4
SATAII_1
SATAII_3
CHA_FAN1
USB6_7
11
USB4_5
11
HDLED RESET
PLED PWRBTN
SPEAKER1
1
PANEL1
1
CMOS
Battery
CLRCMOS1
1
1
PS2_USB_PWR1
1
USB_PWR2
1
USB_PWR3
ATX12V1
CPU_FAN1
PWR_FAN1
PS2
Mouse
PS2
Keyboard
VGA1
DVI_CON1
HDMI1
USB 2.0
T: USB0
B: USB1
Top:
RJ-45
USB 2.0: USB2
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
LAN
PHY
IR1
1
1
LPT1
COM1
1
CD1
1
HD_AUDIO1
FLOPPY1
Super
I/O
AUDIO
CODEC
PCIE1
PCI1
PCI2
PCIE2
DX10
RoHS
FSB1333
Dual Channel
ErP/EuP Ready
DDR3 1333
Designed in Taipei
Gigabit LAN
6
1
2
4
3
5
14
15
16
17
18
1920
2122
23
24
25
26
27
28
29
30
31
32
USB 3.0: USB3
1
TPM1
33
