ASRock G41MH/USB3 Motherboard

EnglishEnglish

English

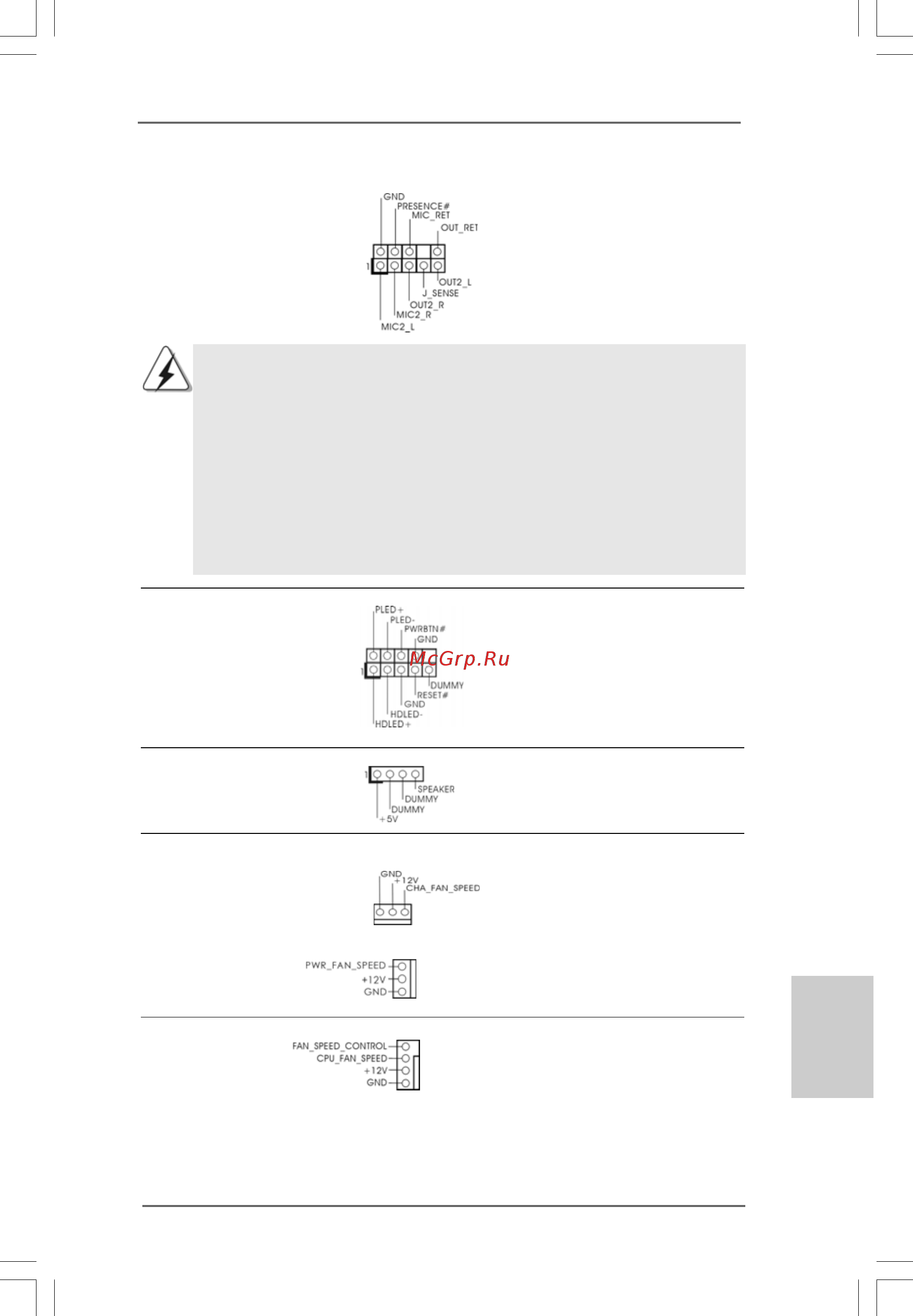

System Panel Header This header accommodates

(9-pin PANEL1) several system front panel

(see p.2 No. 17) functions.

Chassis Speaker Header Please connect the chassis

(4-pin SPEAKER 1) speaker to this header.

(see p.2 No. 18)

CPU Fan Connector Please connect a CPU fan cable

(4-pin CPU_FAN1) to this connector and match

(see p.2 No. 33) the black wire to the ground pin.

Chassis and Power Fan Connectors Please connect the fan cables

(3-pin CHA_FAN1) to the fan connectors and

(see p.2 No. 8) match the black wire to the

ground pin.

(3-pin PWR_FAN1)

(see p.2 No. 31)

Front Panel Audio Header This is an interface for front

(9-pin HD_AUDIO1) panel audio cable that allows

(see p.2 No. 30) convenient connection and

control of audio devices.

1. High Definition Audio supports Jack Sensing, but the panel wire on

the chassis must support HDA to function correctly. Please follow the

instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio

header as below:

A. Connect Mic_IN (MIC) to MIC2_L.

B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

C. Connect Ground (GND) to Ground (GND).

D. MIC_RET and OUT_RET are for HD audio panel only. You don’t

need to connect them for AC’97 audio panel.
