ASRock G41M-GS3 / G41M-S3 Motherboard

EnglishEnglish

English

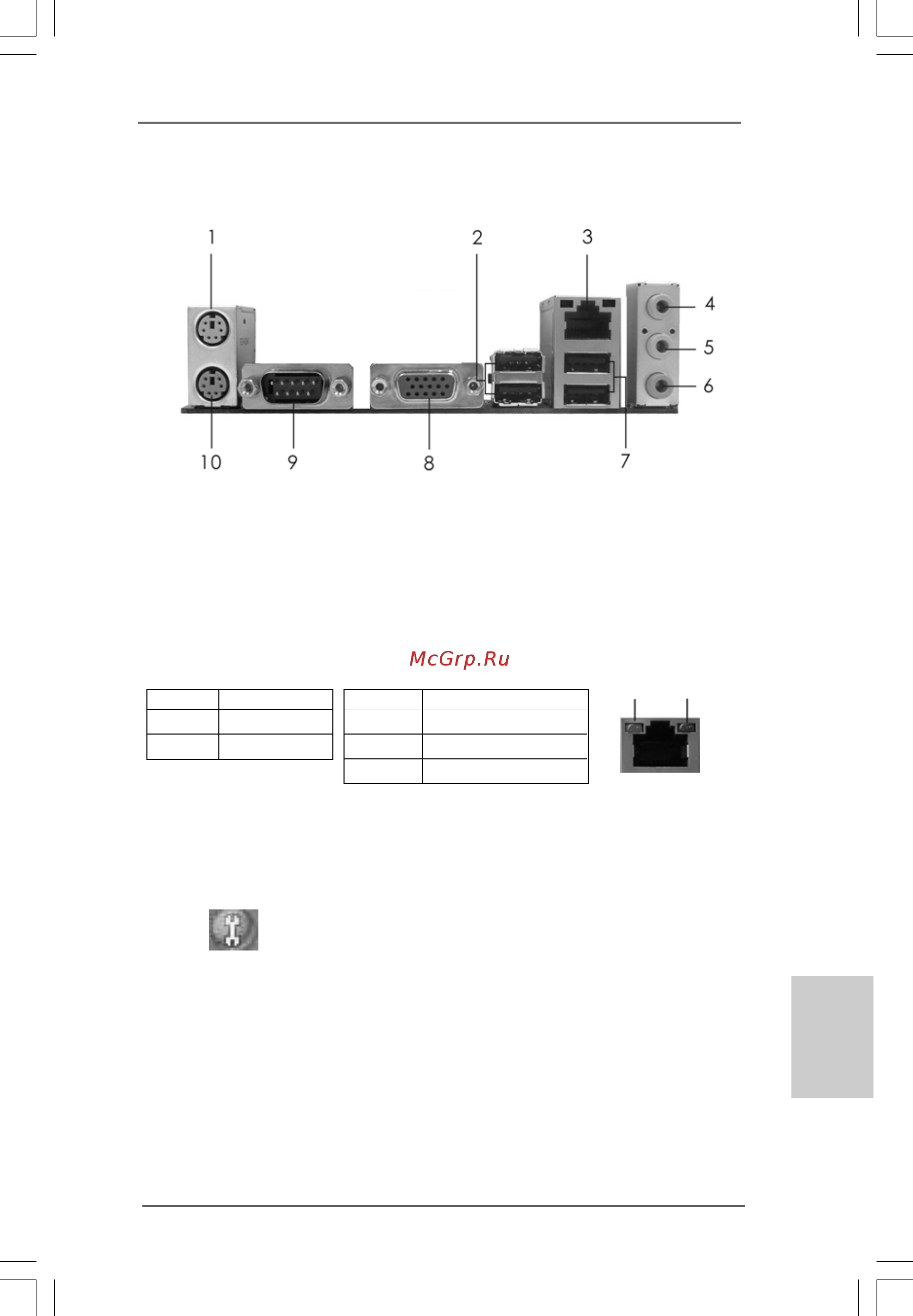

I/O PI/O P

I/O P

anelanel

anel

1 PS/2 Mouse Port (Green) 6 Microphone (Pink)

2 USB 2.0 Ports (USB23) 7 USB 2.0 Ports (USB01)

3 RJ-45 Port 8 VGA Port

4 Line In (Light Blue) 9 COM Port

5 Line Out (Lime) 10 PS/2 Keyboard Port (Purple)

* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. Please refer to below steps for the software setting of Multi-Streaming.

For Windows

XP:

After restarting your computer, you will find “Mixer” tool on your system. Please select “Mixer

ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or

“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker

and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then

reboot your system.

For Windows

7 / Vista

After restarting your computer, please double-click “Realtek HD Audio Manager” on the

system tray. Set “Speaker Configuration” to “Quadraphonic” or “Stereo”. Click “Device

advanced settings”, choose “Make front and rear output devices playbacks two different audio

streams simultaneously”, and click “ok”. Then reboot your system.

* For G41M-GS3 motherboard, please refer to the table below for the LAN port LED indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Activity Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

Green 1Gbps connection

LAN Port

ACT/LINK

LED

SPEED

LED
