ASRock G41MH/USB3 R2.0 Motherboard

EnglishEnglish

English

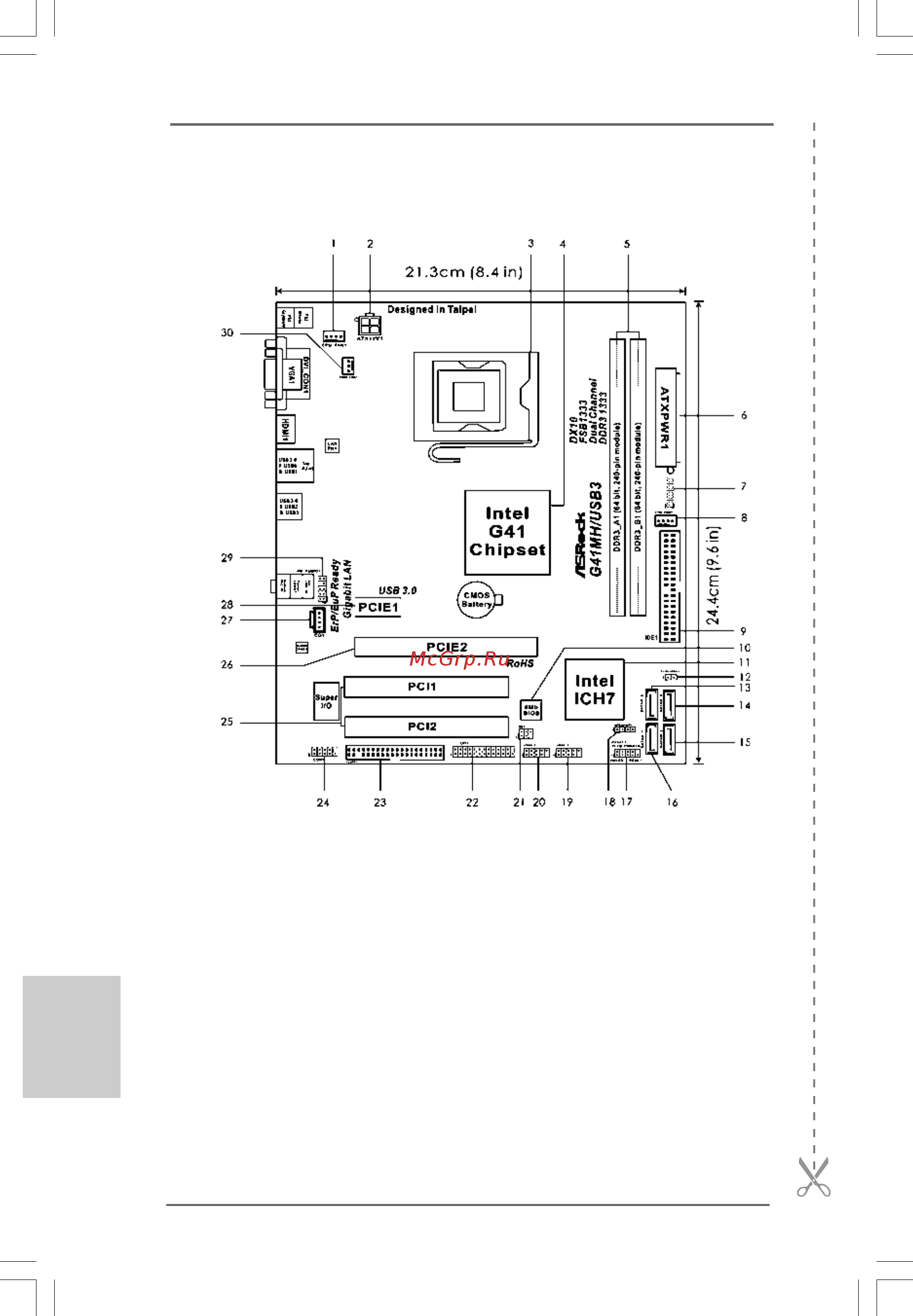

Motherboard LayoutMotherboard Layout

Motherboard Layout

1 CPU Fan Connector (CPU_FAN1) 17 System Panel Header (PANEL1, White)

2 ATX 12V Connector (ATX12V1) 18 Chassis Speaker Header

3 775-Pin CPU Socket (SPEAKER 1, White)

4 North Bridge Controller 19 USB 2.0 Header (USB6_7, Blue)

5 2 x 240-pin DDR3 DIMM Slots 20 USB 2.0 Header (USB4_5, Blue)

(Dual Channel: DDR3_A1, DDR3_B1; Blue) 21 Infrared Module Header (IR1)

6 ATX Power Connector (ATXPWR1) 22 Print Port Header (LPT1, White)

7 TPM Header (TPM1) 23 Floppy Connector (FLOPPY1)

8 Chassis Fan Connector (CHA_FAN1) 24 Serial Port Connector (COM1)

9 IDE1 Connector (IDE1, Blue) 25 PCI Slots (PCI1- 2)

10 BIOS SPI Chip 26 PCI Express x16 Slot (PCIE2)

11 South Bridge Controller 27 Internal Audio Connector: CD1 (Black)

12 Clear CMOS Jumper (CLRCMOS1) 28 PCI Express x1 Slot (PCIE1)

13 Third SATAII Connector (SATAII_3; Blue) 29 Front Panel Audio Header

14 Fourth SATAII Connector (SATAII_4; Blue) (HD_AUDIO1, White)

15 Secondary SATAII Connector (SATAII_2; Blue) 30 Power Fan Connector (PWR_FAN1)

16 Primary SATAII Connector (SATAII_1; Blue)
