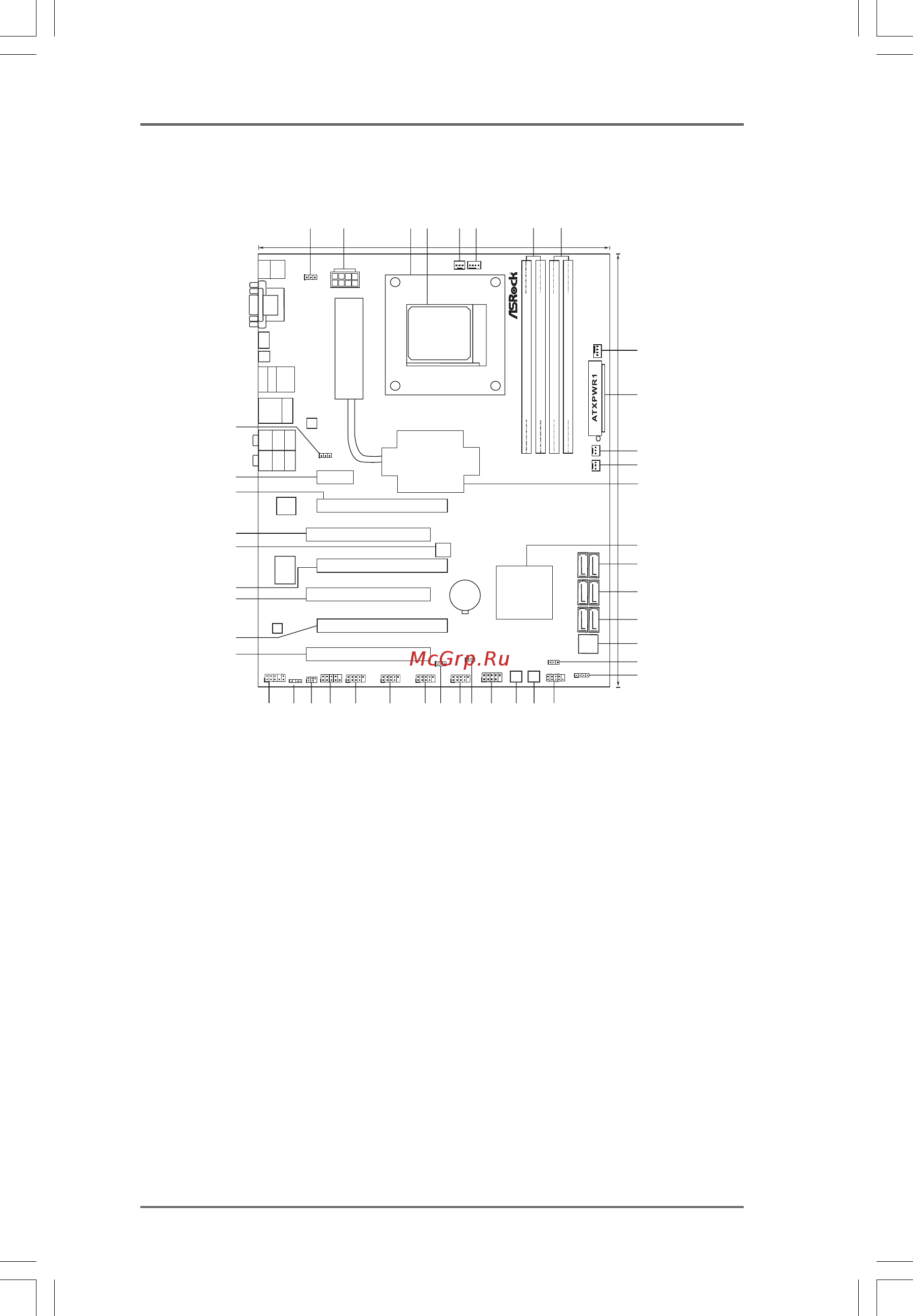

1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout
SOCKET AM3
FSB800
DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
FSB800
DDR3_A2 (64 bit, 240-pin module)
DDR3_B2 (64 bit, 240-pin module)
AMD
SB850
Chipset
PS2_USB_PW1
1
ATX12V1
8Mb
BIOS
CMOS
BATTERY
CLRCMOS1
1
COM1
LAN
PHY
1
AUDIO
CODEC
Super
I/O
IR1
1
HD_AUDIO1
1
PCIE1
1
HDMI_SPDIF1
HDLED RESET
PLED PWRBTN
1
PANEL1
CHA_FAN2
SPEAKER1
1
HT3.0
140W CPU
24.4cm (9.6-in)
30.5cm (12.0-in)
6
7
1
2
4
3
5
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
2627
28
2930
31
32
33
PCIE2
PCI1
880G Extreme3
DDR3 1800
Six-Core CPU Ready
ErP/EuP Ready
Phenom II
USB6_7
1
PWR_FAN1
34
AM3
35
USB_PW2
1
1
PLED1
USB_PW3
1
SATA3_5_6
NEC USB 3.0
SATA3 6Gb/s
36
37
38
39
Designed in Taipei
AMD
880G
Chipset
SATA3_3_4
SATA3_1_2
PCIE3
PCIE4
PCI2
PCI3
USB8_9
1
USB10_11
1
USB12_13
1
CHA_FAN3
FRONT_1394
11
PWRBTN
RSTBTN
Dr.
Debug
CPU_FAN1
USB 2.0
T: U SB 4
B: USB5
PS2
Keyboard
VGA1
DVI_CON1
HDMI1
Clr
CMOS
Top:
CTR BASS
Center:
REAR SPK
Bottom:
Optical
SPDIF
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
RJ-45 LAN
eSATA2
IEEE 1394
USB 2.0
T: U SB 2
B: USB3
USB 3.0
T: U SB 0
B: USB1
CHA_FAN1
NEC
MPD720200
1394a
RoHS
PCI Express 2.0
Sideport memory 128MB
Dual Channel
FSB2.6GHz
40
41
42
43
1 PS2_USB_PW1 Jumper 23 Power Switch (PWRBTN)
2 ATX 12V Power Connector (ATX12V1) 24 Front Panel IEEE 1394 Header
3 CPU Heatsink Retention Module (FRONT_1394, White)
4 AM3 CPU Socket 25 Clear CMOS Jumper (CLRCMOS1)
5 Power Fan Connector (PWR_FAN1) 26 USB 2.0 Header (USB12_13, Blue)
6 CPU Fan Connector (CPU_FAN1) 27 USB_PW3 Jumper
7 2 x 240-pin DDR3 DIMM Slots 28 USB 2.0 Header (USB10_11, Blue)
(Dual Channel A: DDR3_A1, DDR3_B1; Blue) 29 USB 2.0 Header (USB8_9, Blue)
8 2 x 240-pin DDR3 DIMM Slots 30 USB 2.0 Header (USB6_7, Blue)
(Dual Channel B: DDR3_A2, DDR3_B2; White) 31 Serial Port Connector (COM1)
9 Chassis Fan Connector (CHA_FAN1) 32 Infrared Module Header (IR1)
10 ATX Power Connector (ATXPWR1) 33 HDMI_SPDIF Header
11 Chassis Fan Connector (CHA_FAN2) (HDMI_SPDIF1, White)
12 Chassis Fan Connector (CHA_FAN3) 34 Front Panel Audio Header
13 Northbridge Controller (HD_AUDIO1, White)
14 Southbridge Controller 35 PCI Slot (PCI3)
15 SATA3 Connector (SATA3_5_6, White) 36 PCI Express 2.0 x16 Slot (PCIE4; White)
16 SATA3 Connector (SATA3_3_4, White) 37 PCI Slot (PCI2)
17 SATA3 Connector (SATA3_1_2, White) 38 PCI Express 2.0 x16 Slot (PCIE3; Blue)
18 Dr. Debug (LED) 39 SPI Flash Memory (8Mb)
19 Power LED Header (PLED1) 40 PCI Slot (PCI1)
20 Chassis Speaker Header (SPEAKER 1, White) 41 PCI Express 2.0 x16 Slot (PCIE2; Blue)
21 System Panel Header (PANEL1, White) 42 PCI Express 2.0 x1 Slot (PCIE1; White)
22 Reset Switch (RSTBTN) 43 USB_PW2 Jumper
